On-Vehicle Inspection

  1. INSPECT ACCELERATOR PEDAL ROD
    NOTE:
    • Do not remove the accelerator pedal position sensor from the accelerator pedal.
    • Perform the inspection on the hybrid vehicle control ECU side of the connector.
    1. Turn the power switch ON (IG).
    2. Using a voltmeter, measure the voltage between the terminals.

      Standard voltage

      TERMINALS VOLTAGE SPECIFICATION

      Tester Connection Measuring Condition Specified Condition
      B-25 (VCP) - B-27 (EP1) Normal 4.5 to 5.5 V
      B-26 (VPA1) - B-27 (EP1) Do not depress the accelerator pedal 0.5 to 1.1 V
      B-26 (VPA1) - B-27 (EP1) Gradually depress the accelerator pedal The voltage increases slowly
      B-26 (VPA1) - B-27 (EP1) Fully depress the accelerator pedal 2.6 to 4.5 V
      B-33 (VCP2) - B-35 (EP2) Normal 4.5 to 5.5 V
      B-34 (VPA2) - B-35 (EP2) Do not depress the accelerator pedal 1.2 to 2.0 V
      B-34 (VPA2) - B-35 (EP2) Gradually depress the accelerator pedal The voltage increases slowly
      B-34 (VPA2) - B-35 (EP2) Fully depress the accelerator pedal 3.4 to 5.3 V

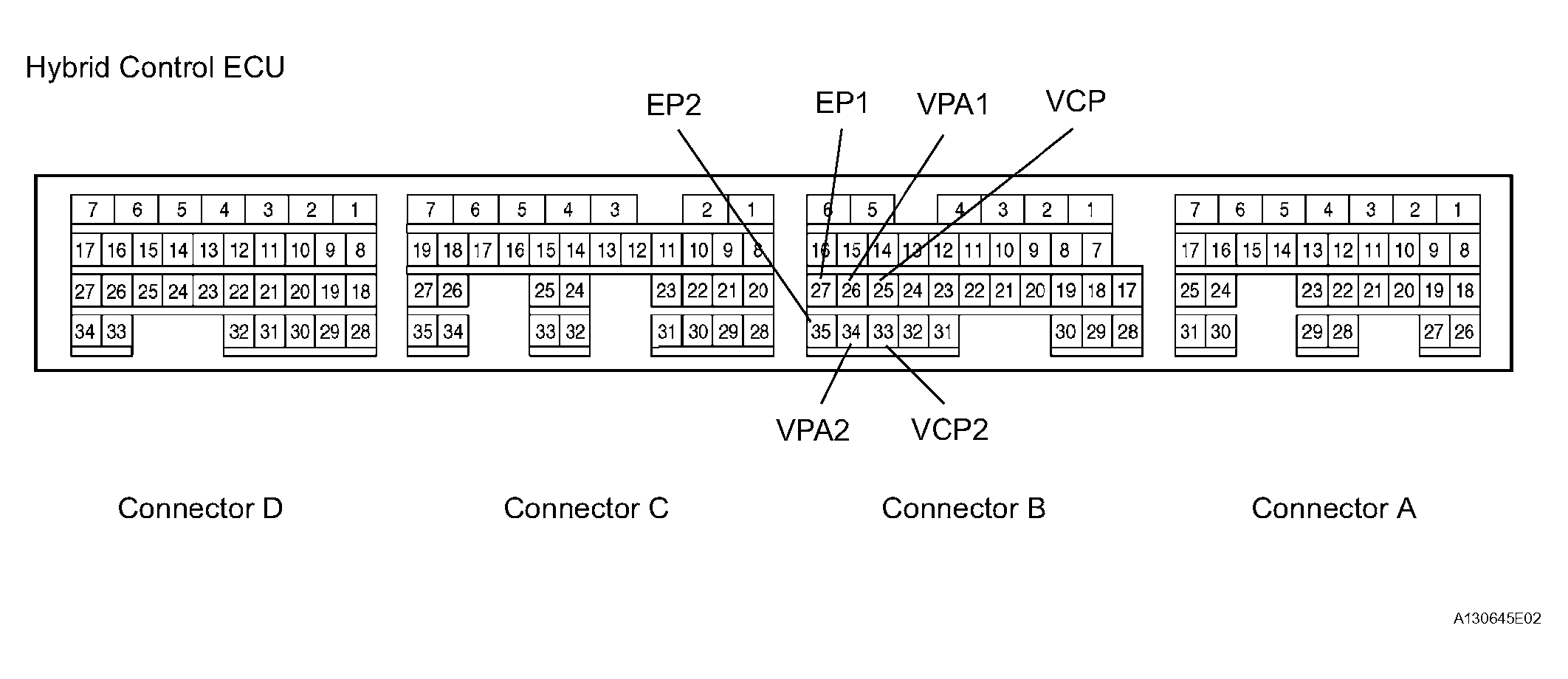

      Fig 1: Identifying Hybrid Vehicle Control ECU Connectors
      G04473805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      If the standards are not met, replace the accelerator pedal rod.
