DTC P3222-313 Generator Inverter Temperature Sensor Circuit High / Low; DTC P3223-312 Generator Inverter Temperature Sensor Circuit High: Wiring Diagram

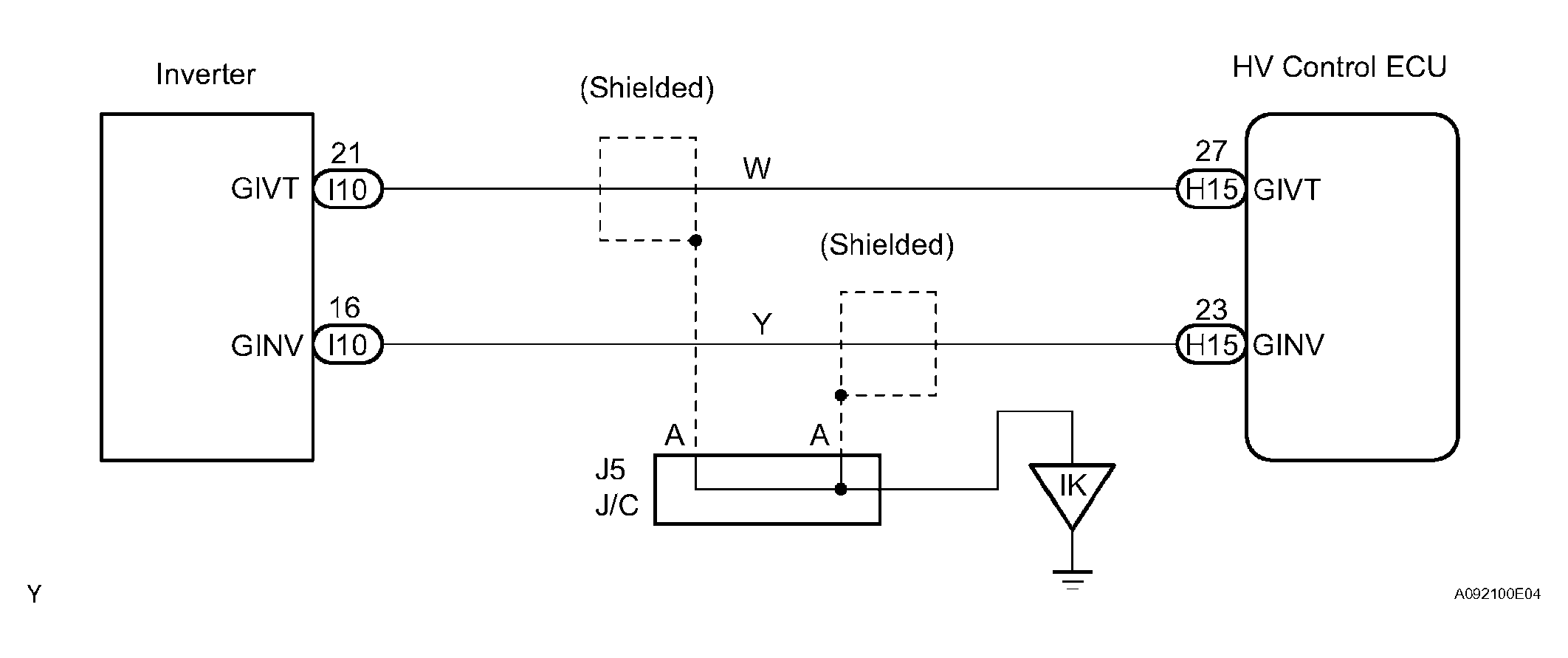

Fig 1: Generator Inverter Temperature Sensor - Wiring Diagram
G04473694Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
