DTC P3137-348 Collision Sensor Low Input; DTC P3138-349 Collision Sensor High Input: Wiring Diagram

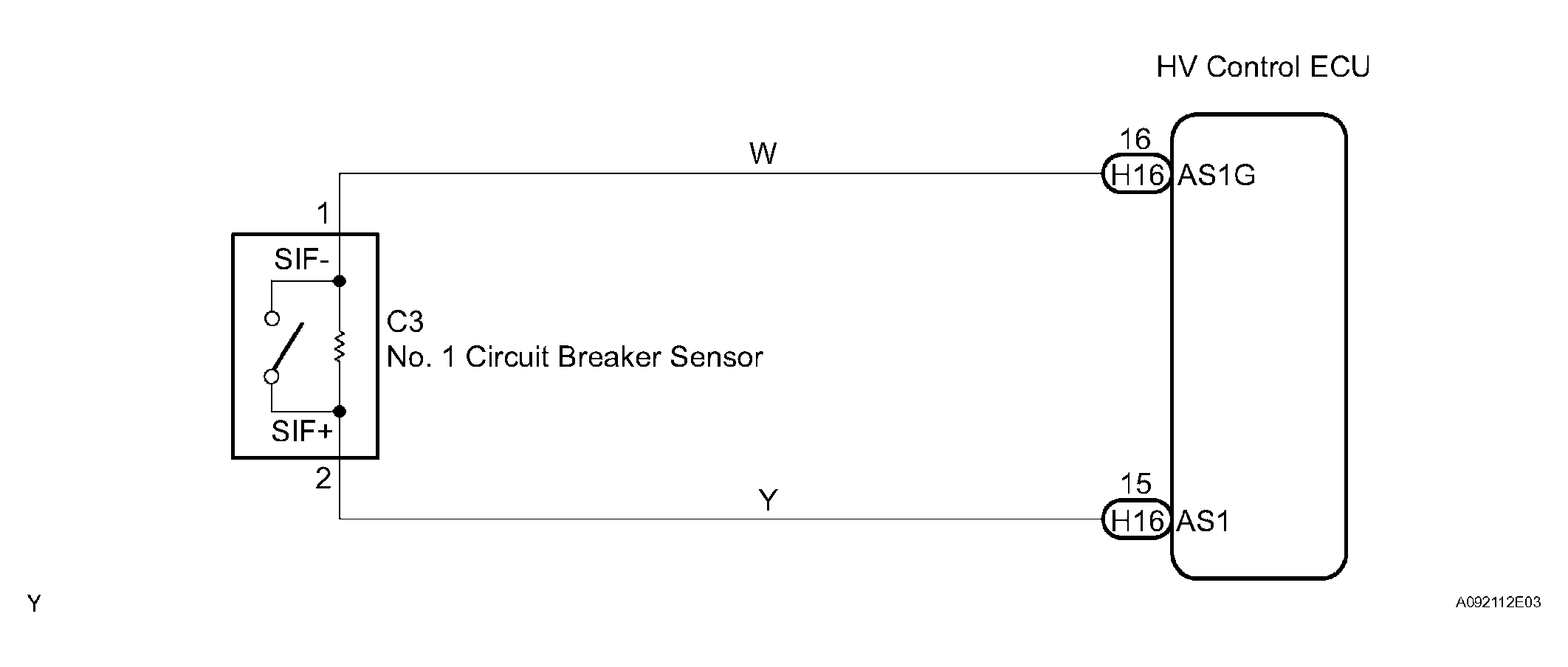

Fig 1: Collision Sensor - Wiring Diagram

G04473685

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
