DTC P3110-223 IGCT Relay Malfunction; DTC P3110-527 HV Main Relay Malfunction: Wiring Diagram

Refer to the wiring diagram for the IG2 relay (see DTC P0A1F-593 BATTERY ENERGY CONTROL MODULE ).

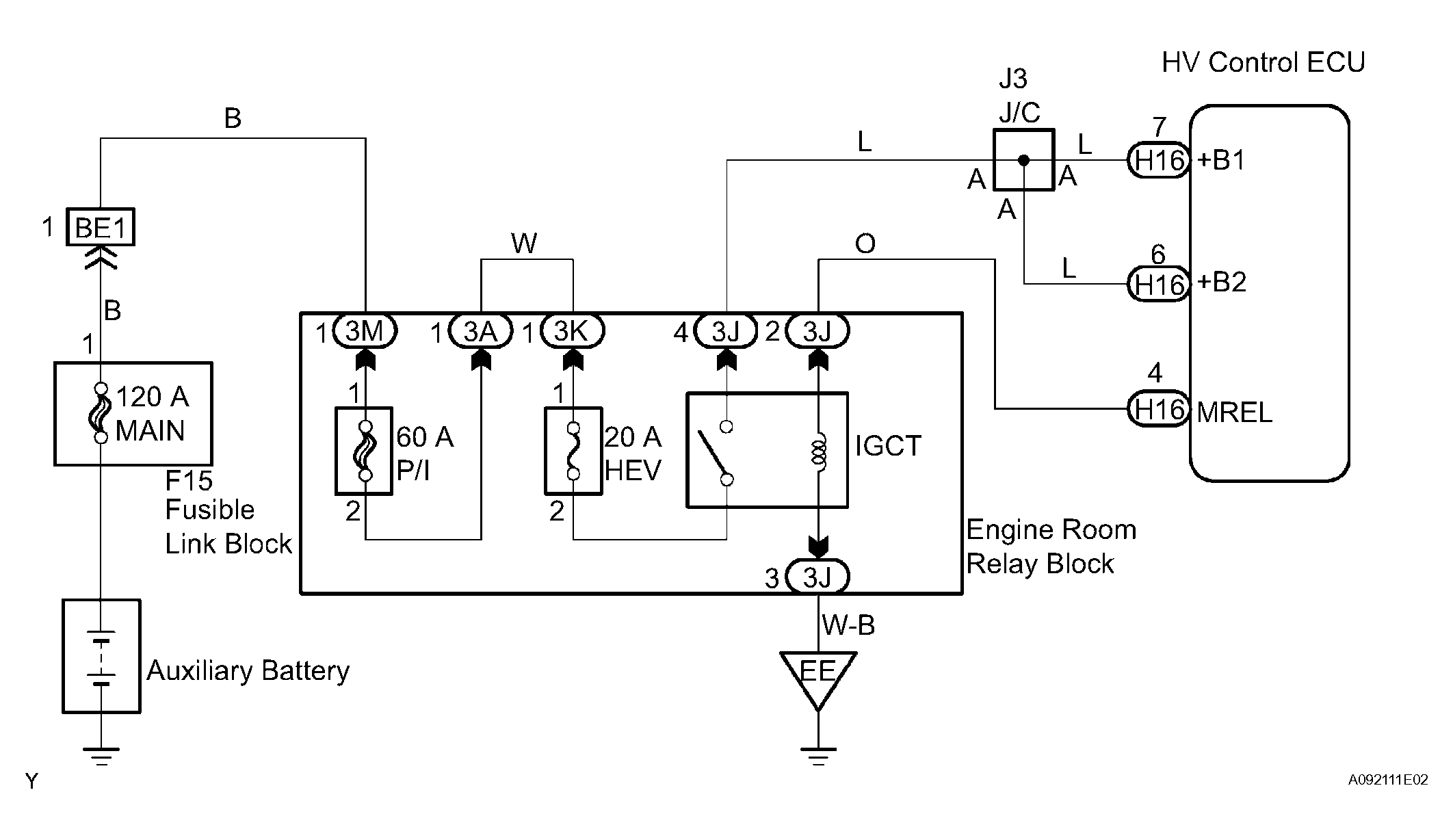

Fig 1: IGCT Relay - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
