DTC P3107-213 Airbag ECU Communication Circuit Malfunction; DTC P3107-214 Airbag ECU Communication Circuit Malfunction; DTC P3107-215 Airbag ECU Communication Circuit Malfunction: Wiring Diagram

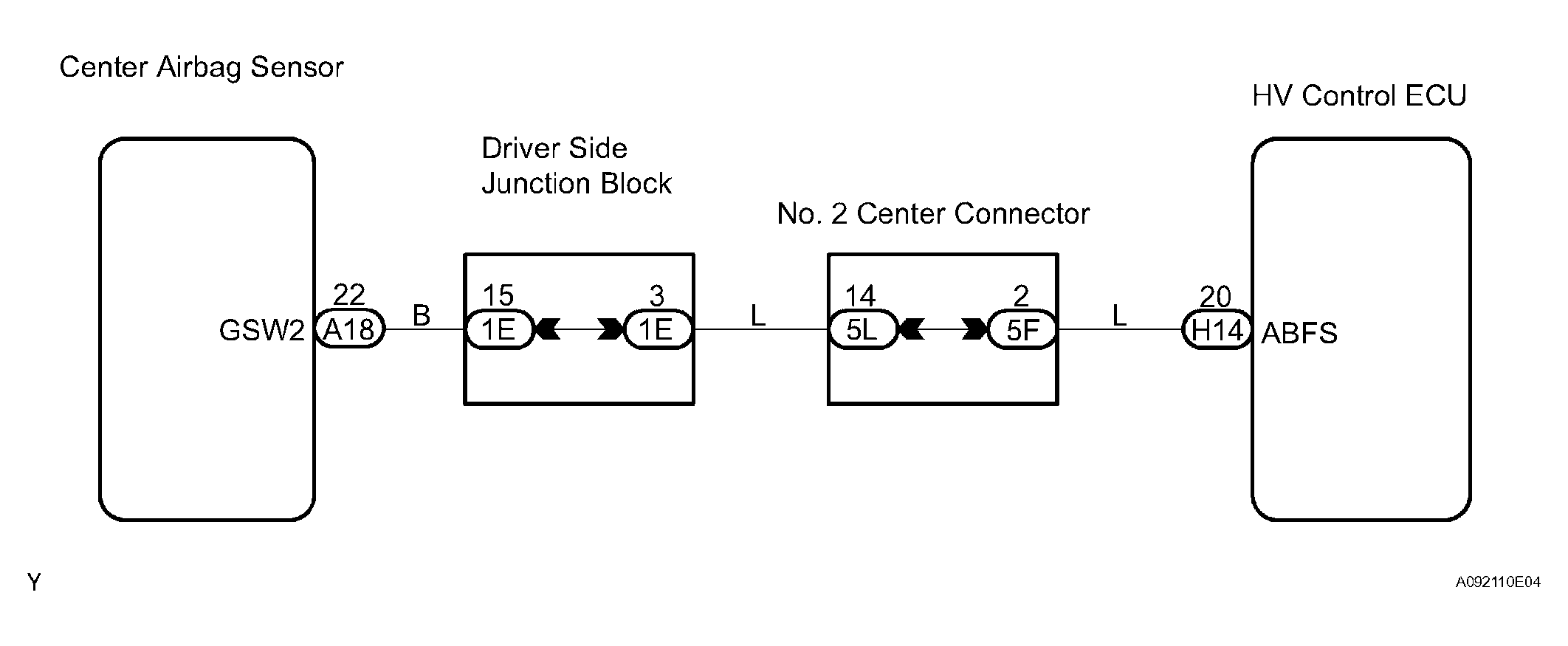

Fig 1: Airbag ECU Communication Circuit - Wiring Diagram
G04473677Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
