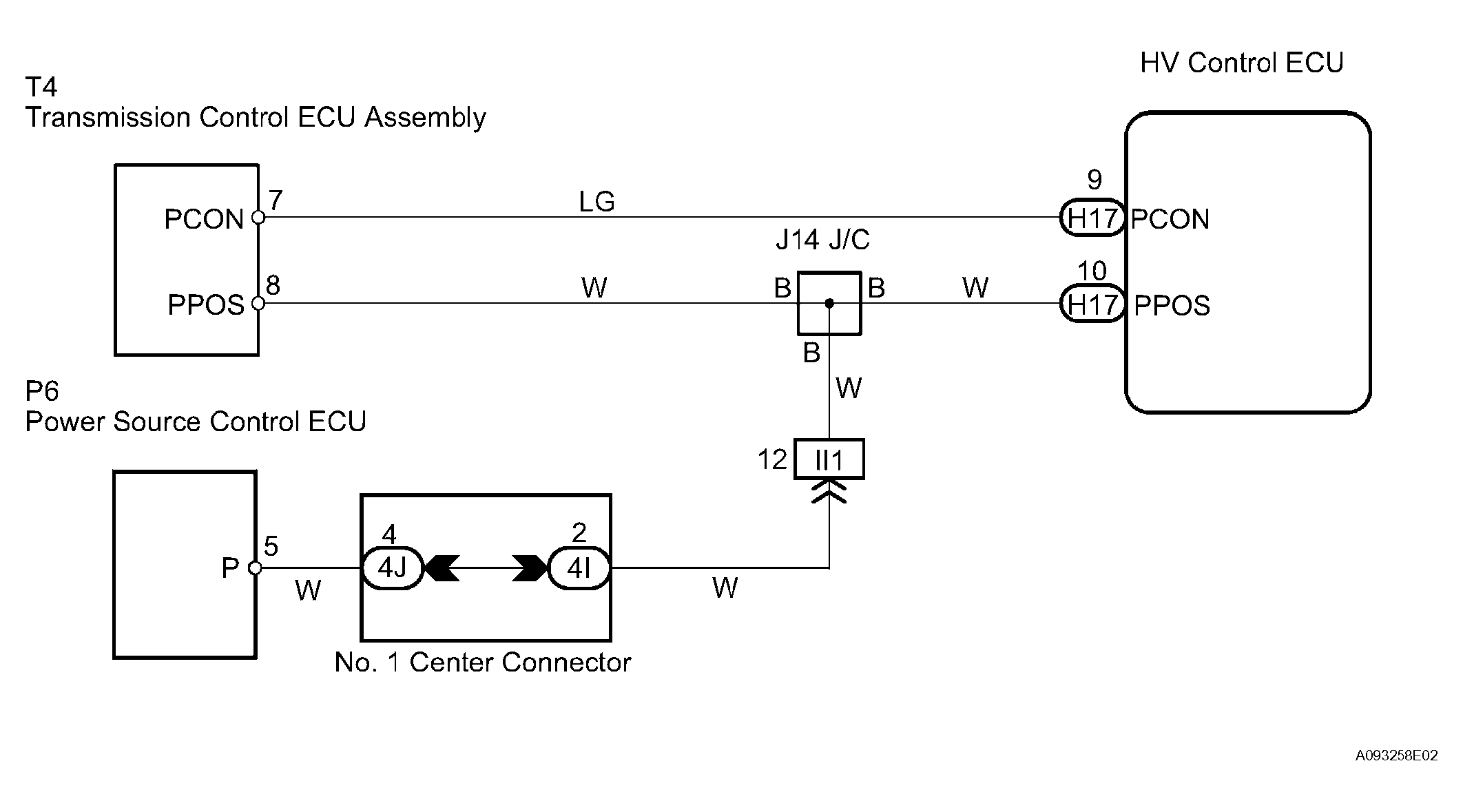

DTC P3102-524 Transmission Control ECU Malfunction; DTC P3102-525 Transmission Control ECU Malfunction; DTC P3102-581 Transmission Control ECU Malfunction; DTC P3102-582 Transmission Control ECU Malfunction; DTC P3102-597 Transmission Control ECU Malfunction; DTC P3102-598 Transmission Control ECU Malfunction; DTC P3102-599 Transmission Control ECU Malfunction: Wiring Diagram
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
