DTC P0AEF-275 Drive Motor Inverter Temperature Sensor "A" Circuit Low; DTC P0AF0-274 Drive Motor Inverter Temperature Sensor "A" Circuit High: Wiring Diagram

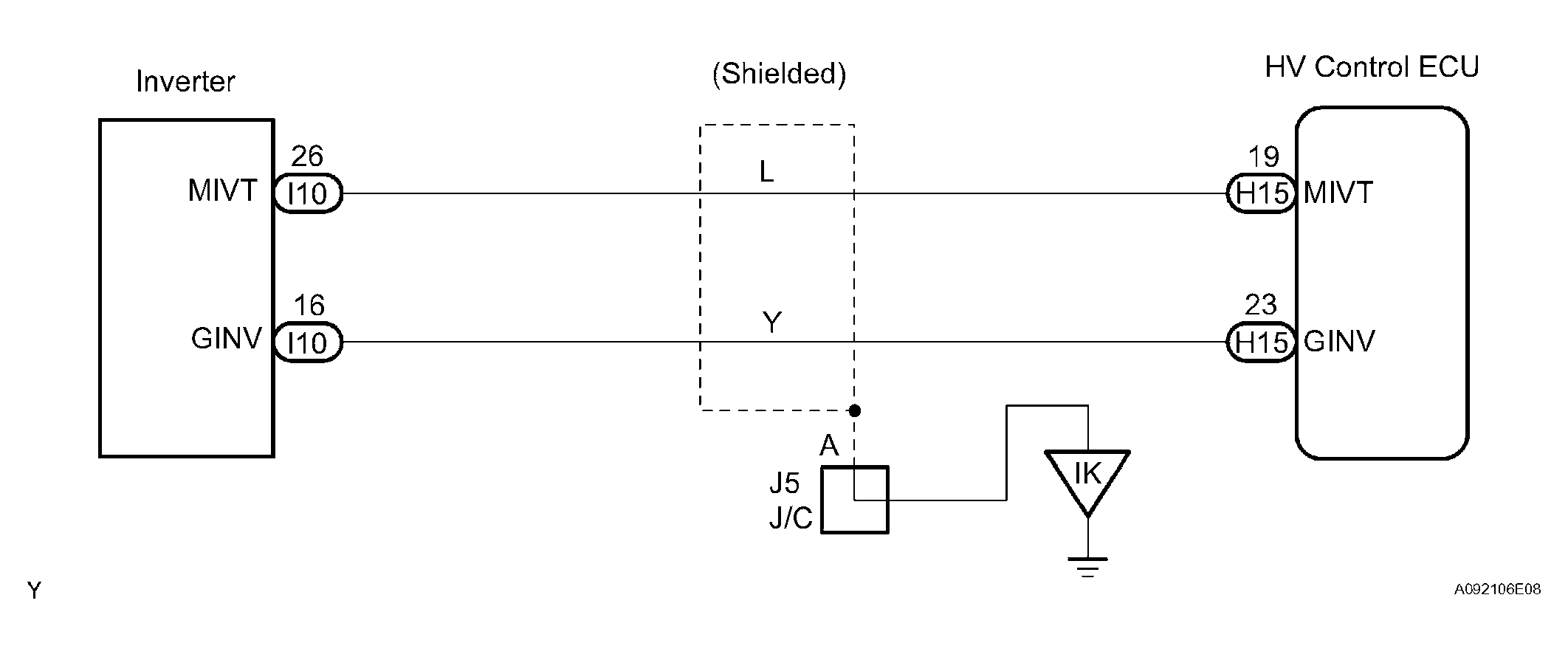

Fig 1: Drive Motor Inverter Temperature Sensor - Wiring Diagram
G04473638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
