DTC P0AE7-224 Hybrid Battery Precharge Contractor Control Circuit High; DTC P0AE6-225 Hybrid Battery Precharge Contractor Control Circuit Low: Wiring Diagram

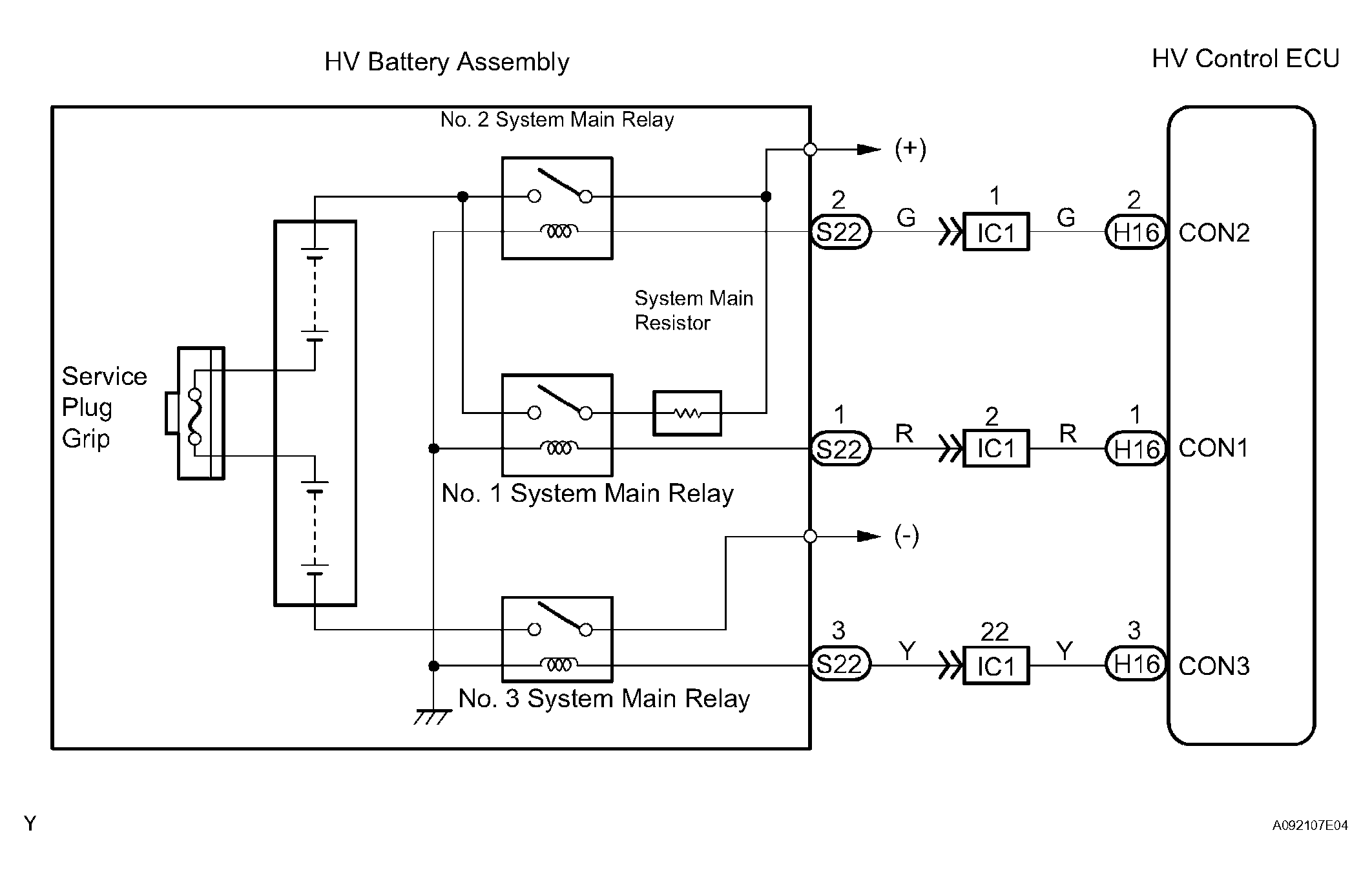

Fig 1: Hybrid Battery Precharge Contractor Control Circuit - Wiring Diagram

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
