DTC P0A94-588 DC / DC Converter Performance: Wiring Diagram

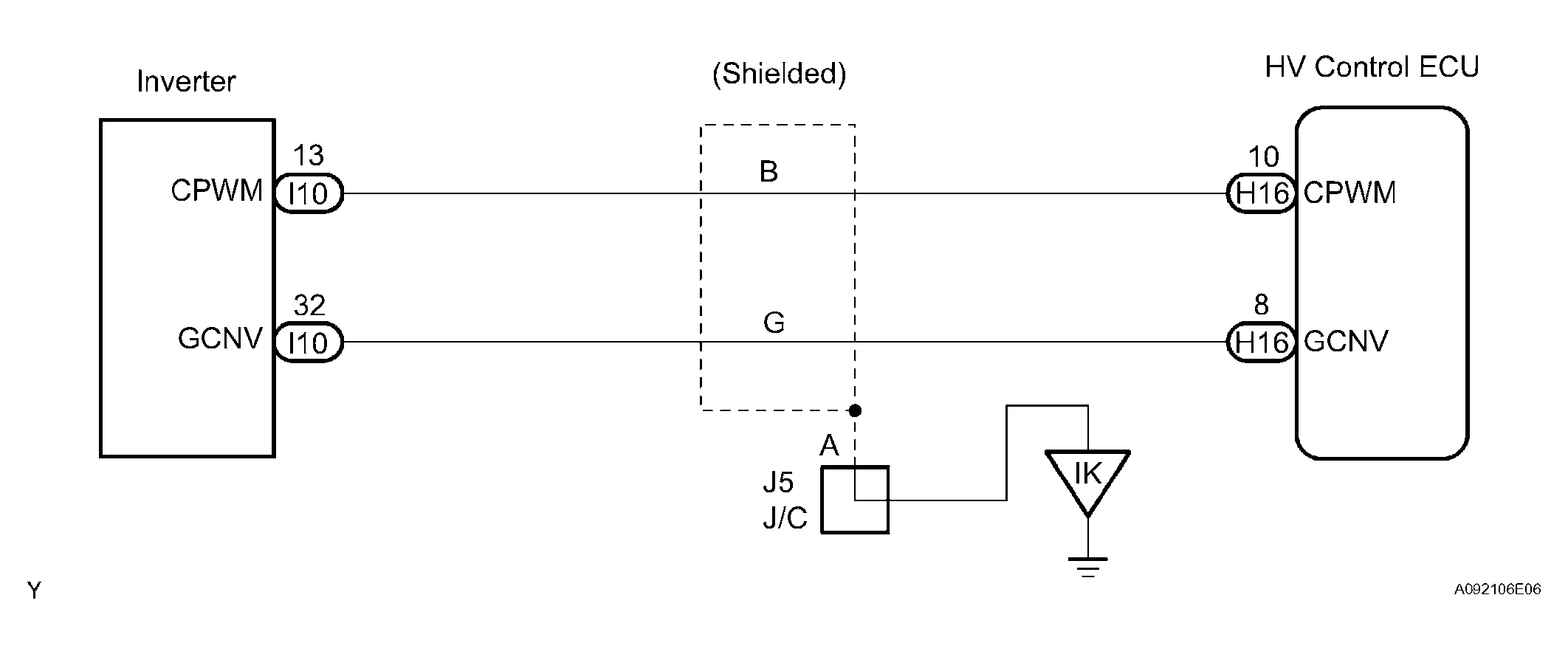

Fig 1: DC/DC Converter Performance - Wiring Diagram

G04473583

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
