HV Battery: Reassembly

INSTALL BATTERY ROOM VENTILATION HOSE
CAUTION: Wear insulating gloves and protective glasses.
INSTALL NO. 2 FRAME WIRE (See REMOVAL )
INSTALL NO. 2 BATTERY SPACER
CAUTION: Wear insulating gloves and protective glasses.

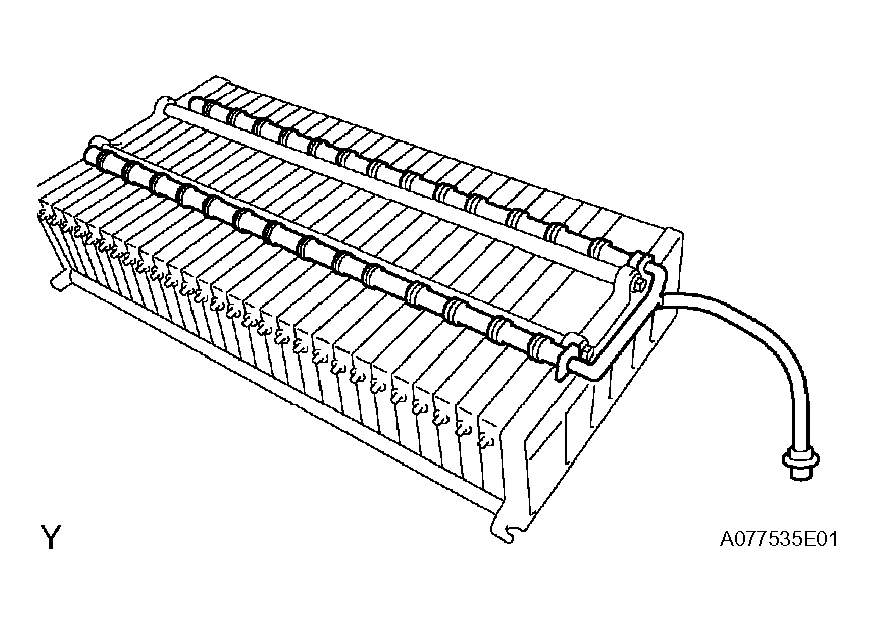

Fig 1: Installing Battery Room Ventilation Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL UPPER BATTERY CARRIER
CAUTION: Wear insulating gloves and protective glasses.
1. Install the upper battery carrier with the 3 nuts.
  Torque: 5.5 N*m (56 kgf*cm, 49 in.*lbf)
INSTALL BATTERY ECU (See REMOVAL )
INSTALL NO. 1 SYSTEM MAIN RELAY (See INSTALLATION )
INSTALL SYSTEM MAIN RESISTOR (See REMOVAL )

Fig 2: Installing Upper Battery Carrier
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 3 SYSTEM MAIN RELAY (See INSTALLATION )
INSTALL NO. 2 SYSTEM MAIN RELAY (See INSTALLATION )
INSPECT CONTACT CONDITION (See INSTALLATION )
INSTALL JUNCTION BLOCK (See REMOVAL )
INSTALL BATTERY PLUG (See INSTALLATION )
INSTALL NO. 1 WIRE HARNESS PROTECTOR COVER (See INSTALLATION )
INSTALL BATTERY CLAMP PAD (See INSTALLATION )
INSTALL NO. 4 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.
INSTALL NO. 2 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.
INSTALL BATTERY CURRENT SENSOR (See INSTALLATION )
INSTALL NO. 2 MAIN BATTERY CABLE (See INSTALLATION )
INSTALL MAIN BATTERY CABLE (See INSTALLATION )
INSTALL NO. 3 BATTERY CARRIER CUSHION (See INSTALLATION )
INSTALL NO. 3 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.
INSTALL NO. 1 WIRE HARNESS PROTECTOR COVER
CAUTION: Wear insulating gloves.
INSTALL BATTERY COVER
CAUTION: Wear insulating gloves.
1. Temporarily fasten the battery carrier catch bracket to the battery room ventilation hose.
2. Install the battery cover with the 6 bolts, 2 nuts and clip.

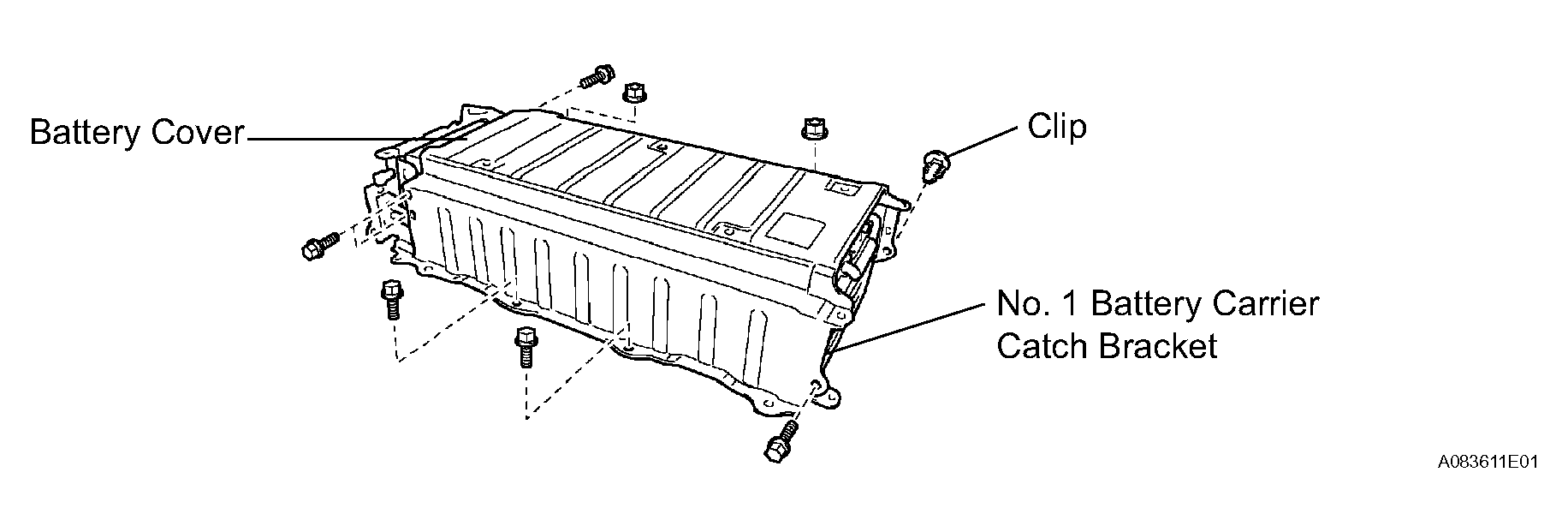

  Fig 3: Installing Battery Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (82 kgf*cm, 71 in.*lbf)
3. Install the protector on the battery cover.
