Instrument Panel Safety Pad: Reassembly

  1. INSTALL NO. 5 INSTRUMENT PANEL CUSHION
  2. INSTALL NO. 4 INSTRUMENT PANEL CUSHION
  3. INSTALL NO. 3 INSTRUMENT PANEL CUSHION
  4. INSTALL NO. 2 INSTRUMENT PANEL CUSHION
  5. INSTALL NO. 1 INSTRUMENT PANEL CUSHION
  6. INSTALL FRONT PASSENGER AIRBAG ASSEMBLY
  7. INSTALL NAVIGATION ANTENNA ASSEMBLY (w/Navigation System)
  8. INSTALL NO. 1 INSTRUMENT PANEL MOUNTING BRACKET
    1. Install the instrument panel mounting bracket with the 3 screws.
      Fig 1: Installing Instrument Panel Mounting Bracket With Screws
      G04476897Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL COMBINATION METER ASSEMBLY
    1. Install the combination meter with the 5 screws.

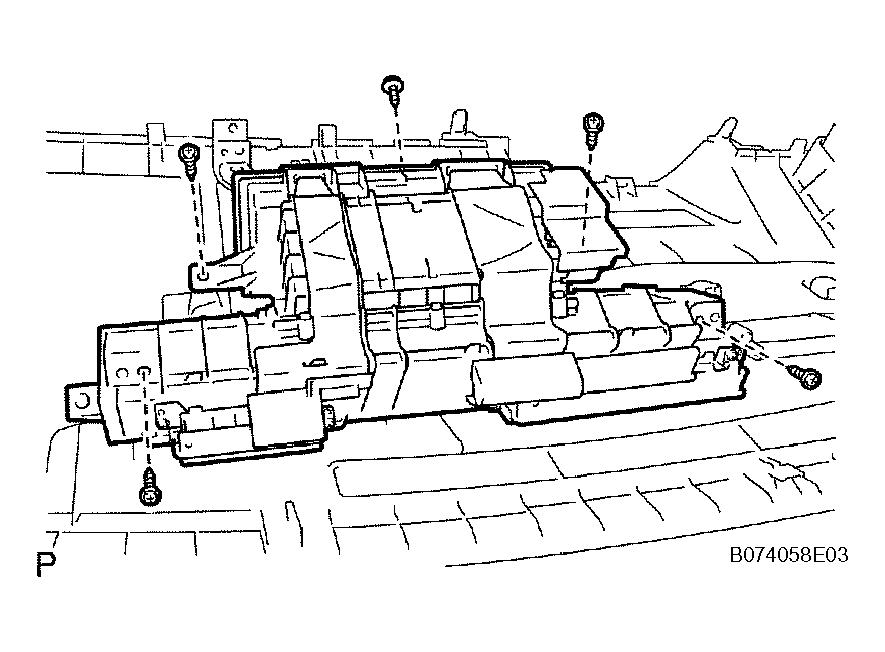

      Fig 2: Installing Combination Meter With Screws
      G04476898Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSTALL INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY
    1. Install the instrument cluster finish panel with the 8 screws.

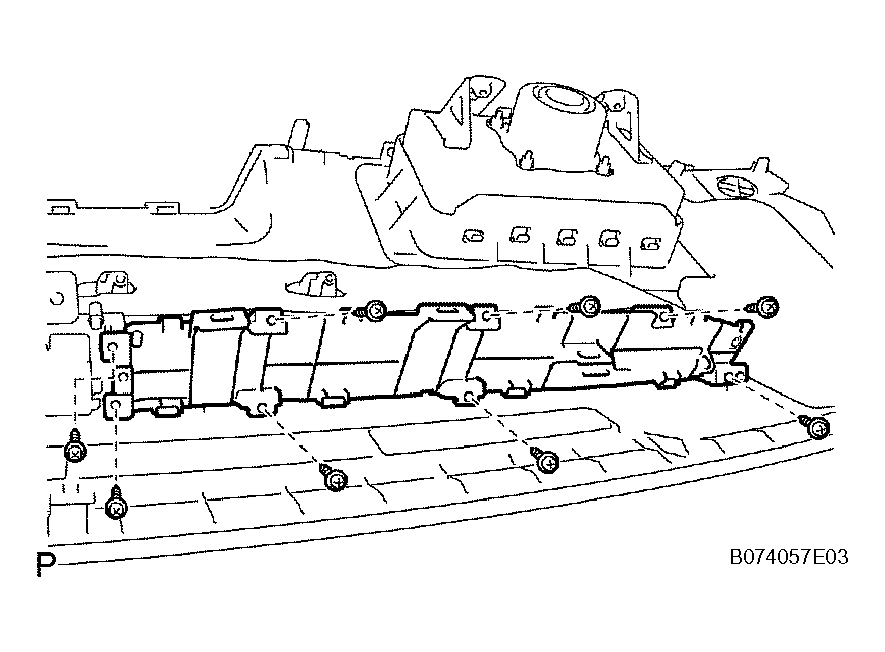

      Fig 3: Installing Instrument Cluster Finish Panel With Screws
      G04476899Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL TELLTALE LIGHT ASSEMBLY
    1. Attach the 2 claws to install the telltale light.

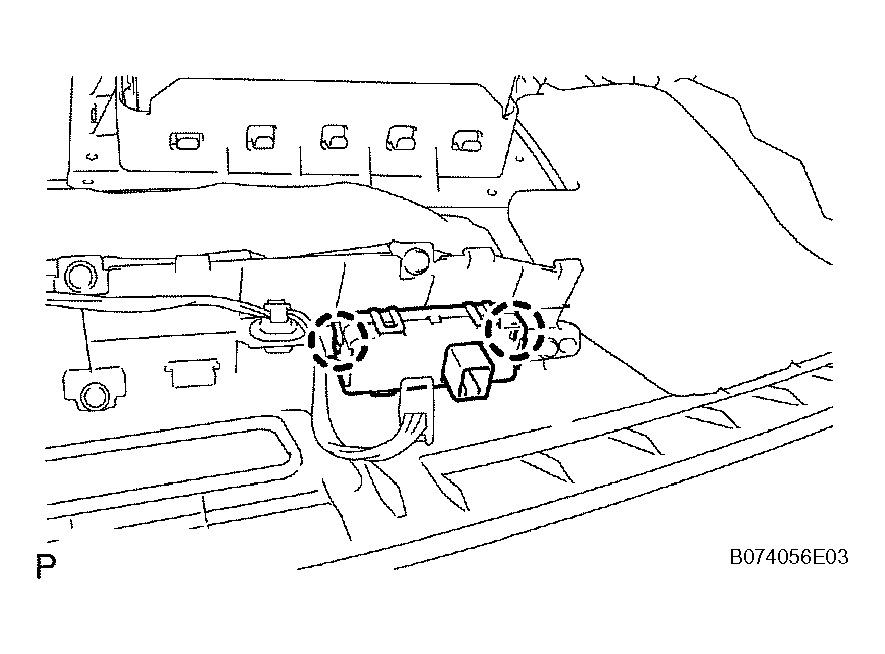

      2. Fig 4: Attaching Claws To Install Telltale Light
      G04476900Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL AUTOMATIC LIGHT CONTROL SENSOR (w/Daytime Running Light System)
  13. INSTALL COOLER (SOLAR SENSOR) THERMISTOR
  14. INSTALL NO. 2 INSTRUMENT PANEL WIRE
    1. Attach the 9 clamps to install the instrument panel wire.

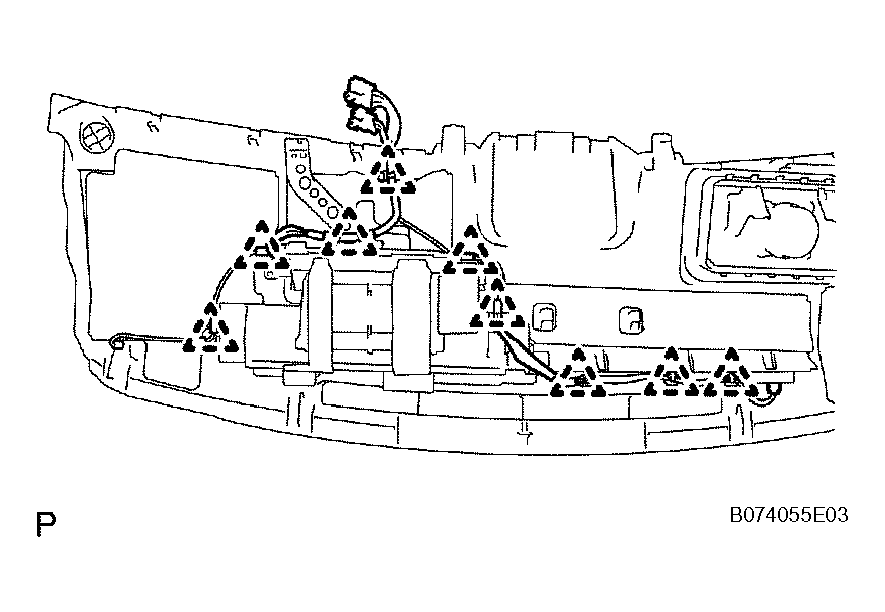

      Fig 5: Attaching Clamps To Install Instrument Panel Wire
      G04476901Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
