Charging System (1NZ-FXE): Battery: Removal

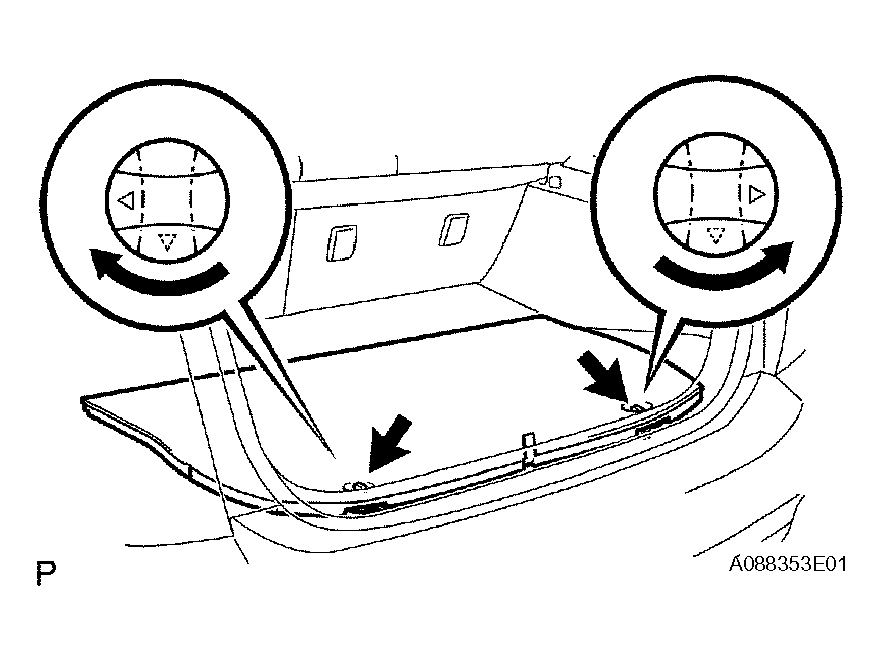

REMOVE REAR NO. 2 FLOOR BOARD
1. Unlock the 2 washer tank cover knobs, and then remove the rear floor board.

  Fig 1: Unlocking Washer Tank Cover Knobs And Removing Rear No. 2 Floor Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

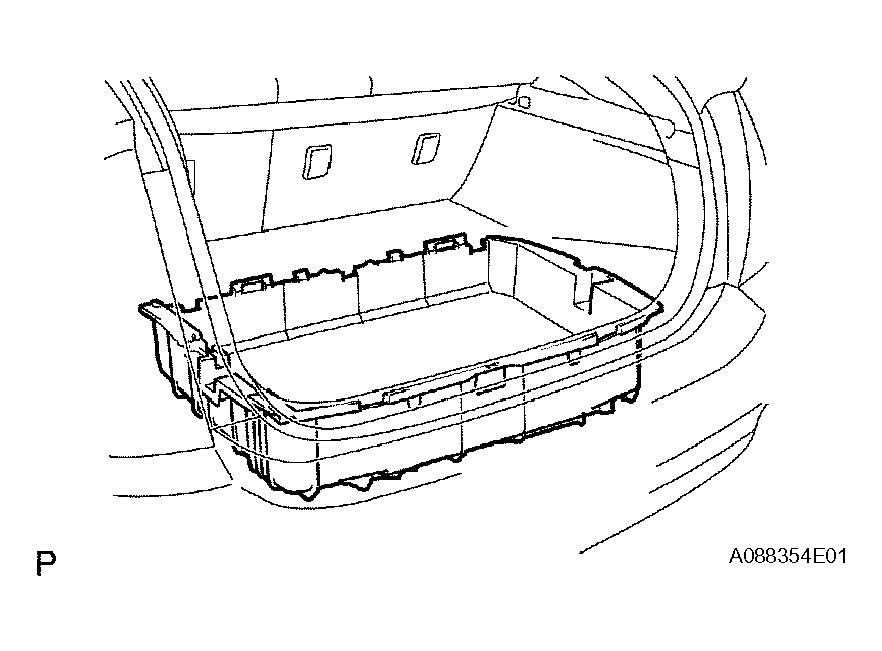

REMOVE REAR DECK FLOOR BOX
1. Remove the rear deck floor box from the vehicle.

  Fig 2: Removing Rear Deck Floor Box From Vehicle
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

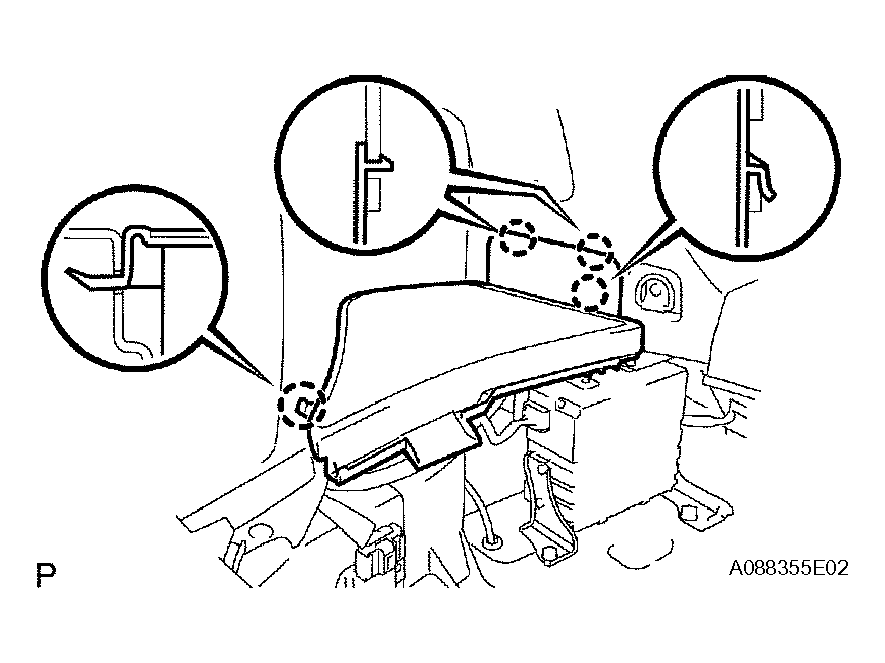

REMOVE REAR NO. 3 FLOOR BOARD
1. Detach the 4 claws, and then remove the floor board.

  Fig 3: Detaching Claws And Removing Floor Board
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

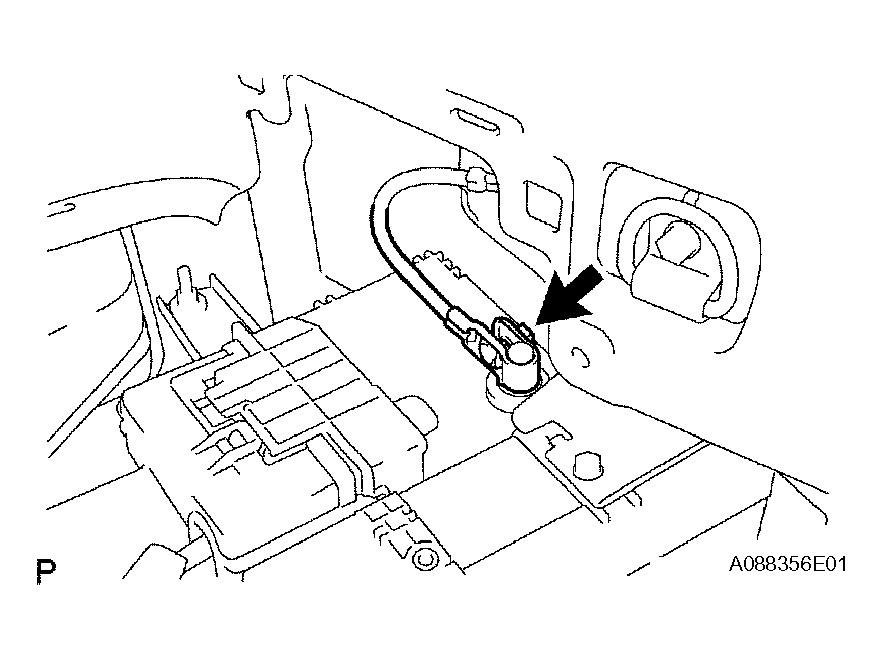

DISCONNECT BATTERY NEGATIVE CABLE
1. Loosen the nut, and then disconnect the battery negative cable (engine wire).

  Fig 4: Loosening Nut And Disconnecting Battery Negative Cable (Engine Wire)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

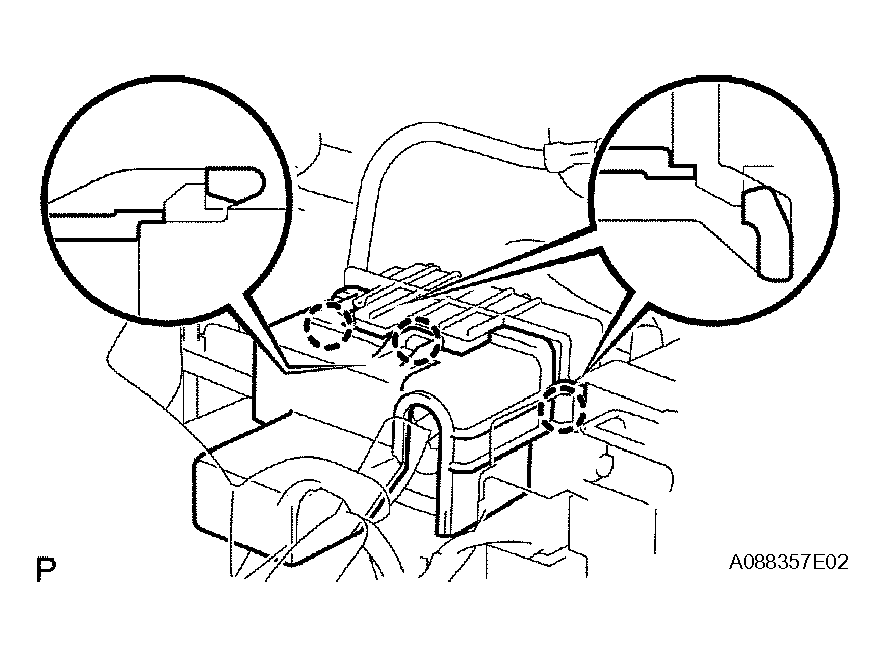

REMOVE CONNECTOR COVER
1. Detach the 3 claws, and then remove the connector cover.

  Fig 5: Detaching Claws And Removing Connector Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

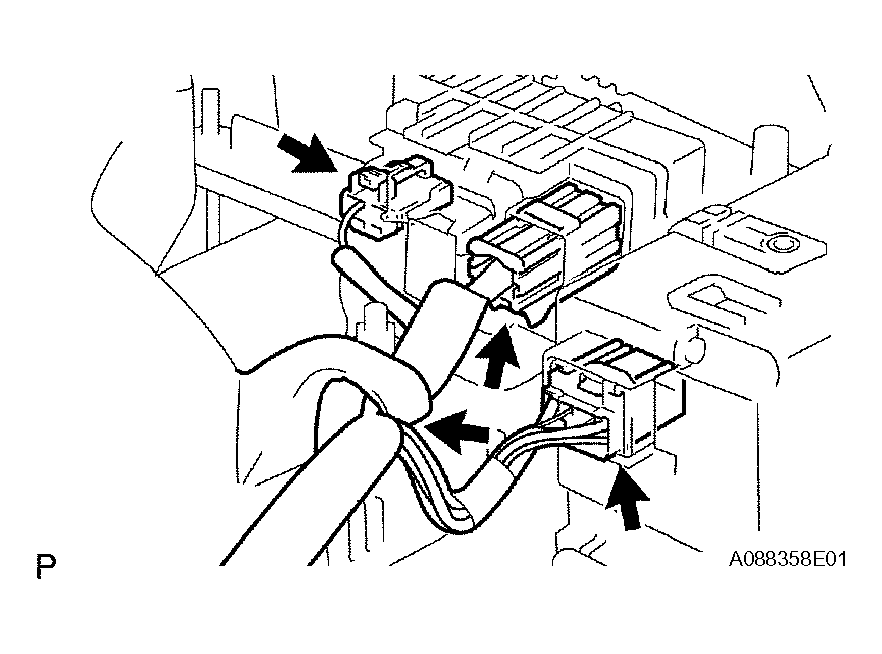

REMOVE NO. 2 QUARTER VENT DUCT
1. Disconnect the brake control power supply connector.
2. Disconnect the 2 fusible link block connectors.
3. Remove the wire harness from the quarter vent duct.

  Fig 6: Disconnecting Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

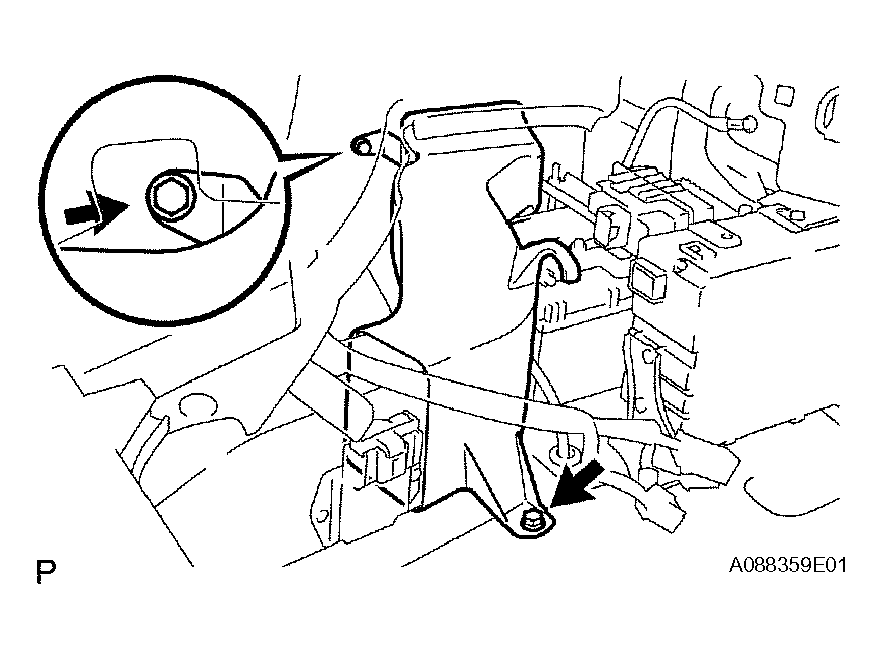

4. Remove the bolt and screw, and then remove the quarter vent duct.

  Fig 7: Removing Bolt, Screw And Quarter Vent Duct
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

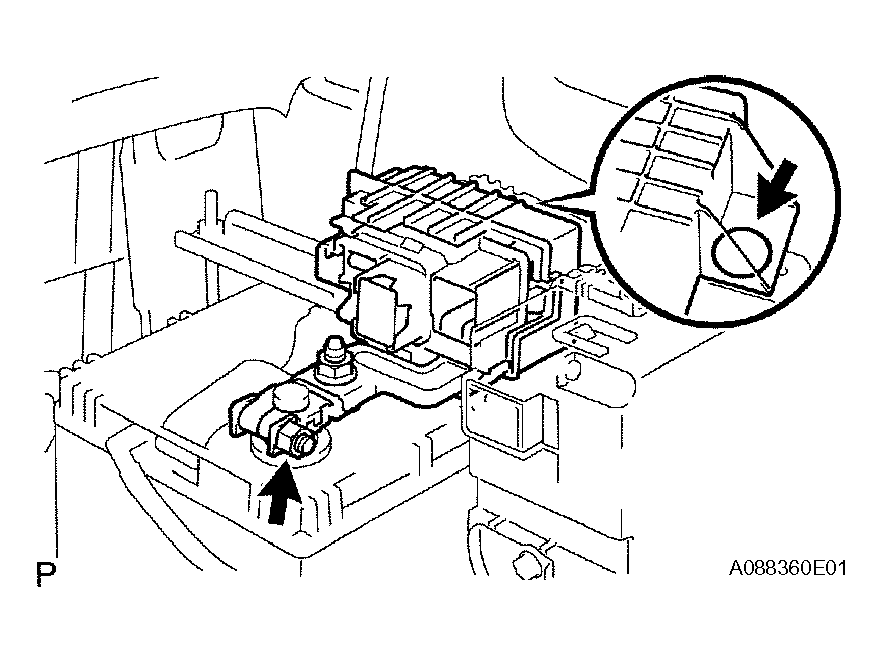

REMOVE FUSIBLE LINK BLOCK ASSEMBLY
1. Using a clip remover, remove the clip.
2. Loosen the nut, and then remove the fusible link block.

  Fig 8: Loosening Nut And Removing Fusible Link Block
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

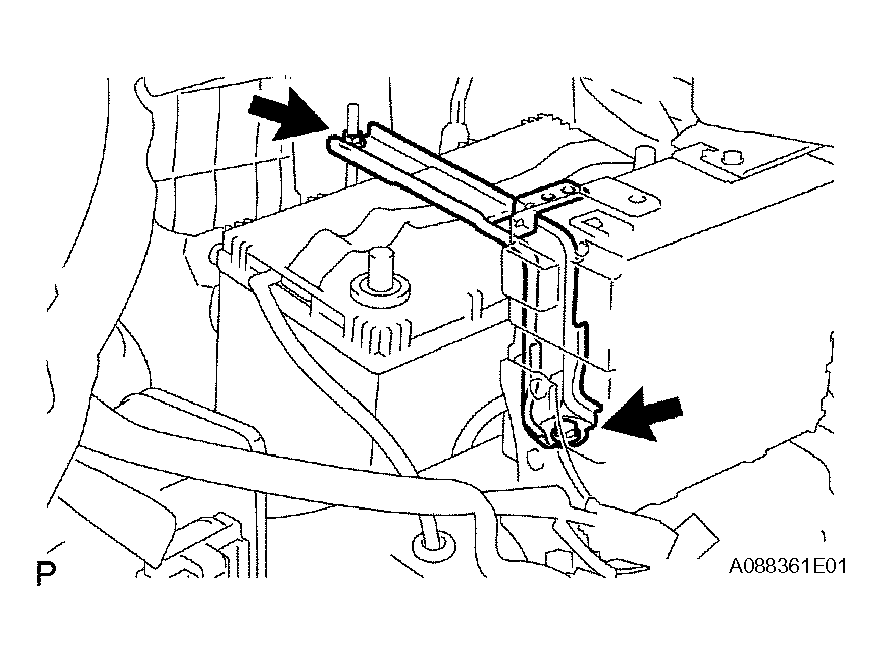

REMOVE BATTERY HOLD DOWN CLAMP
1. Remove the bolt and nut, and then remove the battery hold down clamp.

  Fig 9: Removing Bolt, Nut And Battery Hold Down Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

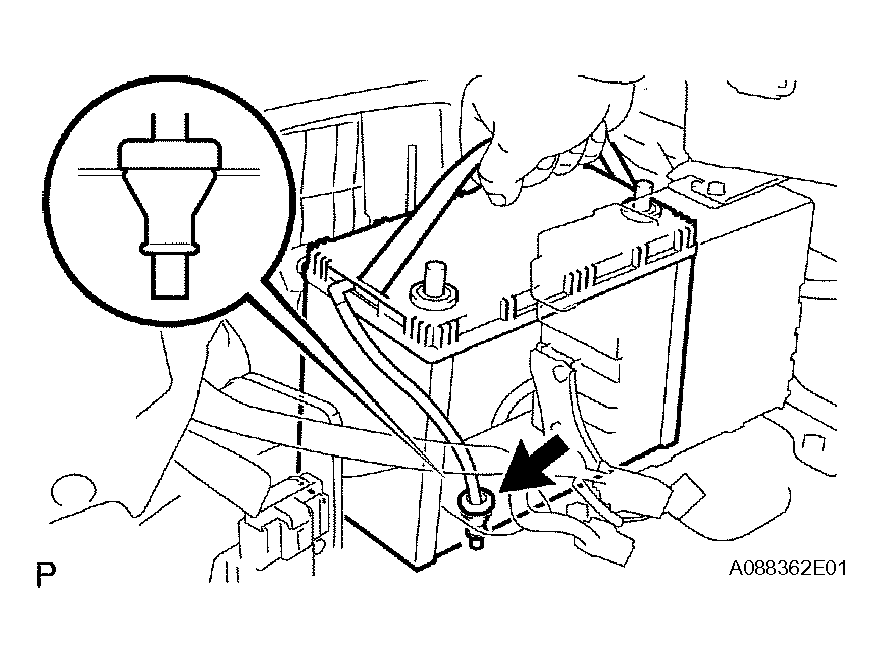

REMOVE BATTERY
1. Remove the grommet of the battery room ventilation hose from the vehicle.
2. Remove the battery from the vehicle.
3. Remove the battery room ventilation hose from the battery.

  Fig 11: Removing Battery Room Ventilation Hose From Battery
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
