DTC C1341/62 Front Hydraulic System RH Malfunction; DTC C1342/63 Front Hydraulic System LH Malfunction; DTC C1343/64 Rear Hydraulic System RH Malfunction; DTC C1344/65 Rear Hydraulic System LH Malfunction: Wiring Diagram

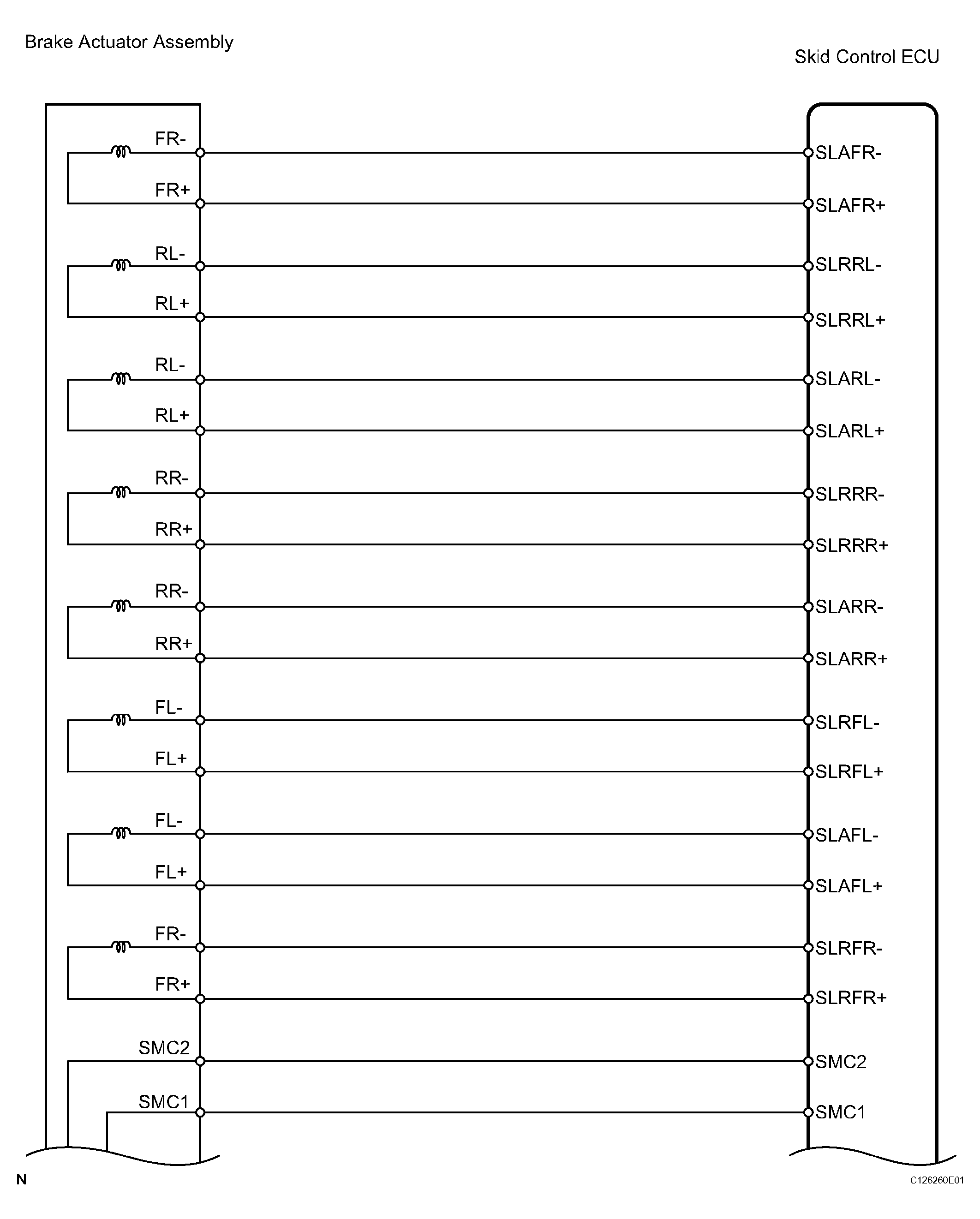

Fig 1: Hydraulic System Malfunction - Wiring Diagram (1 Of 2)
G04474654Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

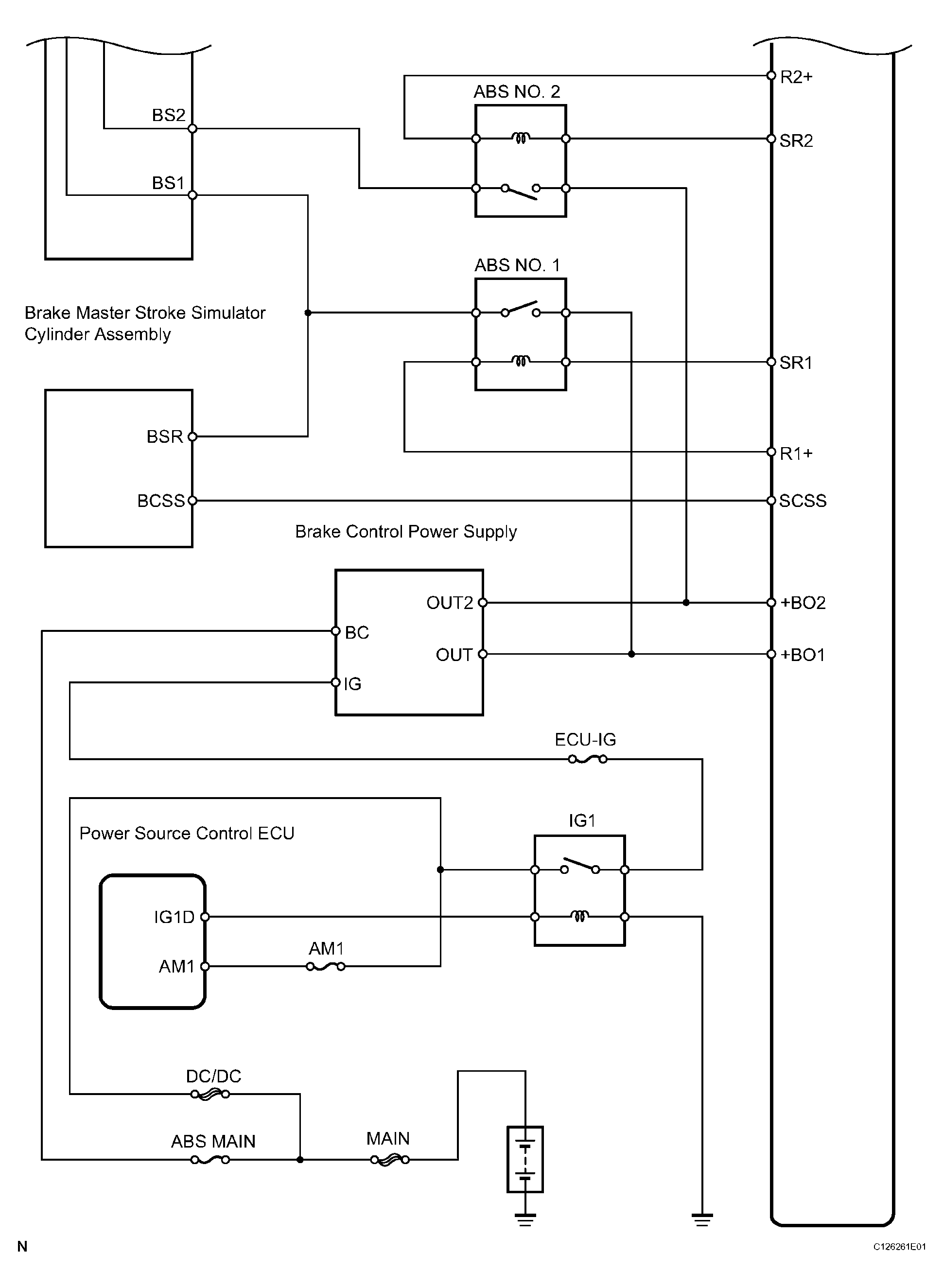

Fig 2: Hydraulic System Malfunction - Wiring Diagram (2 Of 2)
G04474655Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
