Front Brake Pad, Brake Caliper & Brake Rotor: Components

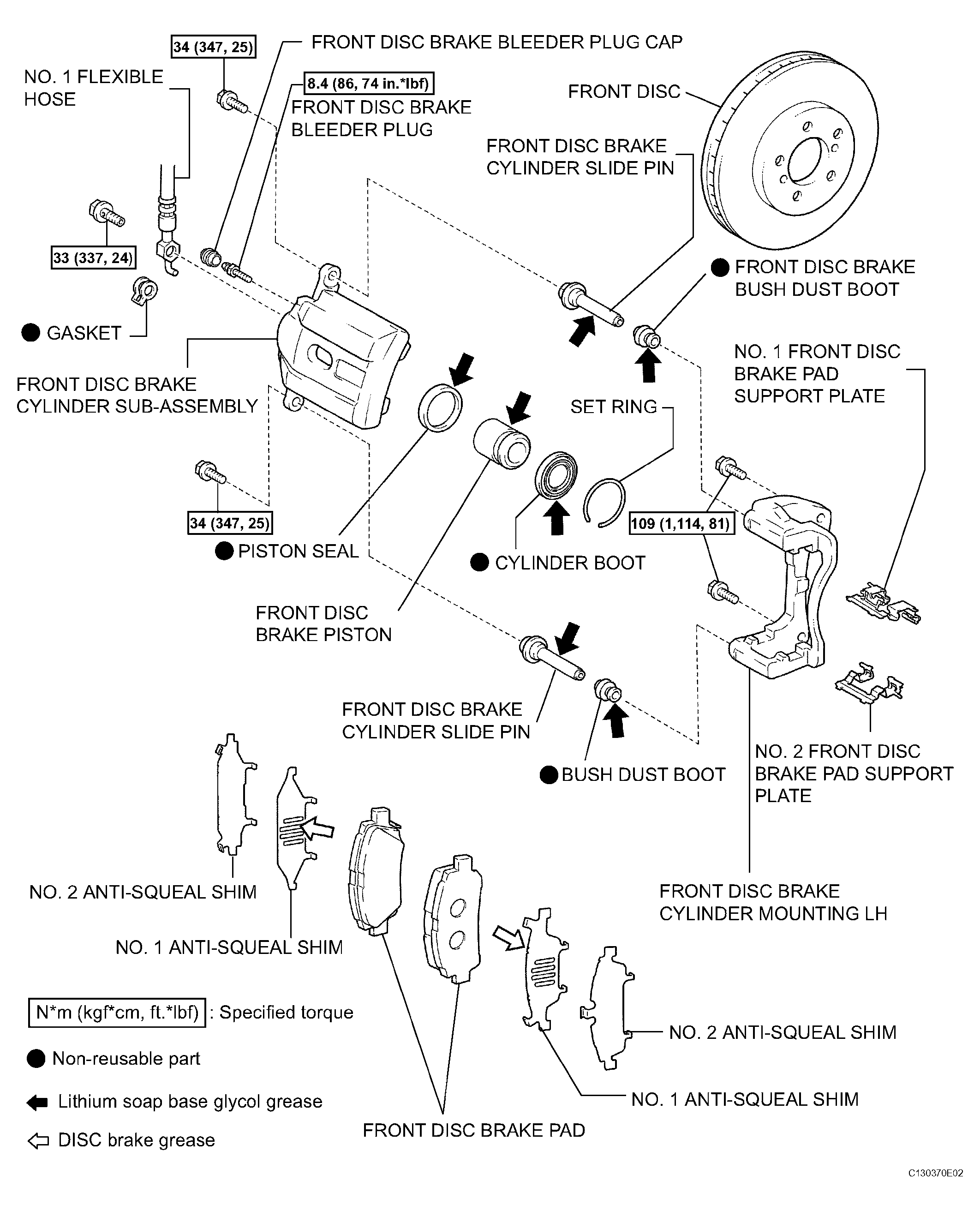

Fig 1: Front Brake Replacement Components -- With Torque Specification

G04474844

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
