Brake Stroke Simulator Cylinder: Components

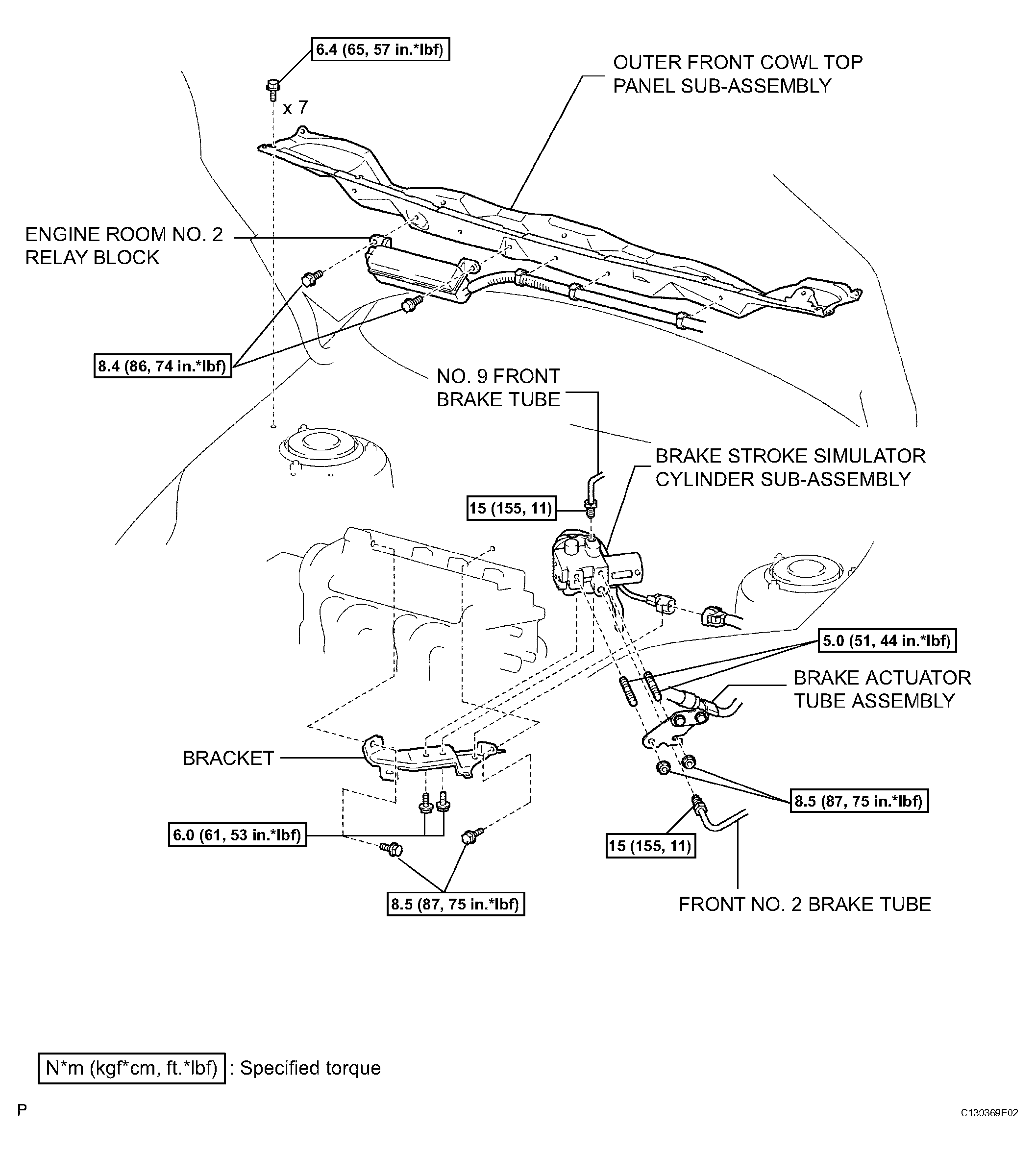

Fig 1: Brake Stroke Simulator Cylinder Replacement Components -- With Torque Specification

G04474837

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
