Brake Pedal: Components

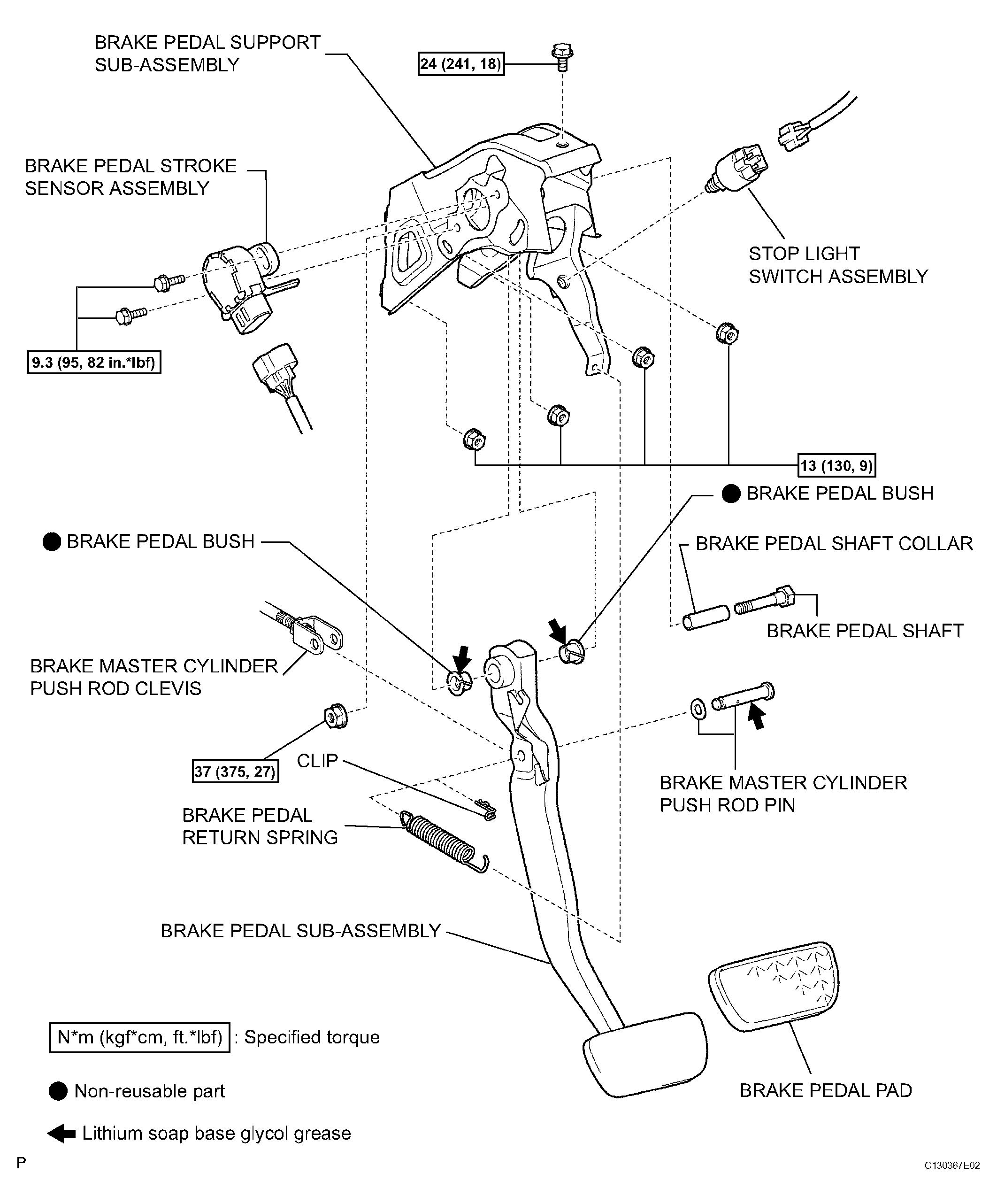

Fig 1: Brake Pedal Replacement Components -- With Torque Specification

G04474798

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
