Brake Master Cylinder: Components

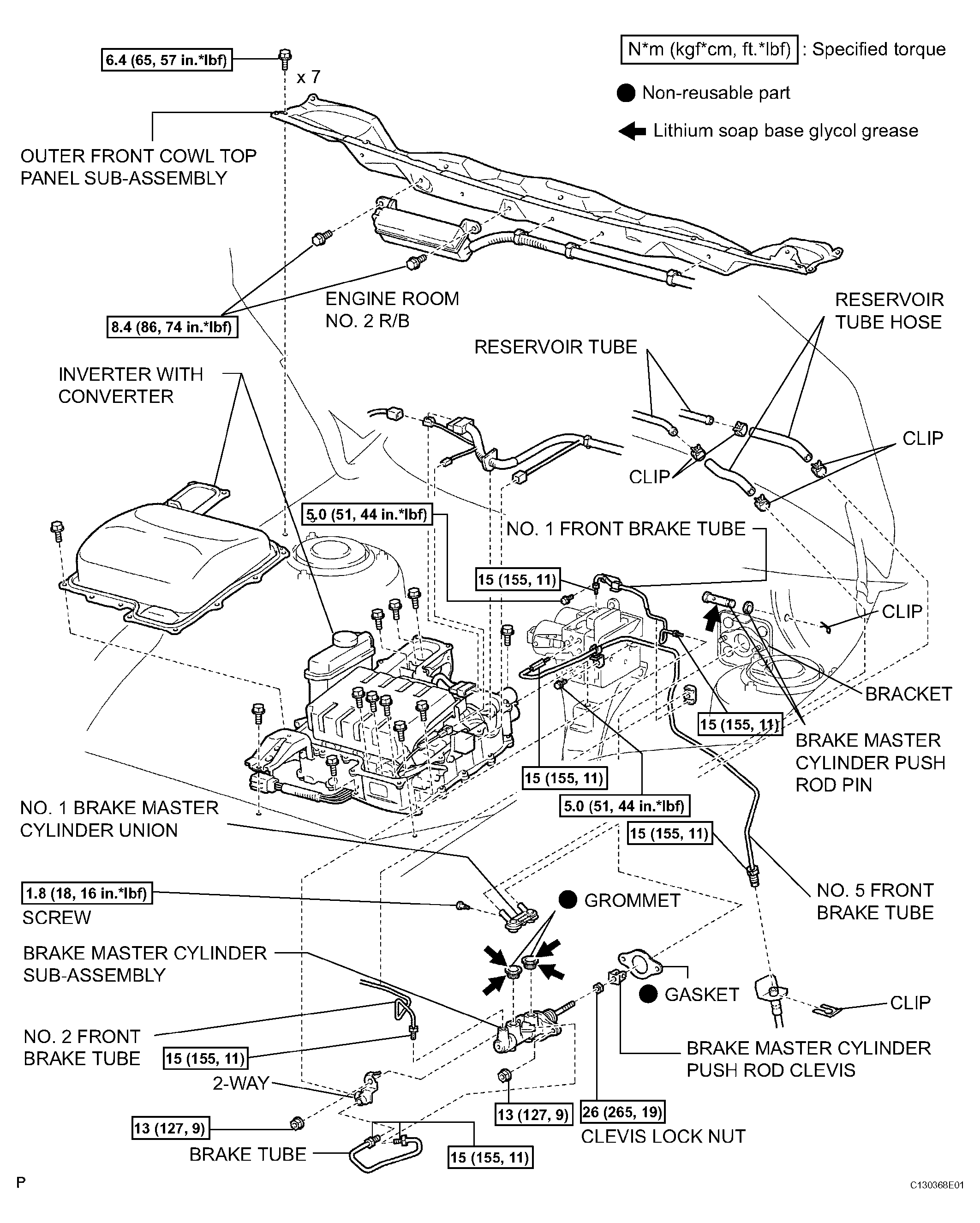

Fig 1: Brake Master Cylinder Replacement Components -- With Torque Specifications
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
