Front Wiper Motor And Link: Removal

REMOVE FRONT WIPER ARM HEAD CAP
REMOVE FRONT WIPER ARM LH
1. Remove the 2 nuts and FR wiper arm LH.
REMOVE FRONT WIPER ARM RH
1. Remove the nut and FR wiper arm RH.

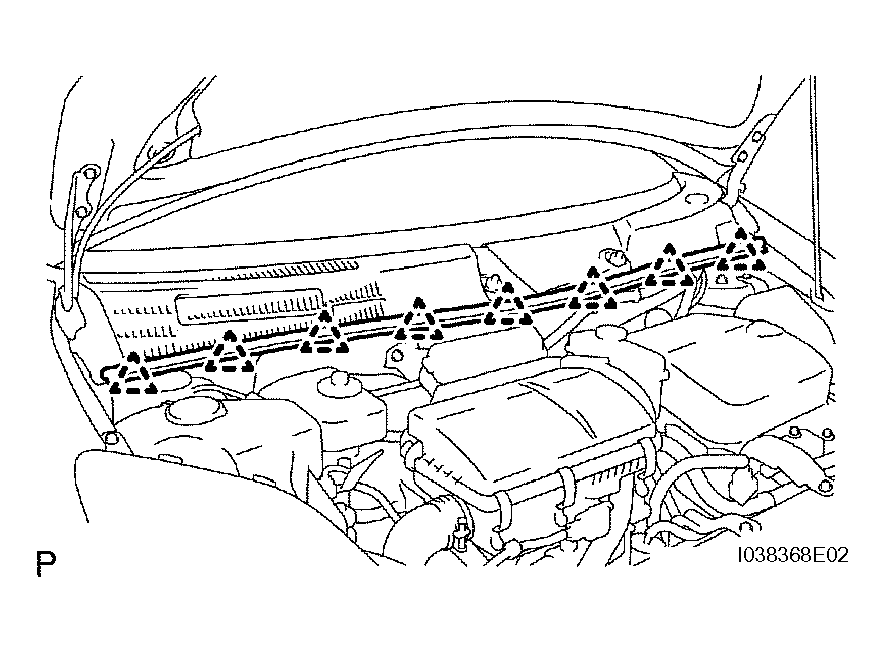

REMOVE HOOD TO COWL TOP SEAL
1. Detach the 8 clips and remove the hood to cowl top seal.

  Fig 1: Removing Hood To Cowl Top Seal
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

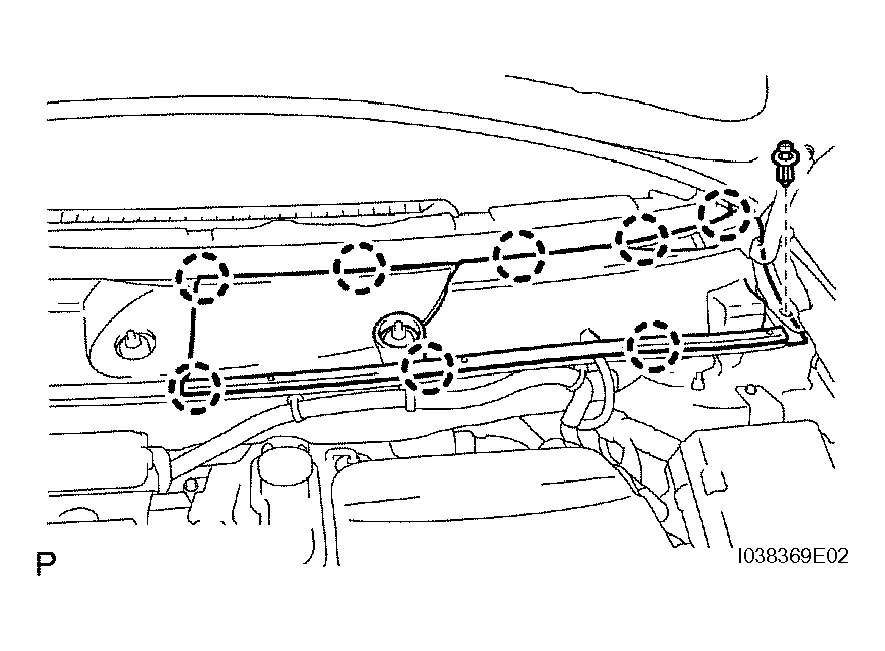

REMOVE COWL TOP VENTILATOR LOUVER LH
1. Detach the 8 claws and clip, and remove the cowl top ventilator louver LH.

  Fig 2: Removing Cowl Top Ventilator Louver LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

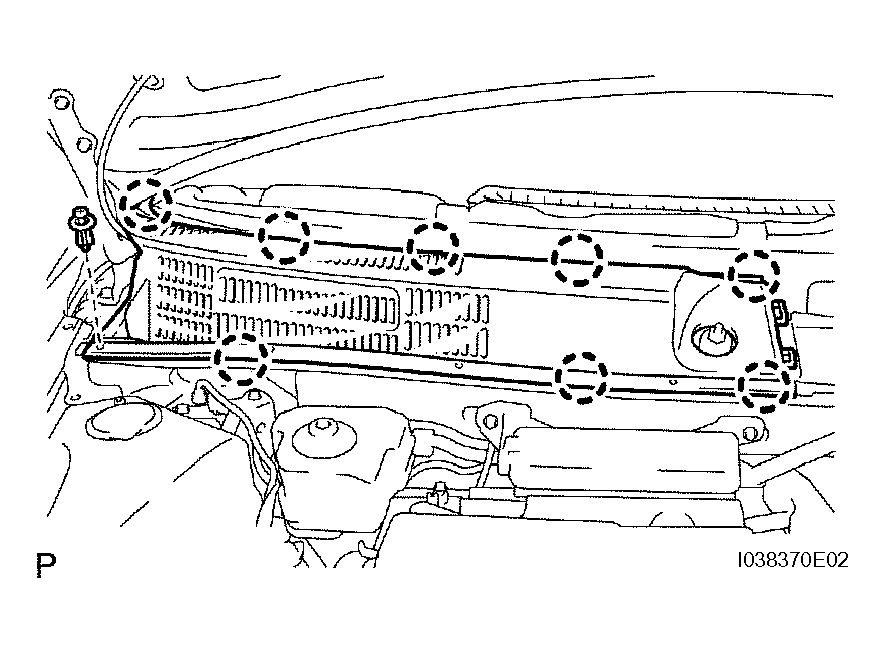

REMOVE COWL TOP VENTILATOR LOUVER RH
1. Detach the 8 claws and clip, and remove the cowl top ventilator louver RH.

  Fig 3: Removing Cowl Top Ventilator Louver RH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

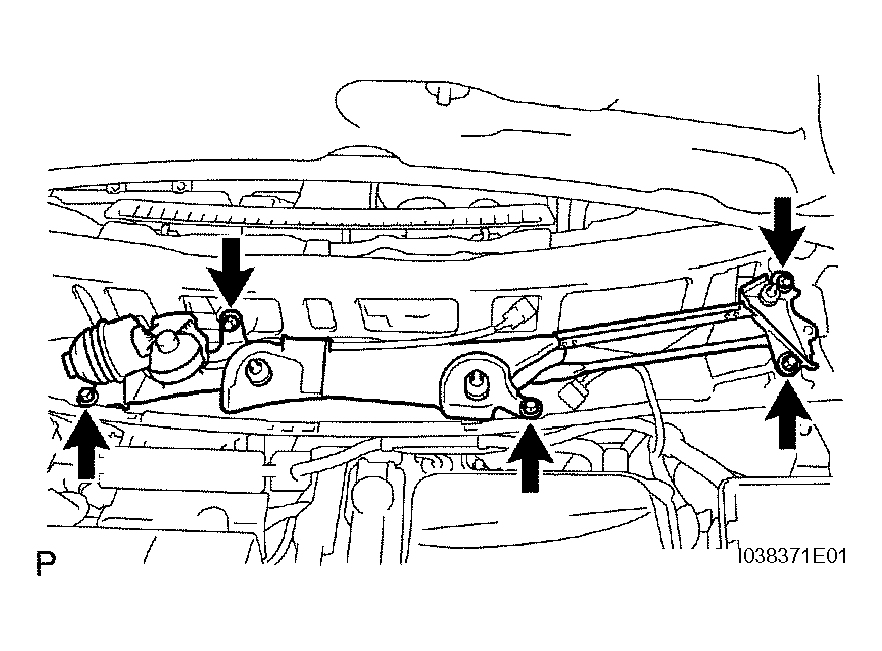

REMOVE WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
1. Disconnect the connector.
2. Remove the 5 bolts and wiper motor & link.

  Fig 4: Removing Windshield Wiper Motor And Link Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE WINDSHIELD WIPER MOTOR ASSEMBLY

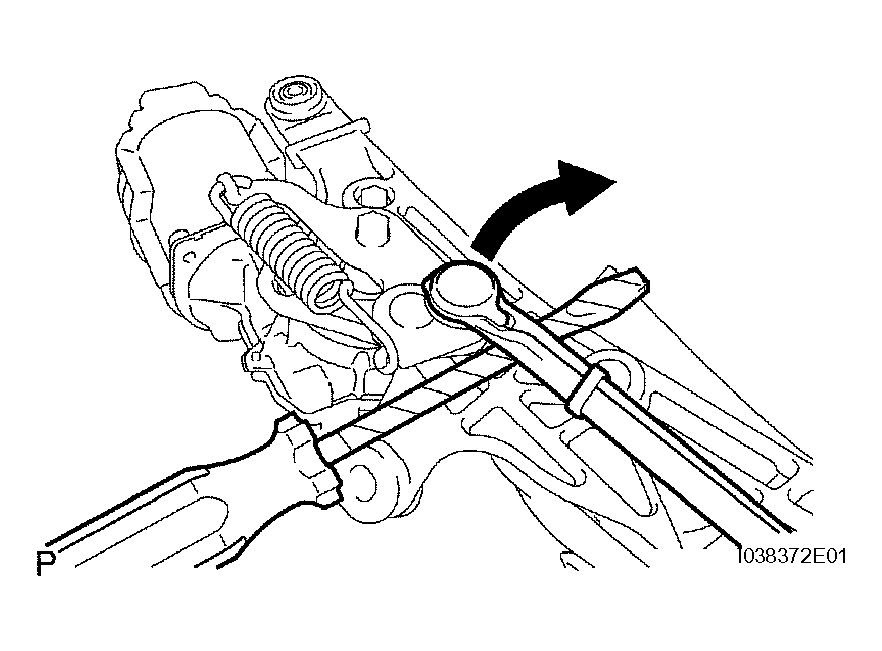

1. Using a flat-head screwdriver, disengage the windshield wiper link arm from the crank arm pivot of the windshield wiper motor.
  HINT:

  Tape the screwdriver tip before use.

  Fig 5: Removing Windshield Wiper Motor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

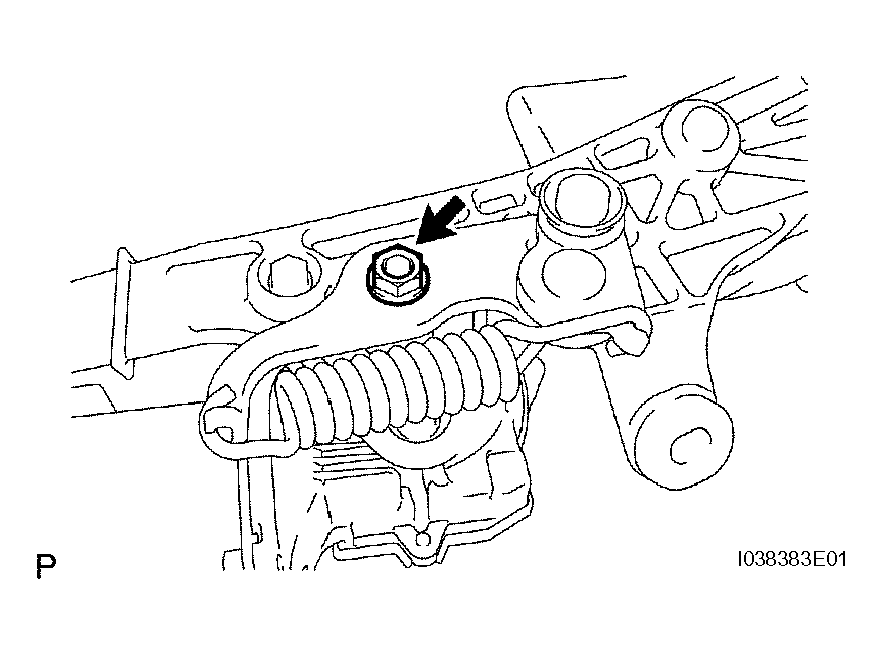

2. Remove the nut and washer.

  Fig 6: Removing Nut
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the crank arm.

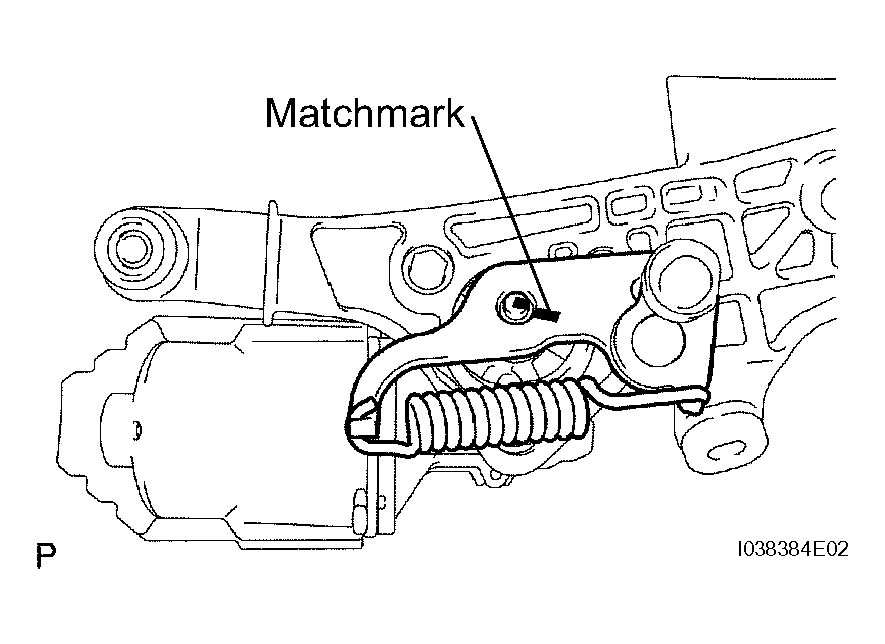

4. Put matchmarks on the crank arm and windshield wiper motor, and remove the crank arm (when reinstalling).

  Fig 7: Putting Matchmarks On Crank Arm
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

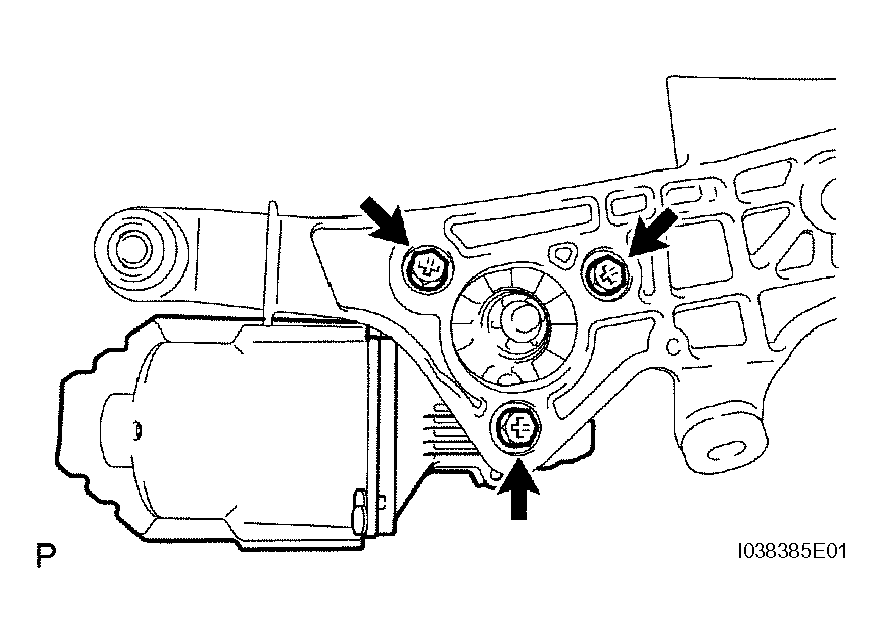

5. Remove the 3 bolts and the windshield wiper motor.

  Fig 8: Removing Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
