Front Wiper Motor And Link: Installation

  1. INSTALL WINDSHIELD WIPER MOTOR ASSEMBLY
    1. Install the windshield wiper motor to the windshield wiper link with the 3 bolts.

      Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

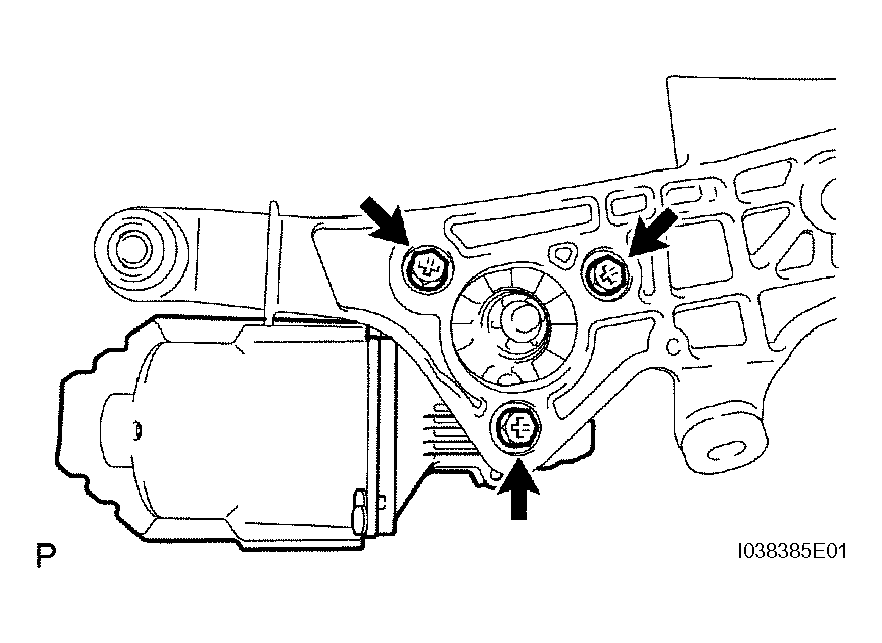

      Fig 1: Installing Bolts
      G04475933Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the crank arm with the washer and nut.
    3. Align the matchmarks on the crank arm and windshield wiper motor, then install the crank arm with the washer and nut (when reinstalling).

      Torque: 17 N.m (175 kgf.cm, 13 ft.lbf)

    4. Apply MP grease to the crank arm pivot of the windshield wiper motor and install the windshield wiper link arm.

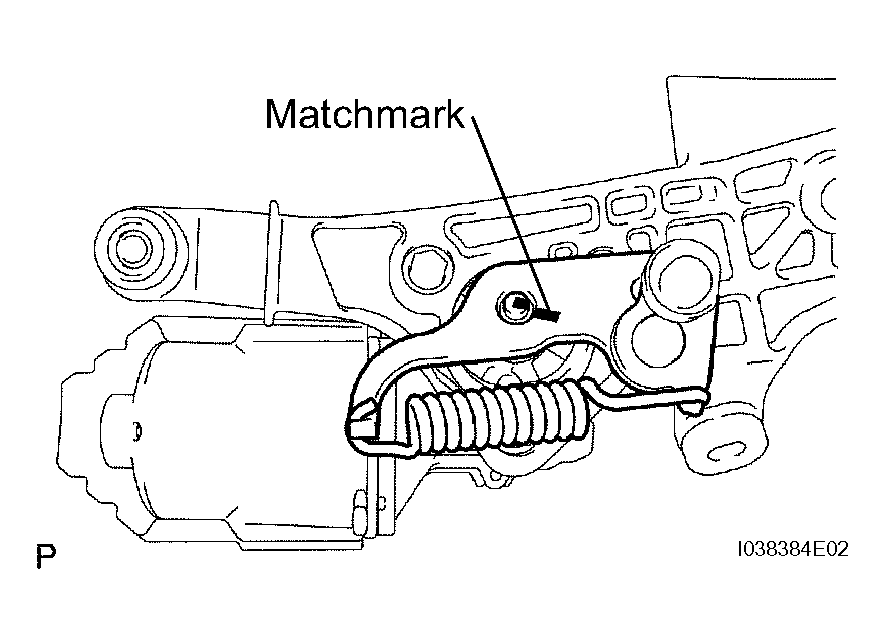

      Fig 2: Aligning Matchmarks On Crank Arm
      G04475934Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL WINDSHIELD WIPER MOTOR AND LINK ASSEMBLY
    1. Install the windshield wiper motor & link with the 5 bolts.

      Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)

    2. Connect the connector.

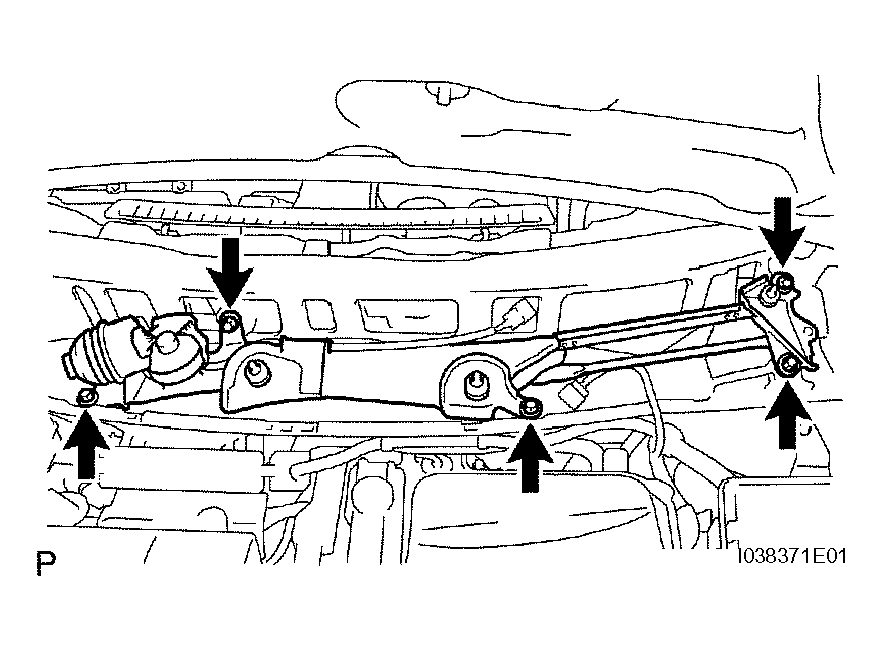

      Fig 3: Installing Bolts
      G04475935Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY LH
    1. Clean the wiper arm serration with a round file or equivalent (when reinstalling).
    2. Clean the wiper pivot serration with a wire brush.

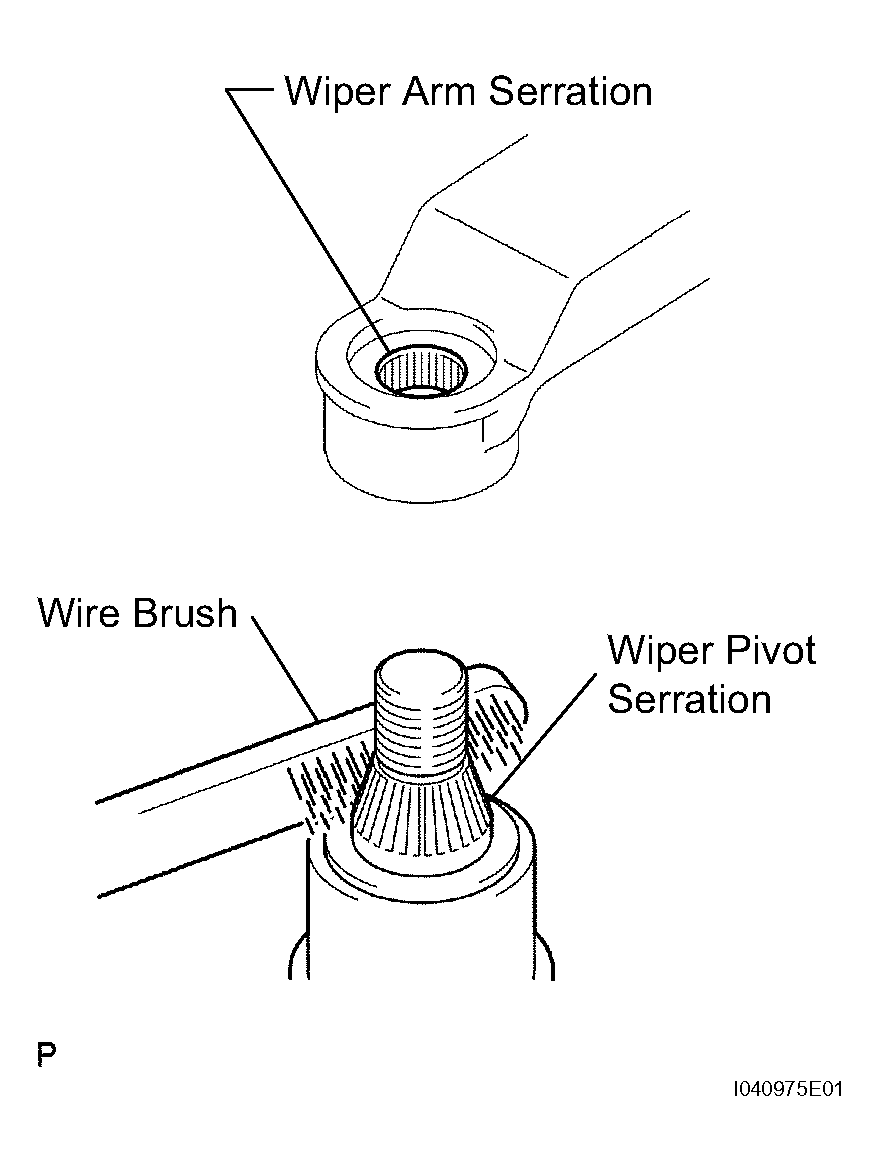

      Fig 4: Cleaning Wiper Arm Serration
      G04475936Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the front wiper arm LH with the nut so that the front wiper blade comes to the position shown in Fig 5.

      Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

      HINT:

      While installing the nut, hold down the arm hinge by hand.

      Fig 5: Installing Front Wiper Arm LH
      G04475937Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL FRONT WIPER ARM AND BLADE ASSEMBLY RH
    1. Clean the wiper arm serration with a round file or equivalent (when reinstalling).
    2. Clean the wiper pivot serration with a wire brush.
    3. Install the front wiper arm RH with the 2 nuts so that the front wiper blade comes to the position shown in Fig 6.

      Torque: 21 N.m (214 kgf.cm, 15 ft.lbf)

      Fig 6: Installing Front Wiper Arm RH
      G04475938Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      While installing the nut, hold down the arm hinge by hand.

    4. Operate the front wipers while spraying water or washer fluid on the windshield glass. Ensure that the wipers function properly and there is no interference with the body.
  5. INSTALL COWL TOP VENTILATOR LOUVER RH
    1. Attach the 8 claws and install the louver.

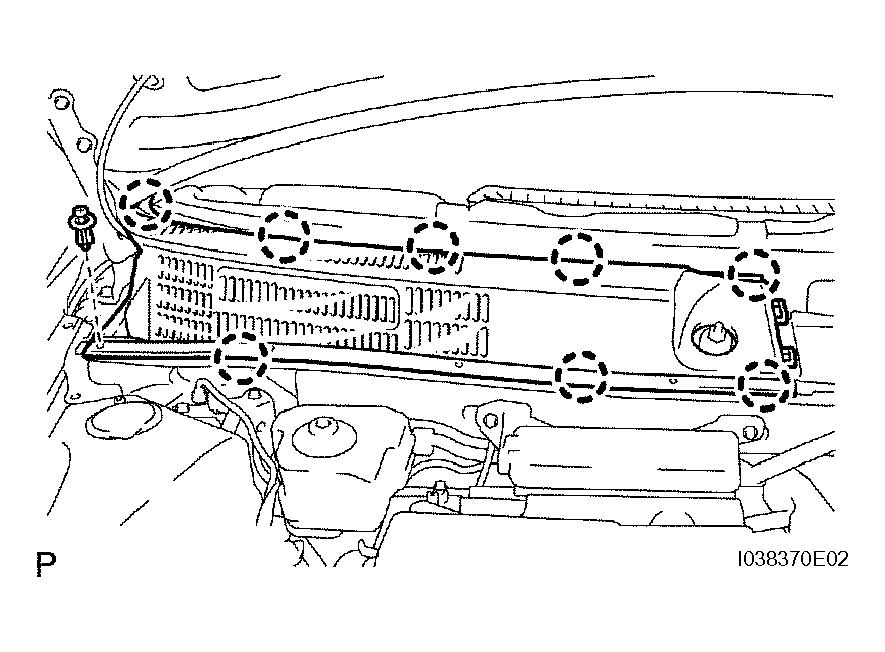

      Fig 7: Attaching Claws
      G04475939Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clip.
  6. INSTALL COWL TOP VENTILATOR LOUVER LH
    1. Attach the 8 claws and install the louver.

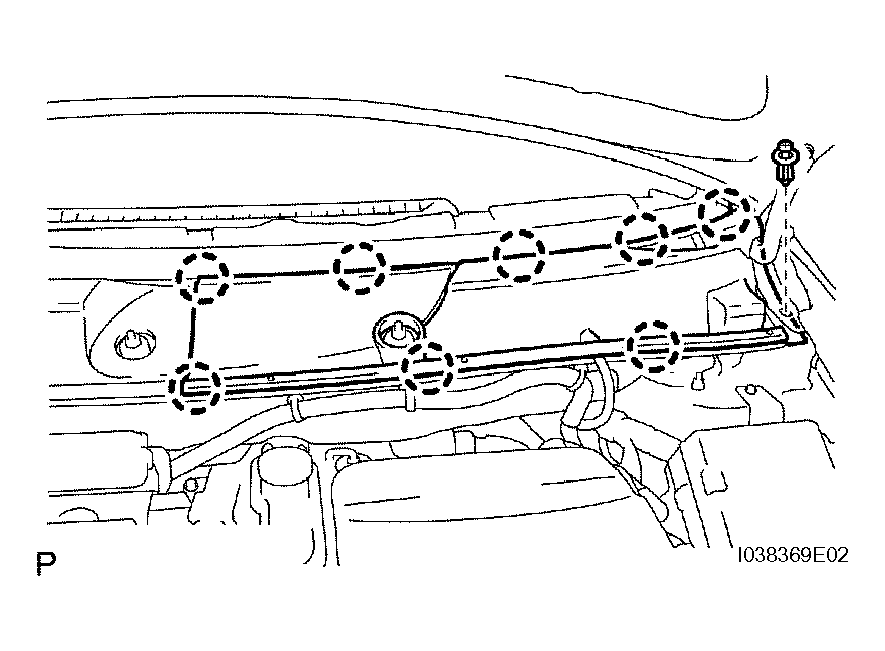

      Fig 8: Attaching Claws
      G04475940Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the clip.
  7. INSTALL HOOD TO COWL TOP SEAL
    1. Attach the 8 clips and install the cowl to seal.

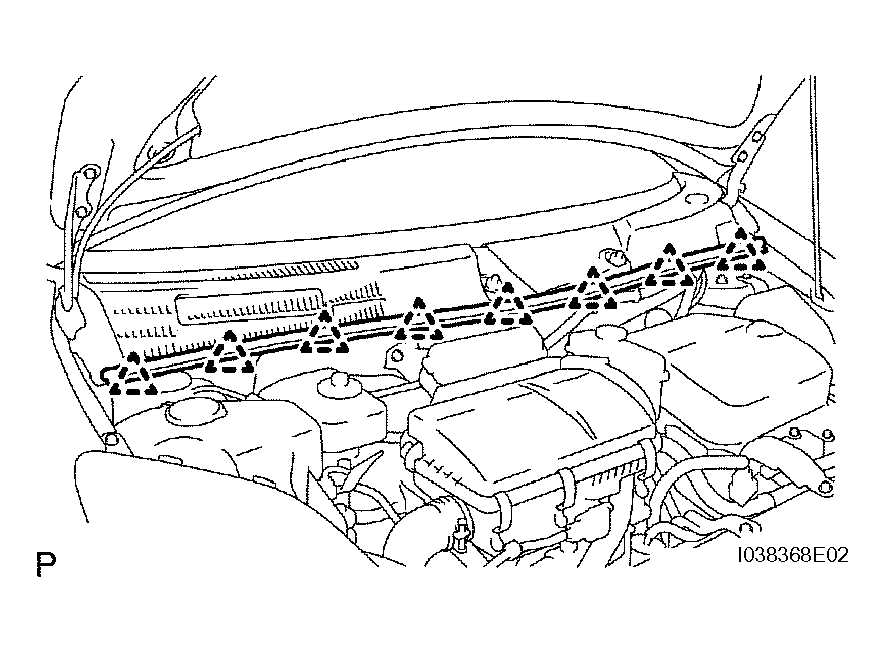

      Fig 9: Attaching Clips
      G04475941Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
  9. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
      NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
