Inspection Procedure

1. Remove the ODO / TRIP switch.
2. Measure the resistance of the switch.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Switch Condition	Specified Condition
   5 (ODO) - 6 (E)	Push ODO / TRIP switch	Below 1 Ω
   	Release ODO / TRIP switch	10 kΩ or higher

   Fig 1: Identifying Odo/Trip Switch Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPLACE ODO / TRIP SWITCH

OK: GO TO NEXT STEP

1. Disconnect the H11 switch connector.
2. Disconnect the C10 meter connector.
3. Measure the resistance of the wire harness side connectors.

   Standard resistance

   TESTER CONNECTION SPECIFIED CONDITION



   Tester Connection	Specified Condition
   H11-5 (ODO) - C10-3	Below 1 Ω
   H11-6 (E) - C10-2

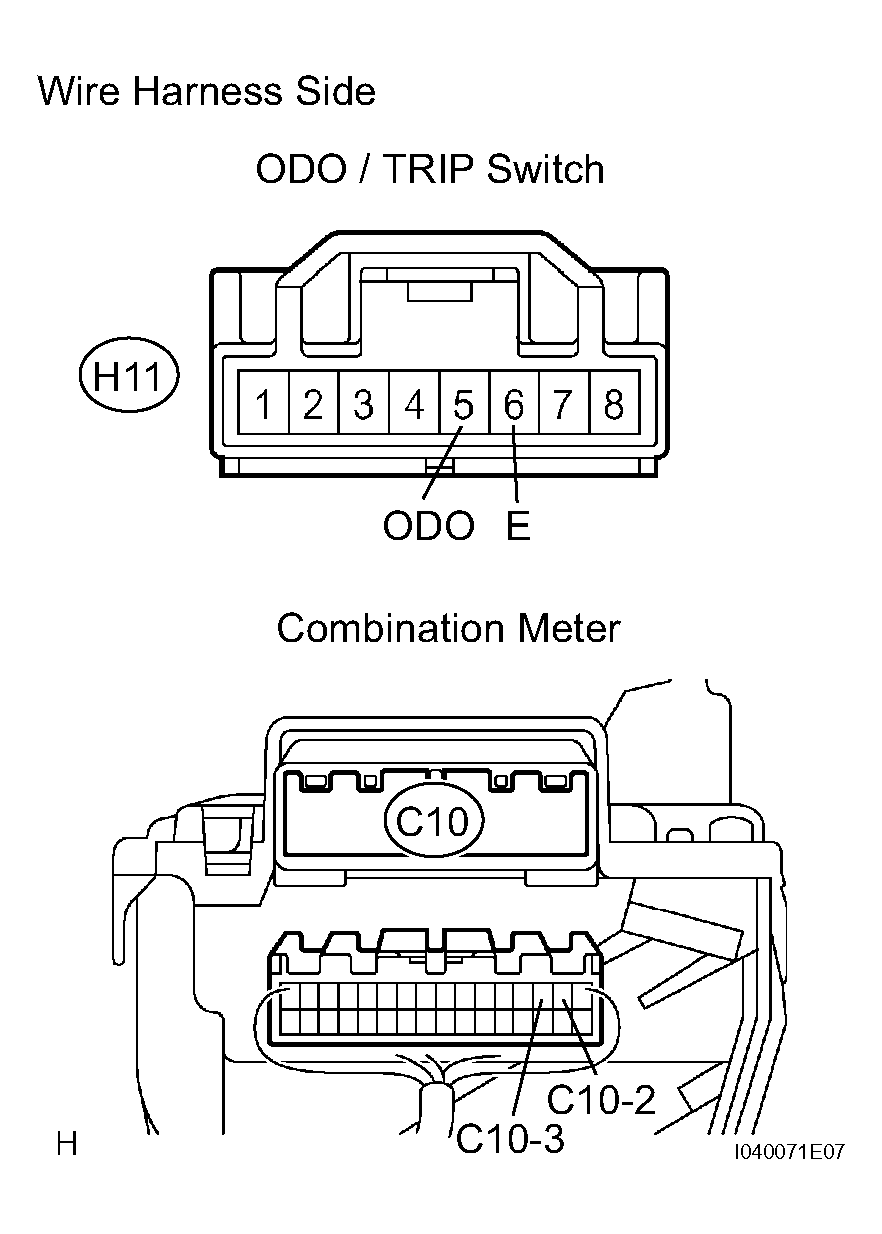

   Fig 2: Identifying H11 Switch And C10 Meter Connector Terminal

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NG: REPAIR OR REPLACE HARNESS AND CONNECTOR

OK: REPLACE COMBINATION METER
