Steering Pad: Installation

INSTALL STEERING PAD
1. Connect the airbag connectors and horn connector.
2. Install the steering pad after confirming that the circumference groove of the "torx" screw is caught on the screw.
3. Using a "torx" socket wrench (T30), install the 2 screw.
  Torque: 8.8 N*m (90 kgf*cm, 78 in.*lbf)

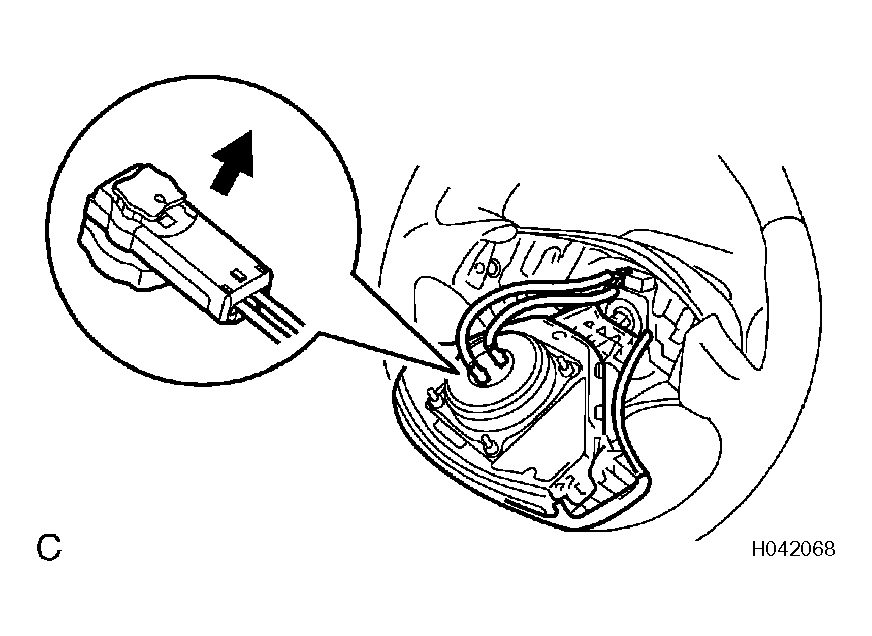

Fig 1: Installing Steering Pad
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
INSPECT STEERING PAD
1. With the steering pad installed on the vehicle, perform a visual check. If there are any defects as mentioned below, replace the steering pad with a new one:
  Cuts, minute cracks or marked discoloration on the steering pad top surface or in the grooved portion.
2. Make sure that the horn sounds.
  HINT:

  If the horn does not sound, inspect the horn system (See PROBLEM SYMPTOMS TABLE ).

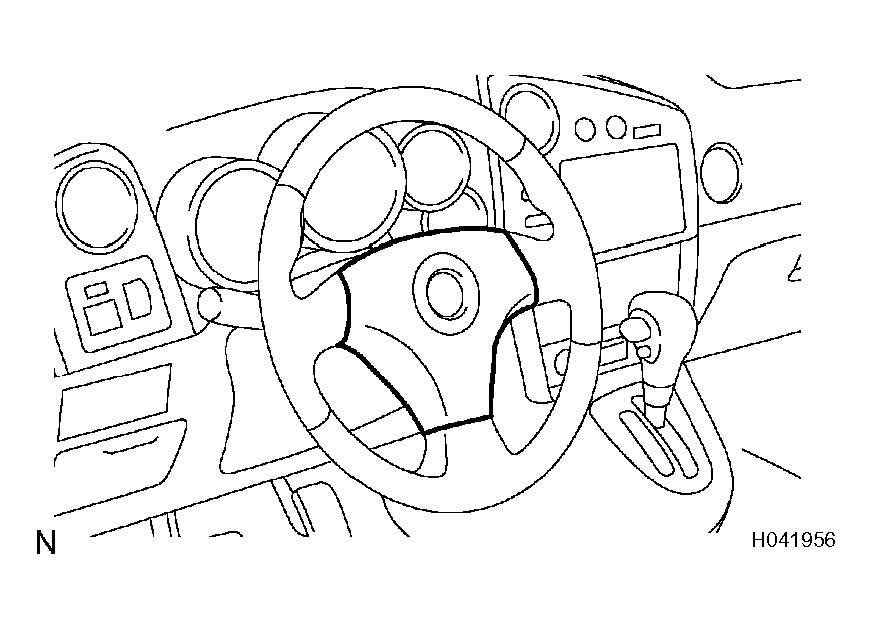

  Fig 2: Inspecting Steering Pad
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
PERFORM INITIALIZATION
1. Perform initialization.
  HINT:

  Some systems need initialization when disconnecting the cable from the negative battery terminal.
INSPECT SRS WARNING LIGHT
1. Inspect the SRS warning light (See DIAGNOSIS SYSTEM ).
