Floor Shift Lever Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CTR (See REMOVAL )
REMOVE INSTRUMENT PANEL BOX (See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (See REMOVAL )
DISCONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Remove the clip, washer and disconnect the cable end of the shift cable from the shift lever assembly.

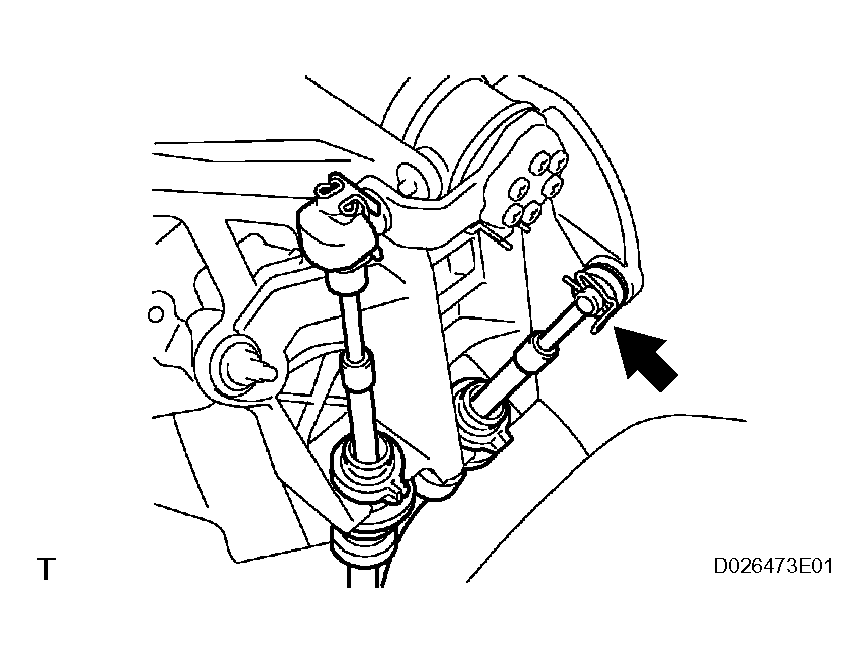

  Fig 1: Disconnecting Cable End Of Shift Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the lock and disconnect the shift cable from the shift lever assembly.
3. Pull out the shift cable from the floor.

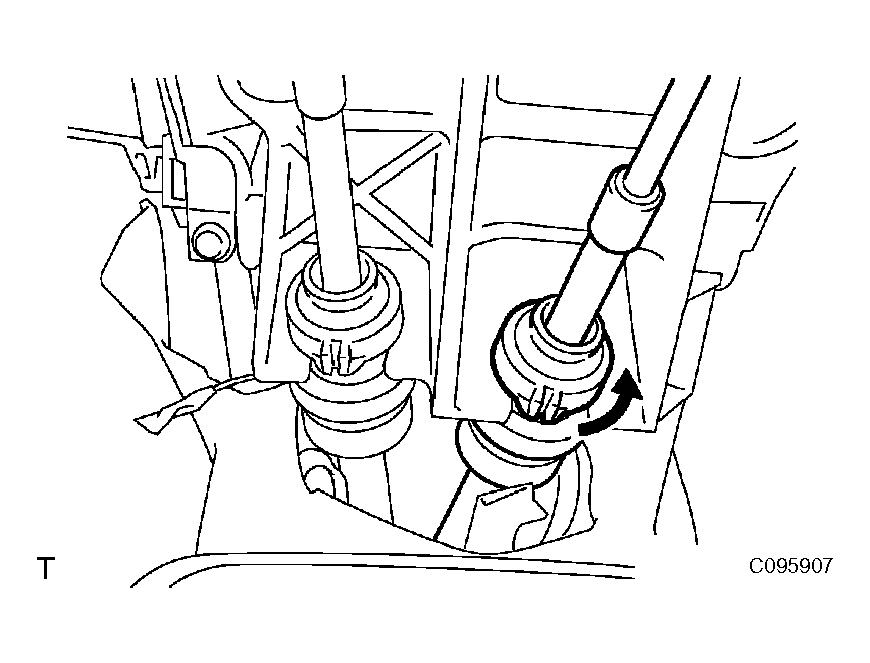

  Fig 2: Disconnecting Shift Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Remove the clip and disconnect the cable end of the select cable from the shift lever assembly.

  Fig 3: Disconnecting Cable End Of Select Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn the lock and disconnect the select cable from the shift lever assembly.
3. Pull out the select cable from the floor.

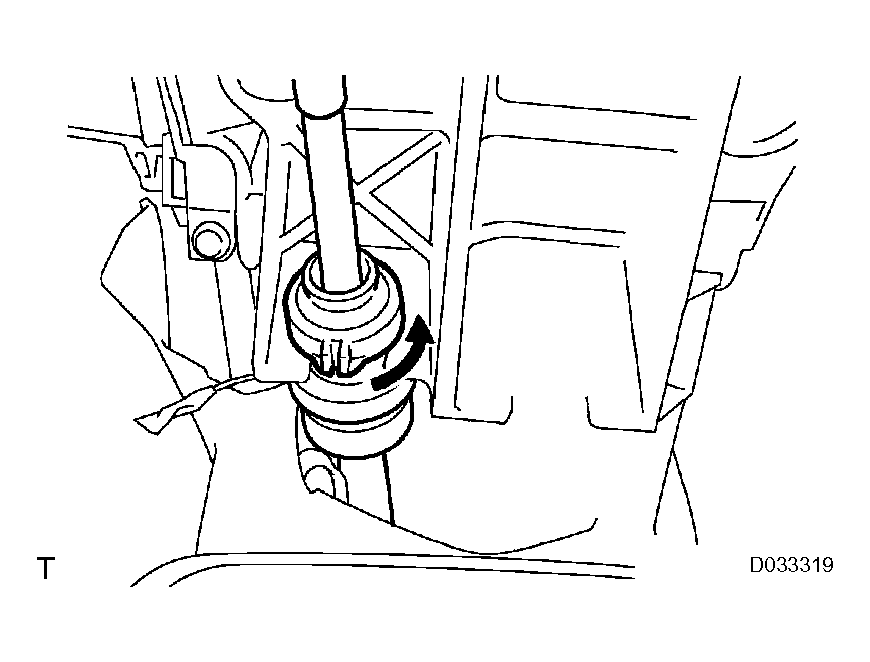

  Fig 4: Disconnecting Select Cable From Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT LEVER ASSEMBLY
1. Remove the 4 nuts and shift lever assembly.

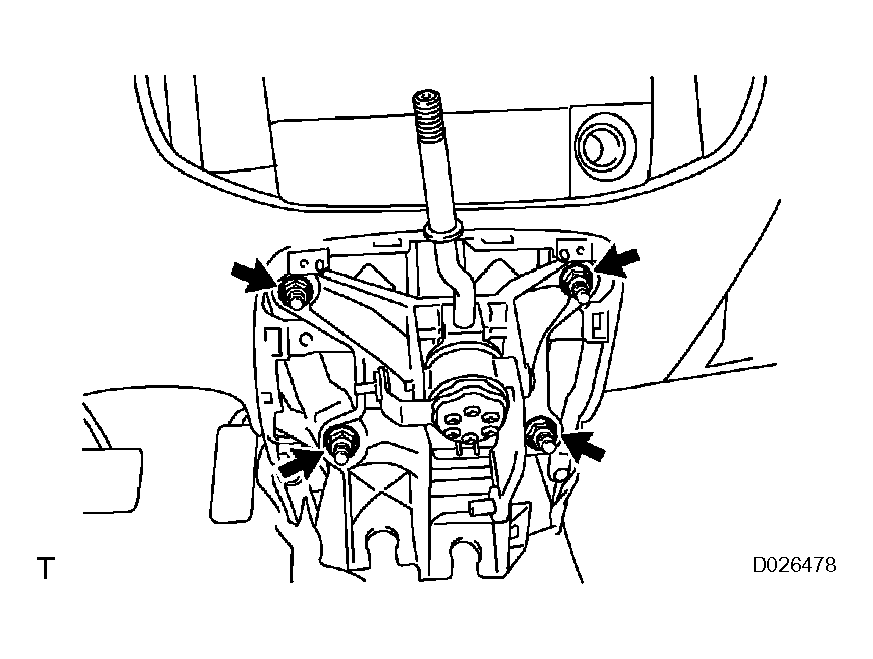

  Fig 5: Removing Floor Shift Lever Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
