Floor Shift Assembly: Removal

WARNING: This page is about a different variant/trim than selected.

REMOVE INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY CENTER
HINT:

(See REMOVAL )
REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CTR
HINT:

(See REMOVAL )
REMOVE INSTRUMENT PANEL BOX
HINT:

(See REMOVAL )
REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER
HINT:

(See REMOVAL )
DISCONNECT FLOOR SHIFT PARKING LOCK CABLE ASSEMBLY
1. Push the claw and disconnect the parking lock cable assembly from the shift lock release link.

  Fig 1: Disconnecting Floor Shift Parking Lock Cable Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disconnect the parking lock cable assembly from the shift lever plate.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 2: Disconnecting Parking Lock Cable Assembly From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT TRANSMISSION CONTROL CABLE ASSEMBLY
1. Disconnect the control cable end from the shift lever.

  Fig 3: Disconnecting Control Cable End From Shift Lever
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

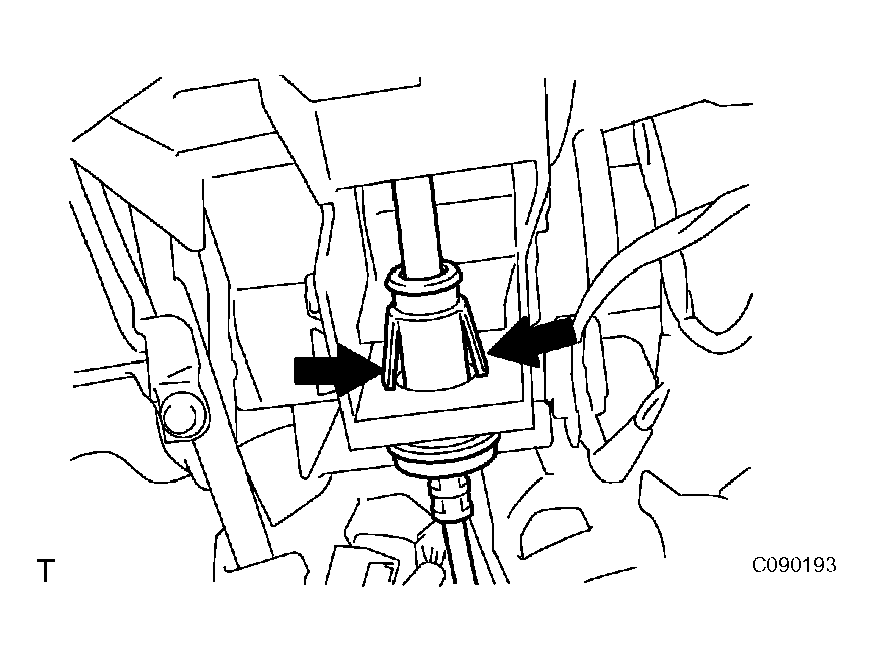

2. Using a screwdriver, disconnect the control cable from the shift lever plate.
  HINT:

  Tape up the screwdriver tip before use.

  Fig 4: Disconnecting Control Cable From Shift Lever Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FLOOR SHIFT ASSEMBLY

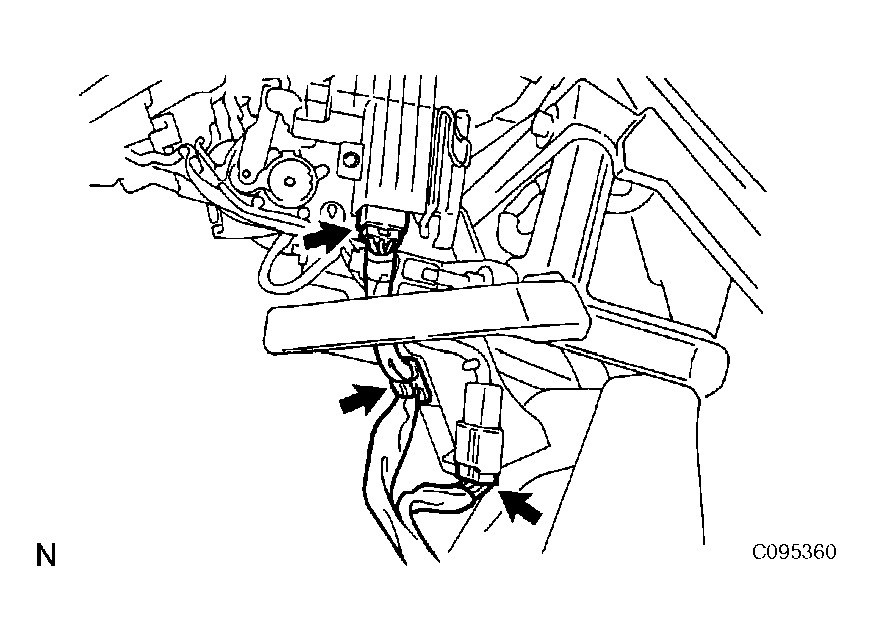

1. Disconnect the shift lock control ECU connector and indicator lamp wire connector.
2. Disconnect the wire harness clamp.

  Fig 5: Disconnecting Wire Harness Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

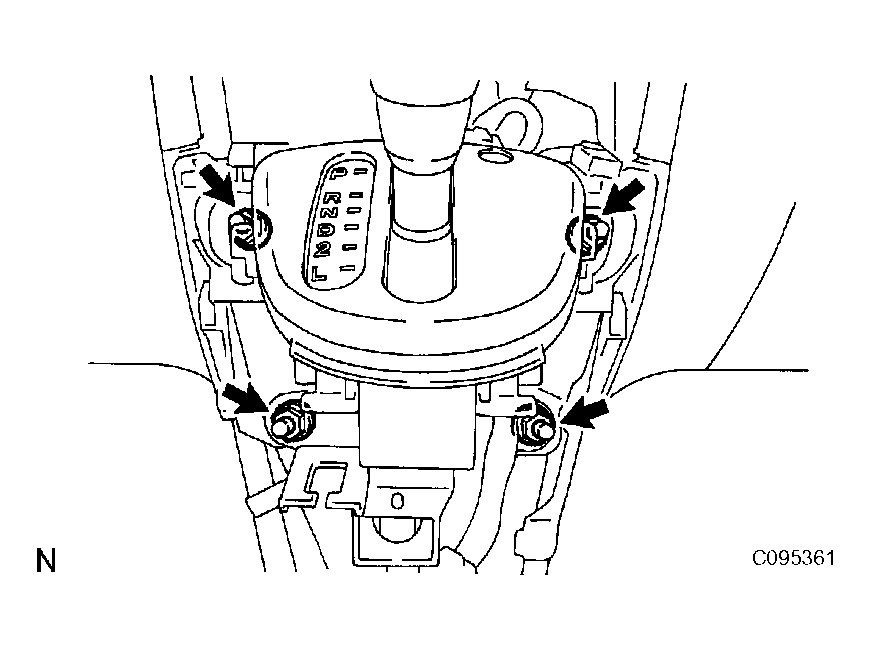

3. Remove the 4 nuts and floor shift assembly.

  Fig 6: Removing Floor Shift Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
