Front Brake Pad, Brake Caliper & Brake Rotor: Components

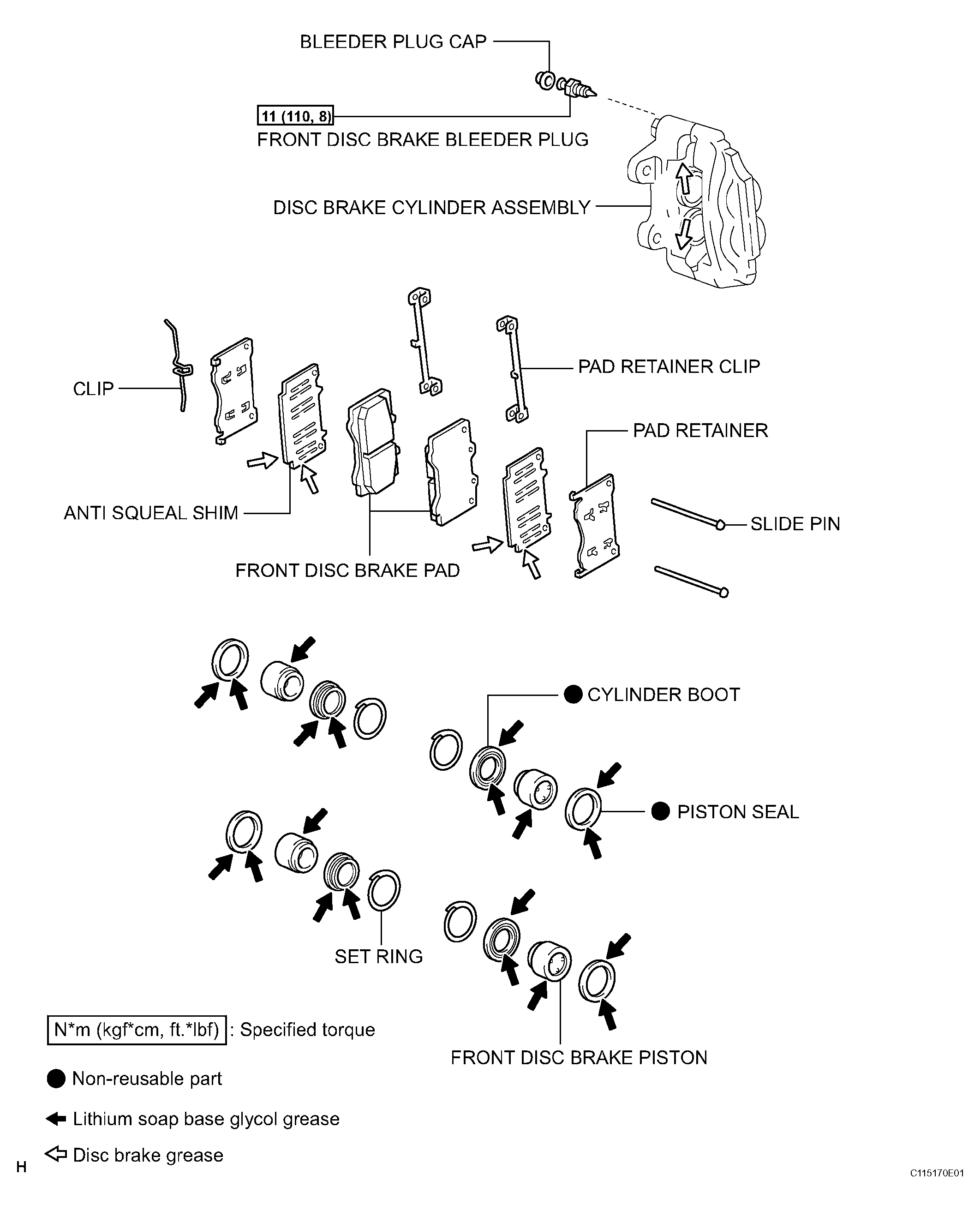

Fig 1: Identifying Front Brake Components (1 Of 2)
G04437751Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

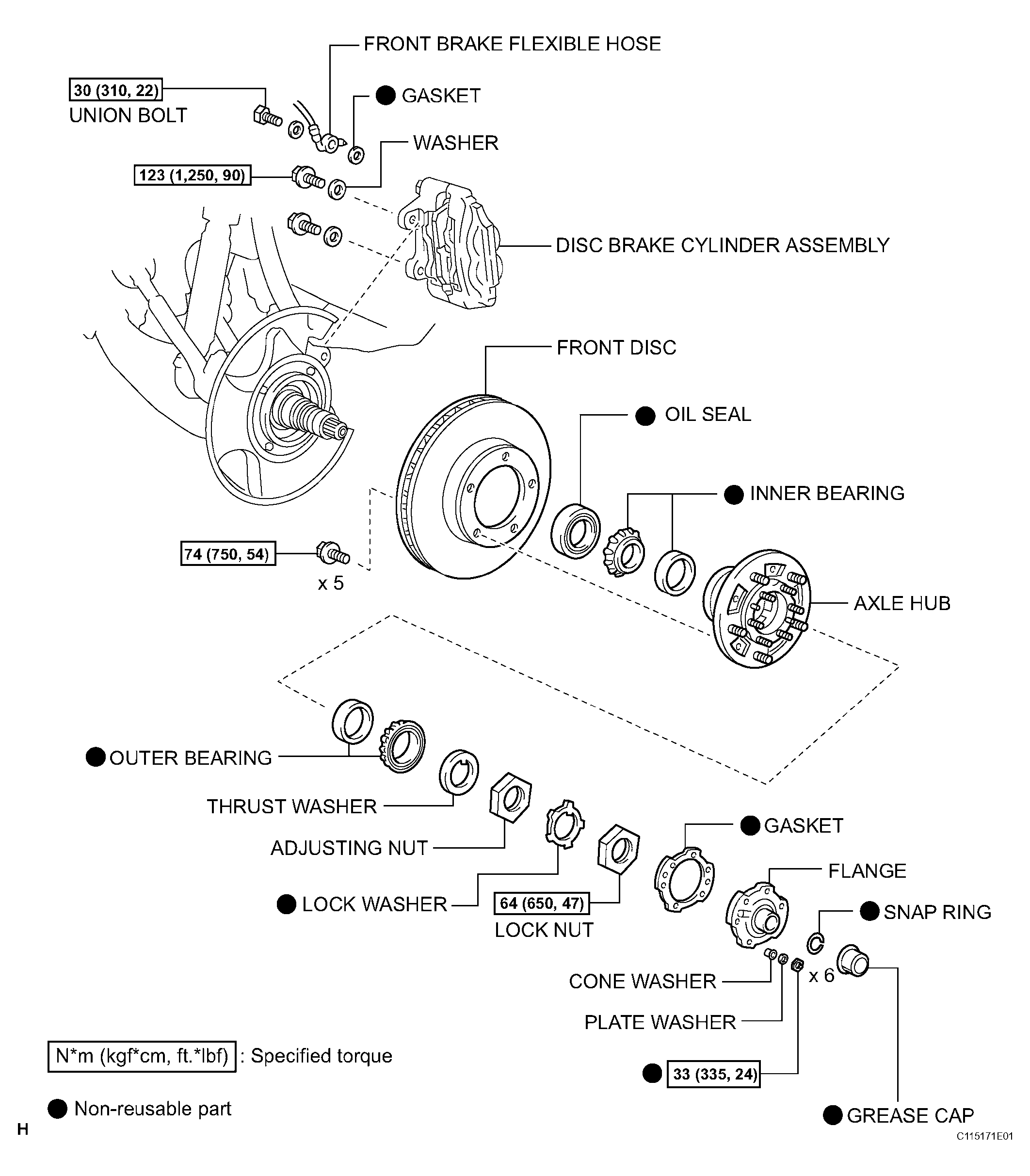

Fig 2: Identifying Front Brake Components (2 Of 2)
G04437752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
