Brake Pedal: Components

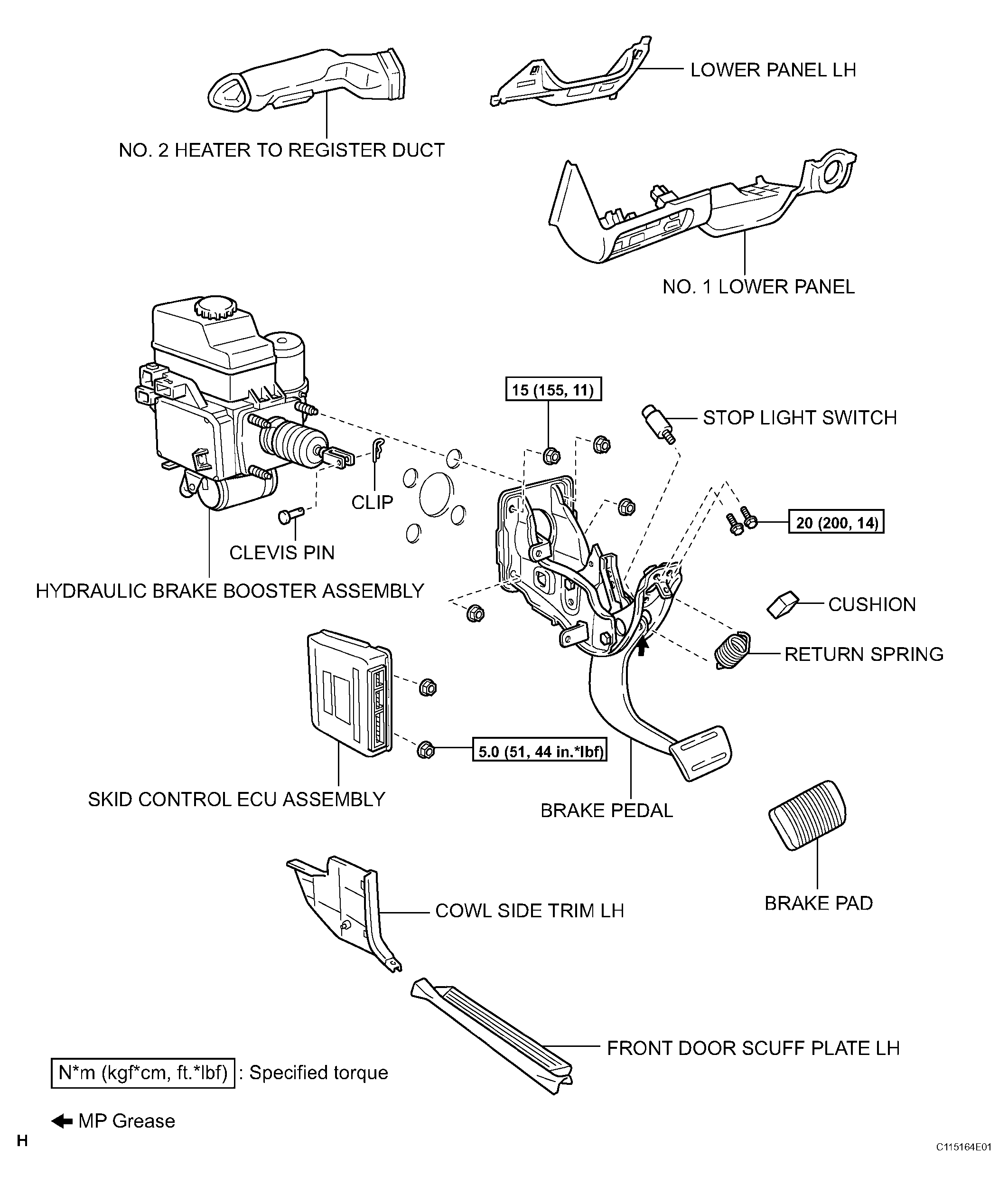

Fig 1: Identifying Brake Pedal Components

G04437713

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
