Skid Control Buzzer Circuit: Wiring Diagram

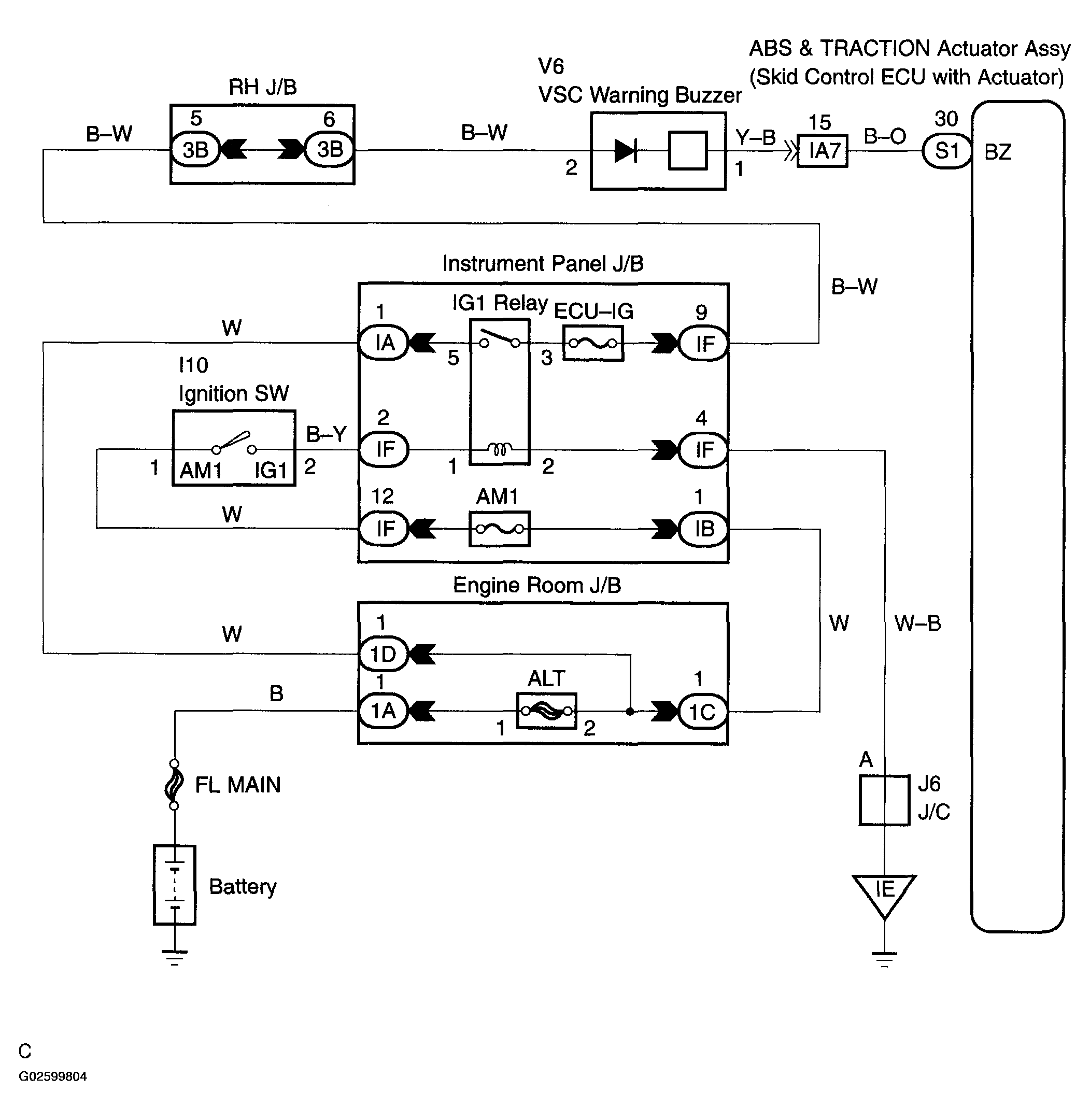

Fig 1: Wiring Diagram - Skid Control Buzzer Circuit

G02599804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
