Brakes - Abs With EBD & BA & TRAC & VSC (Diagnostics): Location

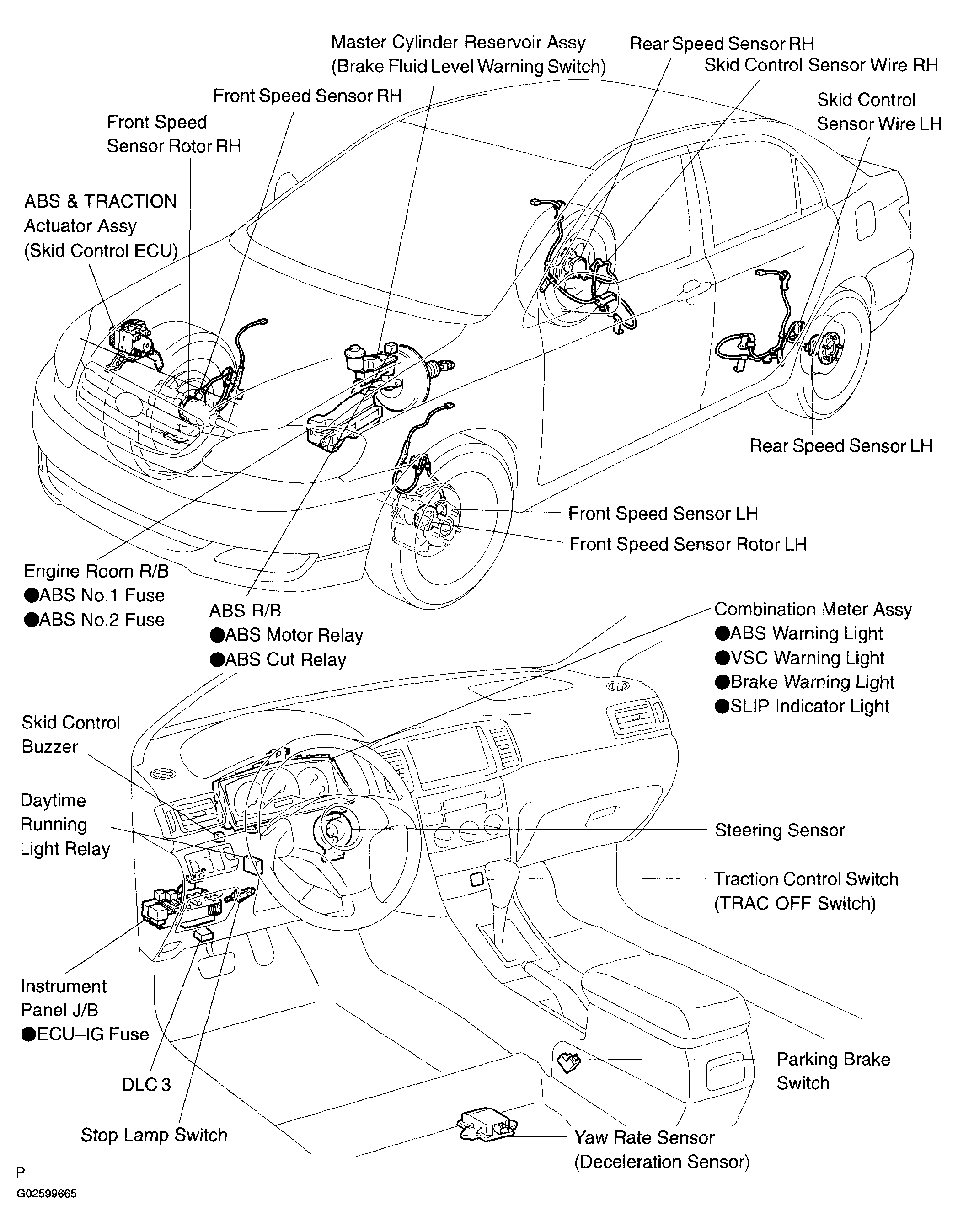

Fig 1: ABS With EBD & BA & TRAC & VSC System Components Location

G02599665

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
