Circuit Description

The master cylinder pressure sensor is connected to the skid control ECU in the actuator.

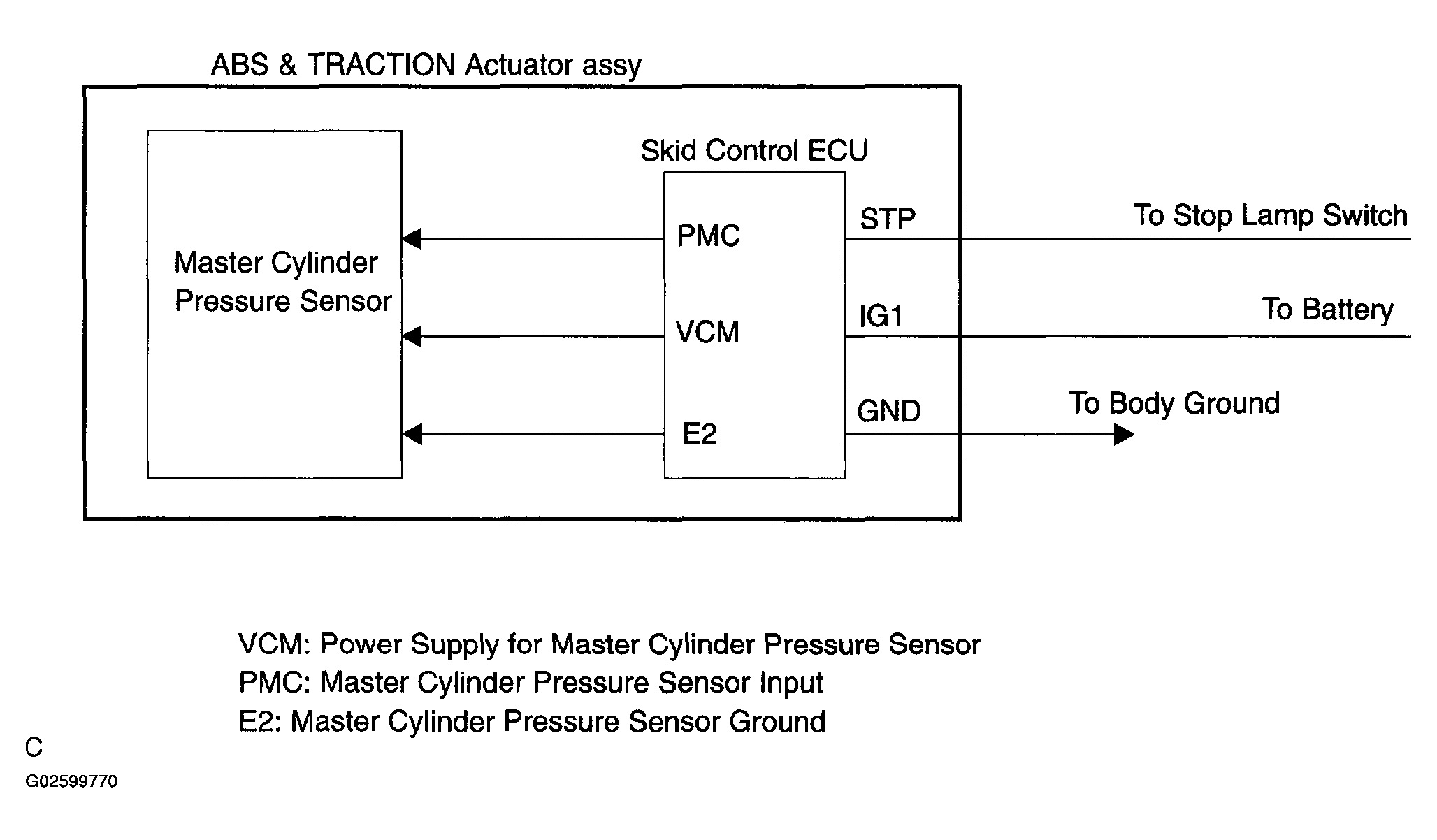

Fig 1: Circuit Diagram - Master Cylinder Pressure Sensor
G02599770Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

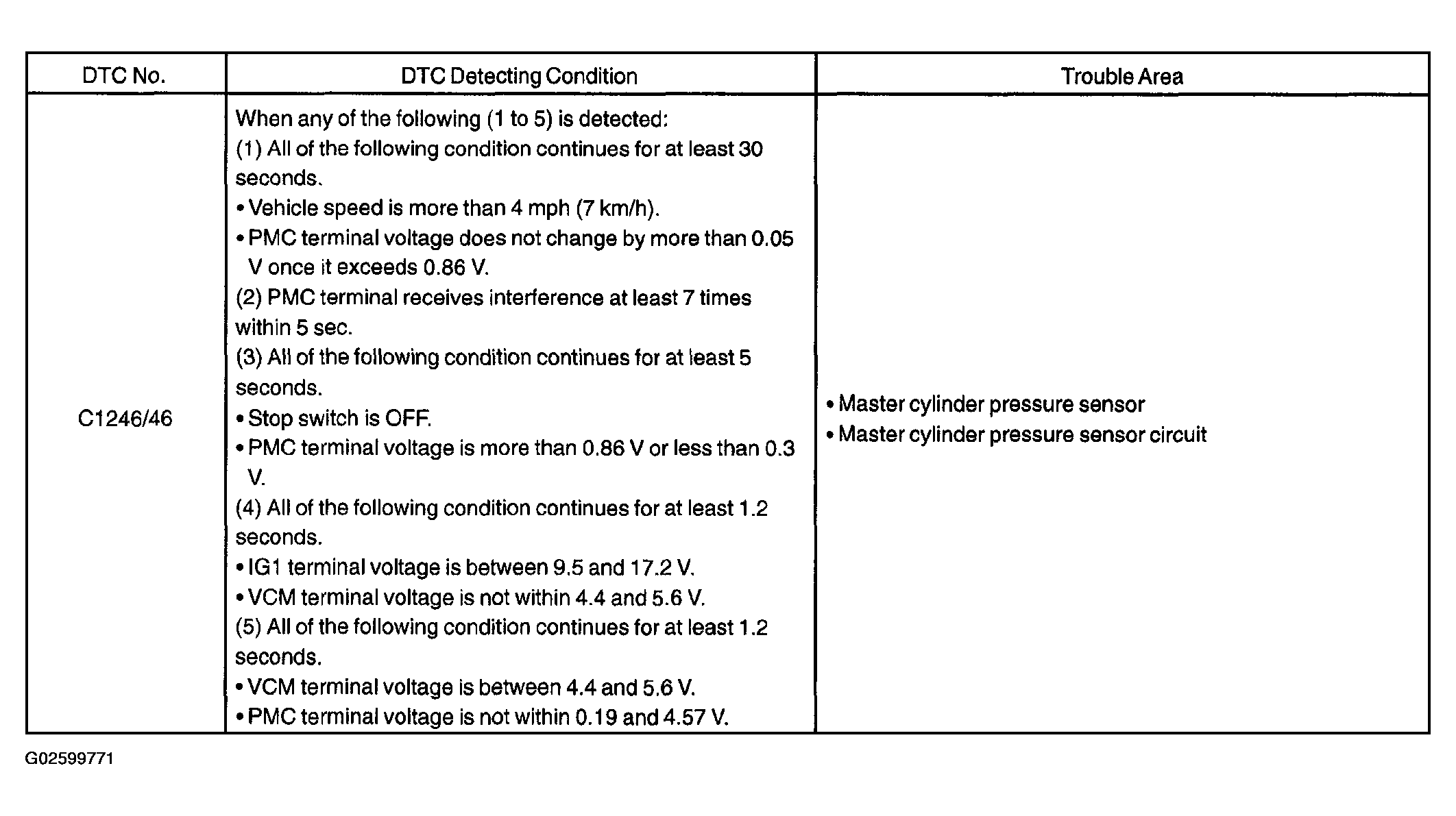

Fig 2: DTC C1246/46 Problem Diagnostic Chart
G02599771Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
