DTC C1203/53: ECM Communication Circuit Malfunction: Wiring Diagram

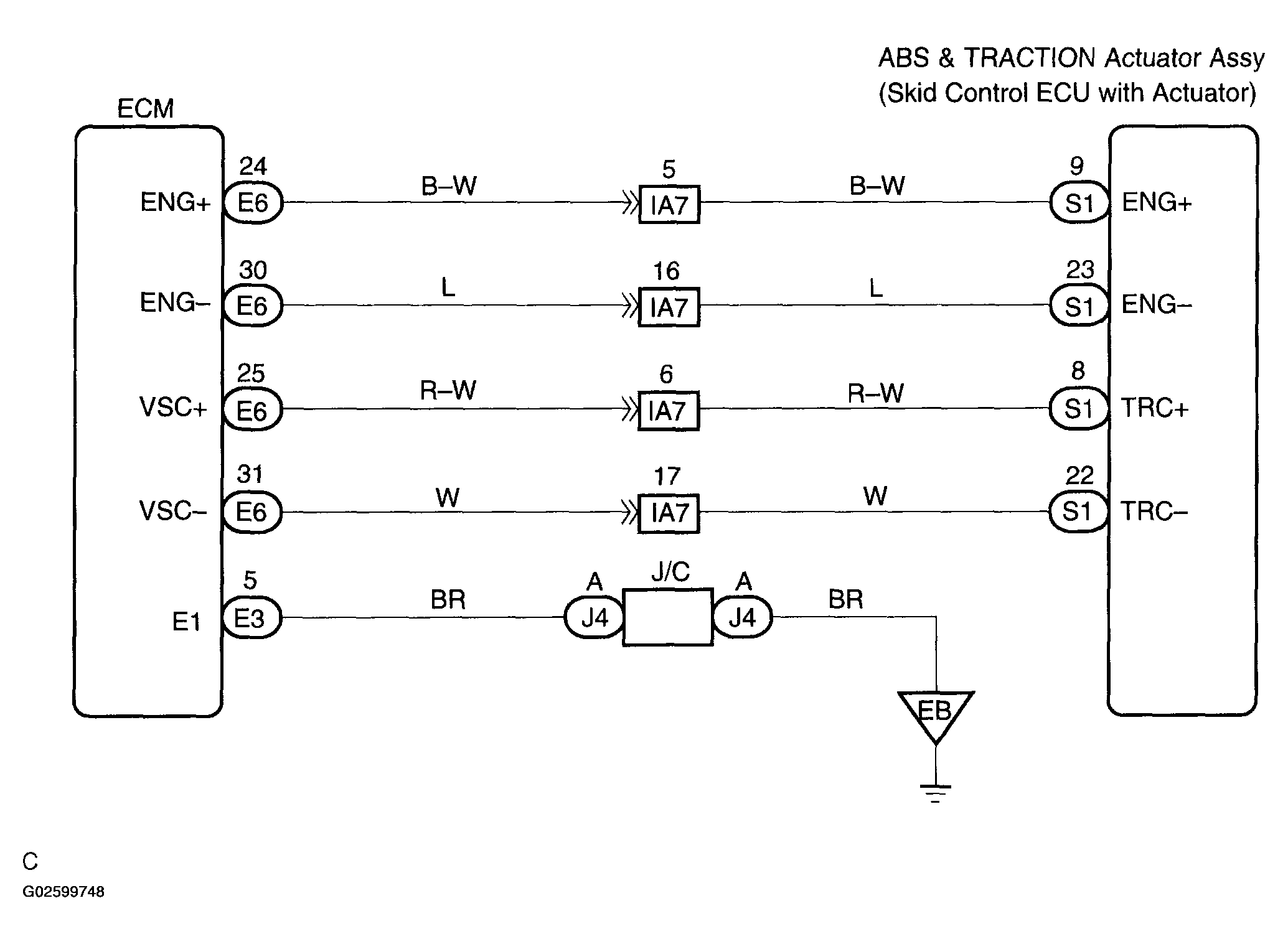

Fig 1: Wiring Diagram - ECM Communication Circuit

G02599748

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
