Circuit Description

This solenoid goes on when signals are received from the ECU and controls the pressure acting on the wheel cylinders to control the braking force.

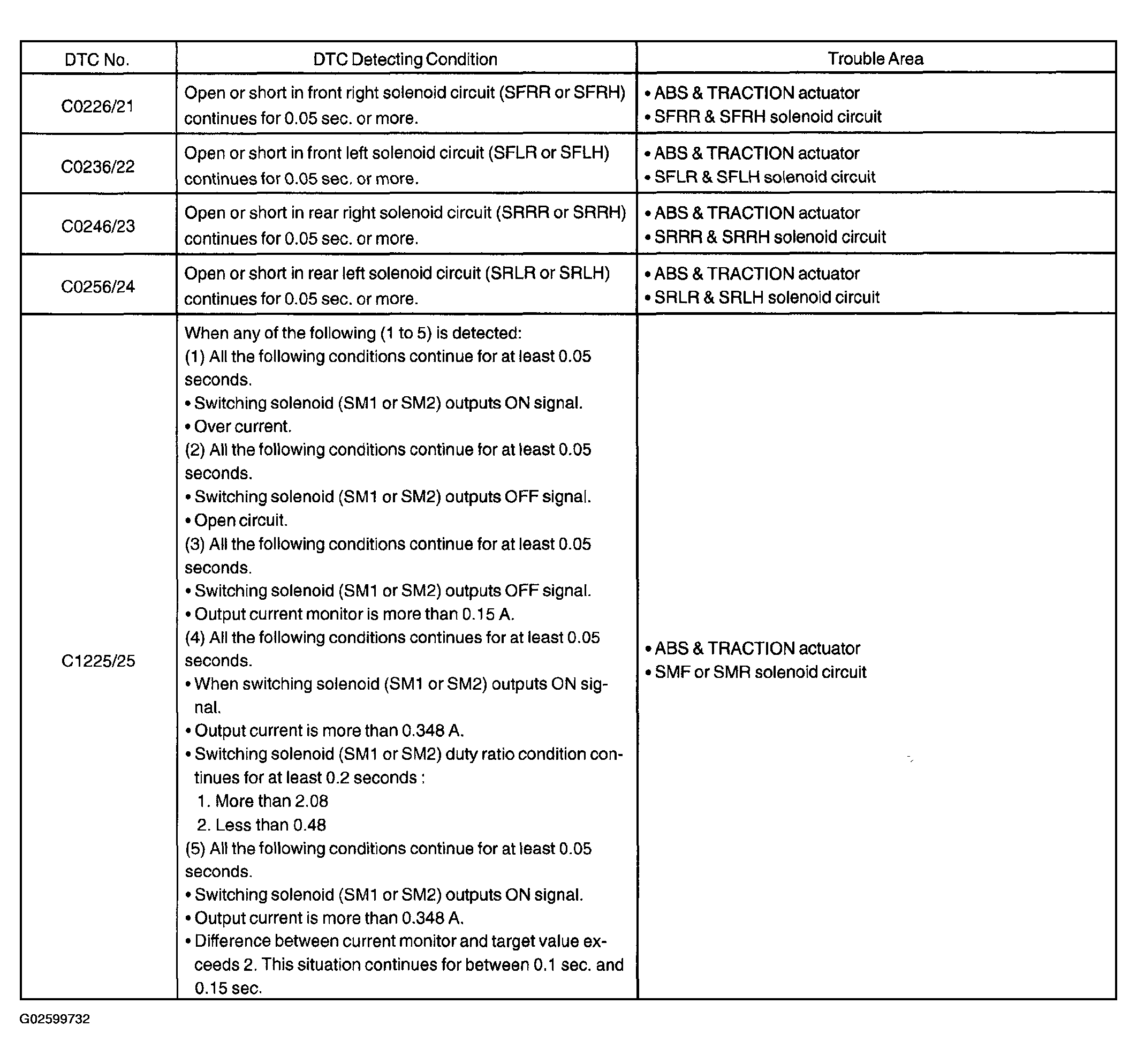

Fig 1: DTC C0226/21, C0236/22, C0246/23, C0256/24 And C1225/25 Problem Diagnostic Chart
