Steering Sensor: Replacement

  1. PRECAUTION (see  SUPPLEMENTAL RESTRAINT SYSTEM  )
  2. DISCONNECT BATTERY NEGATIVE TERMINAL (see  SUPPLEMENTAL RESTRAINT SYSTEM  )
  3. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  4. REMOVE HORN BUTTON ASSY (see  REPLACEMENT  )
  5. REMOVE STEERING WHEEL ASSY (see  OVERHAUL  )

    SST 09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)

  6. REMOVE STEERING COLUMN COVER (see  OVERHAUL  )
  7. REMOVE SPIRAL CABLE SUB-ASSY (see  REPLACEMENT  )
  8. REMOVE STEERING SENSOR
    1. Release the claws and remove the steering sensor from the spiral cable.

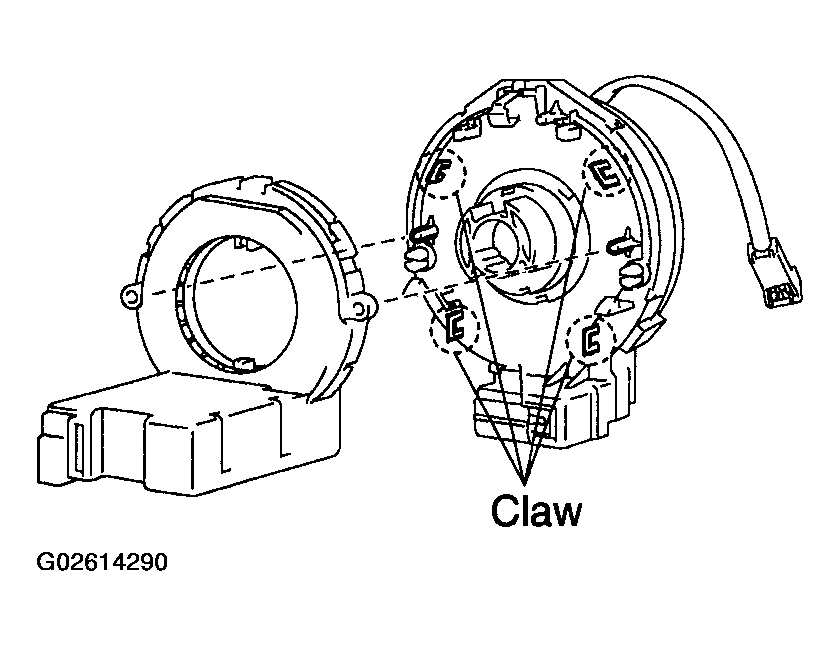

    Fig 1: Removing Steering Sensor From Spiral Cable
    G02614290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. INSTALL STEERING SENSOR
    1. Install the steering sensor onto the spiral cable.
    Fig 2: Installing Steering Sensor Onto Spiral Cable
    G02614291Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. INSPECT SPIRAL CABLE SUB-ASSY (see  REPLACEMENT  )
  11. PLACE FRONT WHEELS FACING STRAIGHT AHEAD
  12. INSTALL SPIRAL CABLE SUB-ASSY (see  REPLACEMENT  )
  13. CENTER SPIRAL CABLE (see  REPLACEMENT  )
  14. INSTALL STEERING WHEEL ASSY (see  OVERHAUL  )
  15. INSTALL HORN BUTTON ASSY (see  REPLACEMENT  )
  16. INSPECT HORN BUTTON ASSY (see  REPLACEMENT  )
  17. INSPECT SRS WARNING LIGHT (see  DIAGNOSTIC TROUBLE CODES CHECK/CLEAR  )
