Transmission Control Cable ASSY (MTM): Replacement

WARNING: This page is about a different variant/trim than selected.

HINT:

COMPONENTS: See FLOOR SHIFT LEVER ASSY

REMOVE AIR CONDITIONER UNIT ASSY (see OVERHAUL )
HINT:

Refer to the instructions for removal of the air conditioner unit assy.
SEPARATE AIR BAG SENSOR ASSY CENTER
1. Remove the 3 bolts, and separate the airbag sensor assy center.
REMOVE EXHAUST PIPE ASSY
- 1ZZ-FE engine type: (see REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- 2ZZ-GE engine type: (see REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
REMOVE FRONT FLOOR HEAT INSULATOR NO.1
1. Remove the 3 nuts and heat insulator No.1.
SEPARATE FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Remove the clip and separate the end of the shift cable from the shift lever assy.

  Fig 1: Removing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the cable outer spring.
3. Turn the lock, and separate the shift cable from the shift lever retainer.

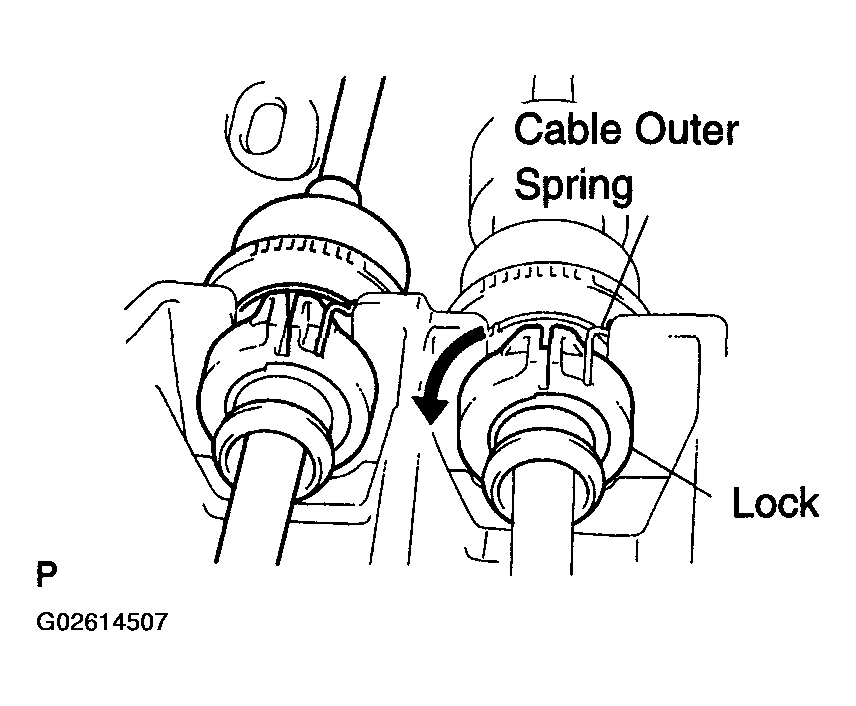

Fig 2: Releasing Cable Outer Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Remove the clip and separate the end of the select cable from the shift lever assy.

  Fig 3: Removing Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, release the cable outer spring.
3. Turn the lock, and separate the select cable from the shift lever retainer.
Fig 4: Releasing Cable Outer Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE TRANSMISSION CONTROL CABLE ASSY
1. Remove the 2 clips and 2 washers, and separate the top of the control cable assy from the transaxle.
2. Remove the 2 clips, and separate the control cable assy from the control cable bracket.

  Fig 5: Removing Clips And Washers
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 nuts and clamp.

  Fig 6: Removing Nuts And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the 2 bolts from the retainer.
5. Pull out the control cable assy from the floor.

  Fig 7: Removing Bolts From Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. Remove the retainer from the grommet.
7. Remove the control cable assy from the grommet.
Fig 8: Removing Retainer From Grommet
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL TRANSMISSION CONTROL CABLE ASSY
1. Install the control cable assy to the grommet.
2. Install the retainer to the grommet.
  NOTE: Fit the 4 projections of the grommet into the 4 holes of the retainer.

  Fig 9: Installing Retainer To Grommet
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the control cable assy with the 2 bolts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

  Fig 10: Installing Control Cable Assy Bolts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Install the clamp with the 2 nuts.
  Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

  Fig 11: Installing Clamp Nuts
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the control cable assy to the control cable bracket, and install 2 new clips.
6. Connect the control cable assy to the transaxle, and install the 2 washers and 2 clips.
Fig 12: Installing Washers And Clips
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
1. Connect the end of the select cable and clip to the shift lever assy.

  Fig 13: Connecting End Of Select Cable And Clip
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the select cable to the retainer of the shift lever assy, and turn the lock.
  NOTE: The projecting part of the lock should face upward when the select cable is installed.
3. Install the cable outer spring to the lock.
NOTE: Make sure that after installation the cable outer spring is moved to the place shown in the illustration.

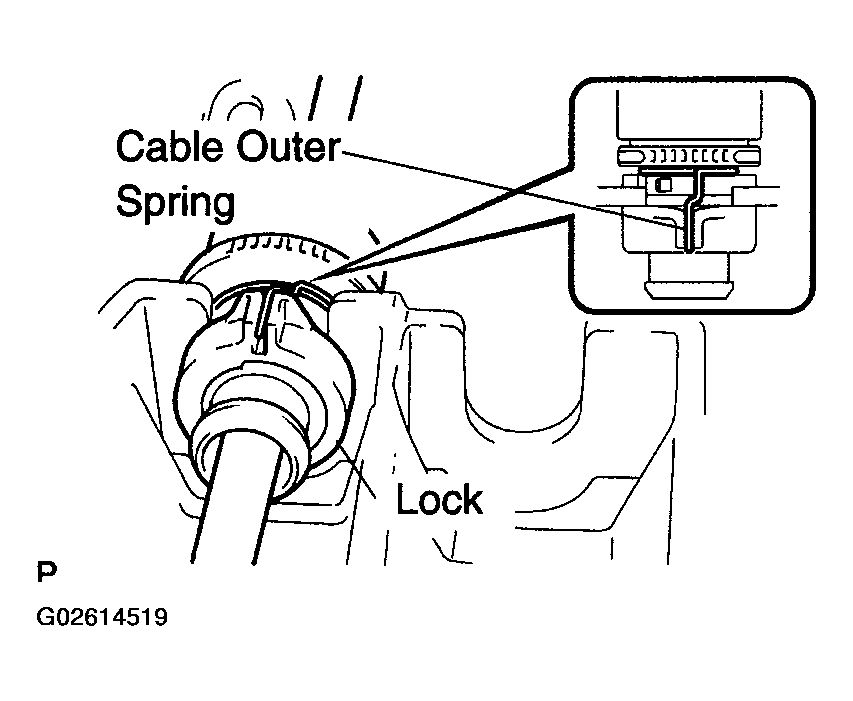

Fig 14: Installing Cable Outer Spring To Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
1. Connect the end of the shift cable and clip to the shift lever assy.

  Fig 15: Connecting End Of Shift Cable And Clip To Shift Lever Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the shift cable to the retainer of the shift lever assy, and turn the lock.
  NOTE: The projecting part of the lock should face upward when the shift cable is installed.
3. Install the cable outer spring to the lock.
NOTE: Make sure that after installation the cable outer spring is moved to the place shown in the illustration.

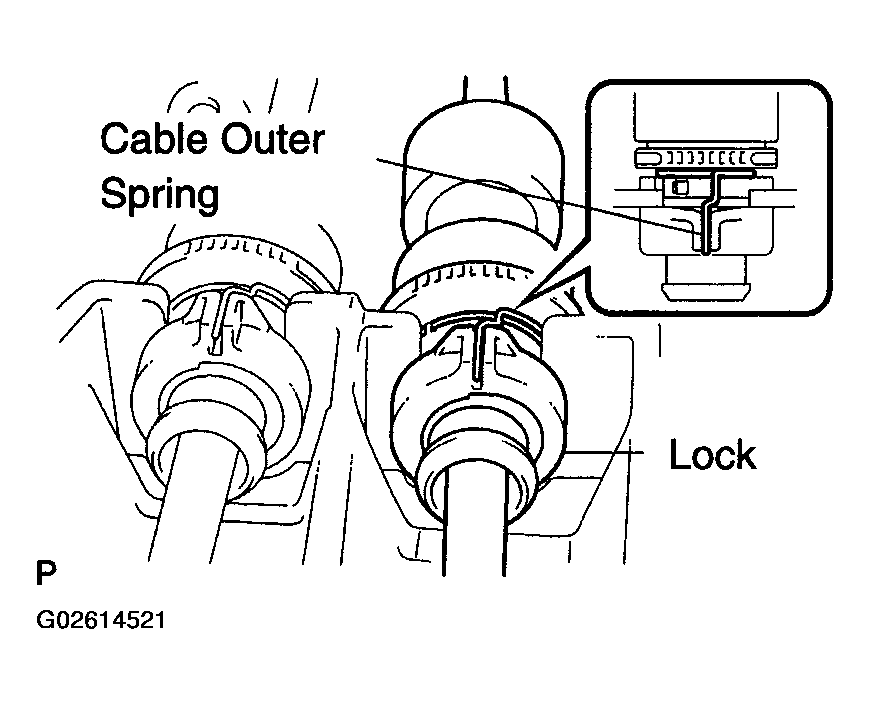

Fig 16: Installing Cable Outer Spring To Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FLOOR HEAT INSULATOR NO.1
1. Install the heat insulator No.1 with the 3 nuts.
  Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
INSTALL EXHAUST PIPE ASSY
- 1ZZ-FE engine type: (see REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
- 2ZZ-GE engine type: (see REMOVAL & INSTALLATION AND DISASSEMBLY & REASSEMBLY )
CONNECT AIR BAG SENSOR ASSY CENTER
1. Install the airbag sensor assy center with the 3 bolts.
  Torque: 18 N.m (180 kgf.cm, 13 ft.lbf)
INSPECT SRS WARNING LIGHT (SEE DIAGNOSTIC TROUBLE CODES CHECK/CLEAR )
