Shift & Select Lever Shaft ASSY (C60): Overhaul

WARNING: This page is about a different variant/trim than selected.

REMOVE CONTROL SHIFT LEVER BUSH
1. Remove the control shift lever bush from the selecting bellcrank assy.
Fig 1: Removing Control Shift Lever Bush
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SELECTING BELLCRANK DUST COVER NO.1
1. Remove the selecting bellcrank dust cover No.1 from the selecting bellcrank assy.
Fig 2: Removing Selecting Bellcrank Dust Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SELECTING BELL CRANK NO.2
1. Remove the nut, spring washer and selecting bellcrank assy No.2 plate washer.
2. Remove the selecting bellcrank No.2 from the selecting bellcrank support.
Fig 3: Removing Selecting Bell Crank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SELECTING BELLCRANK DUST COVER NO.2
1. Remove the selecting bellcrank dust cover No.2 from the selecting bellcrank No.2.
Fig 4: Removing Selecting Bellcrank Dust Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SELECTING BELLCRANK NO.2 BUSH
1. Remove the 2 selecting bellcrank No.2 bushes from the selecting bellcrank No.2.
Fig 5: Removing Selecting Bellcrank Bush
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SELECT SPRING SEAT NO.2
1. Using a screwdriver, remove the E-ring from the shift & select lever shaft assy.

  Fig 6: Removing Select Spring Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the select spring seat No.2 and select return spring No.2 from the shift & select lever shaft assy.
Fig 7: Removing Select Spring Seat And Select Return Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER INNER NO.2
1. Using a pin punch (phi 5 mm) and a hammer, remove the shift & select lever inner No.2 slotted pin from the shift & select lever shaft assy.

  Fig 8: Removing Shift Lever Inner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the shift lever inner No.2 from the shift & select lever shaft assy.
Fig 9: Removing Shift Lever Inner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT LEVER INNER NO.1
1. Using a pin punch (phi 5 mm) and a hammer, remove the shift lever inner No.1 slotted pin from the shift & select lever shaft assy.

  Fig 10: Removing Shift Lever Inner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the shift lever inner No.1 and shift inter lock plate from the shift & select lever shaft assy.

  Fig 11: Removing Shift Lever Inner And Shift Inter Lock Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the select spring seat No.1 and select return spring No.1 from the shift & select lever shaft assy.
Fig 12: Removing Select Spring Seat And Select Return Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT & SELECT LEVER SHAFT SUPPORT
1. Using a snap ring expander, remove the snap ring from the control shaft cover.

  Fig 13: Removing Shift & Select Lever Shaft Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the shift & select lever shaft support and reverse select pin compression spring from the control shaft cover.
Fig 14: Removing Shift & Select Lever Shaft Support And Reverse Select Pin Compression Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHIFT & SELECT LEVER SHAFT
1. Remove the shift & select lever shaft and shift & select lever shaft dust boot from the control shaft cover.
Fig 15: Removing Shift & Select Lever Shaft
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE CONTROL SHAFT COVER OIL SEAL
1. Using a screwdriver and a hammer, remove the control shaft cover oil seal from the control shaft cover.
Fig 16: Removing Control Shaft Cover Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

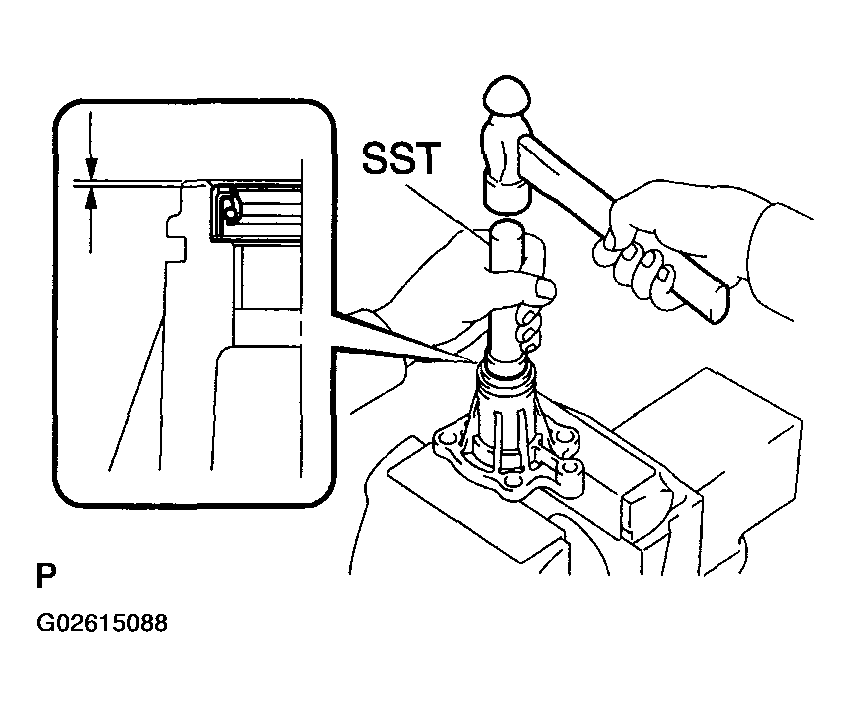

INSTALL CONTROL SHAFT COVER OIL SEAL
1. Coat the new control shaft cover oil seal with MP grease.
2. Using SST and a hammer, install the control shaft cover oil seal to the control shaft cover.
  SST 09950-60010 (09951-00280), 09950-70010 (09951-07150)

  Driven in depth: 0.2 to 1.2 mm (0.0079 to 0.0473 in.)
Fig 17: Installing Control Shaft Cover Oil Seal
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT & SELECT LEVER SHAFT
1. Coat the shift & select lever shaft with gear oil.
2. Install the shift & select lever shaft with shift & select lever shaft dust boot to the control shaft cover.
HINT:

Install the shift & select lever shaft boot with the projection up and the hole side down.

Fig 18: Installing Shift & Select Lever Shaft Boot
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHIFT & SELECT LEVER SHAFT SUPPORT
1. Install the shift & select lever shaft support and reverse select pin compression spring to the control shaft cover.

  Fig 19: Installing Shift & Select Lever Shaft Support
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a snap ring expander and a screwdriver, install the snap ring to the control shaft cover.
Fig 20: Installing Snap Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

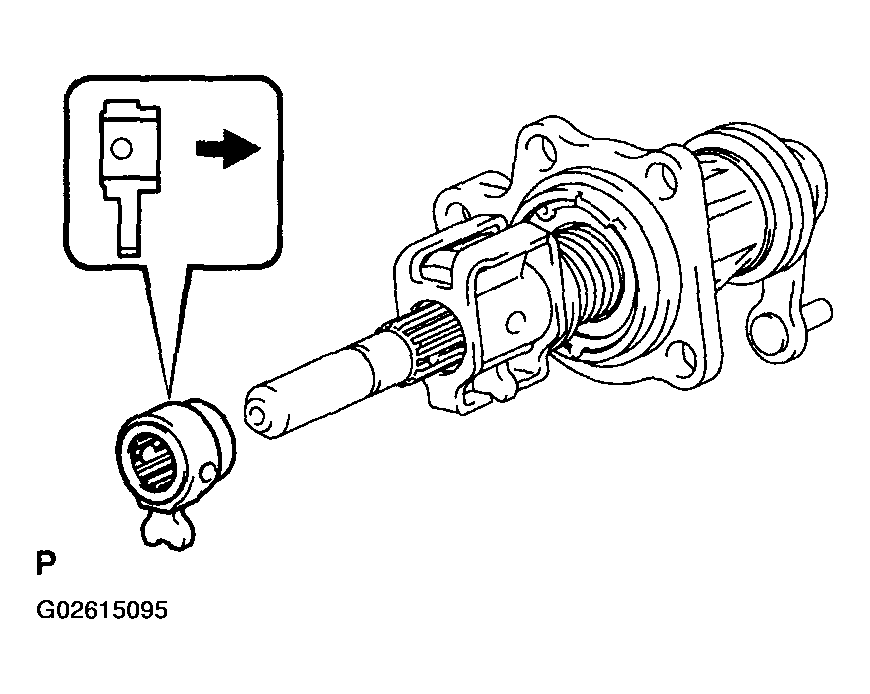

INSTALL SHIFT LEVER INNER NO.1
1. Install the select spring seat No.1 with select return spring No.1 to the shift & select lever shaft assy.

  Fig 21: Installing Shift Lever Inner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Coat the shift lever inner No.1 with MP grease.

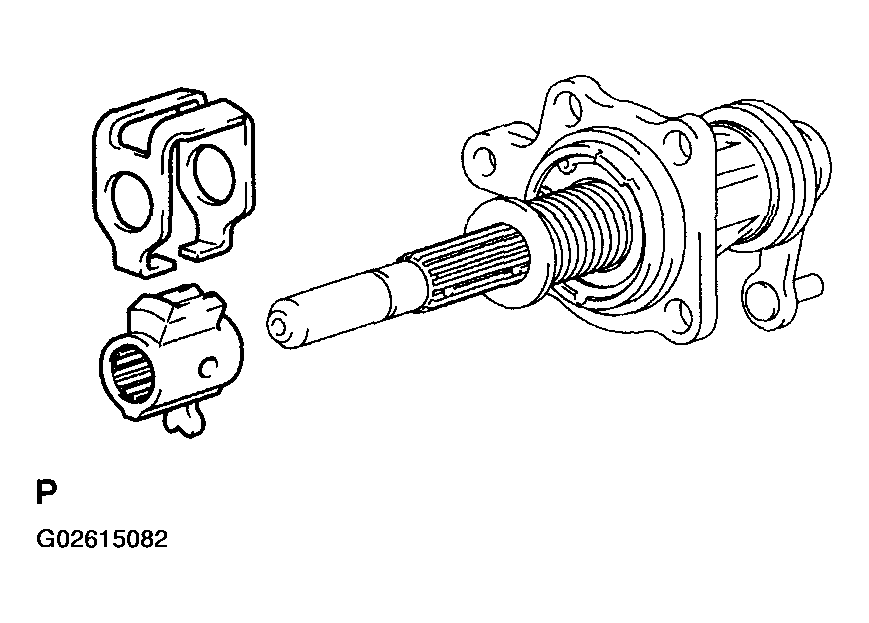

3. Install the shift lever inner No.1 with shift inter lock plate to the shift & select lever shaft assy.

  Fig 22: Installing Shift Lever Inner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Using a pin punch (phi 5 mm) and a hammer, install the shift lever inner No.1 slotted pin to the shift & select lever shaft assy.
  Driven in depth: -0.5 to 0.5 mm (-0.0197 to 0.0197 In.)
Fig 23: Installing Shift Lever Inner
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

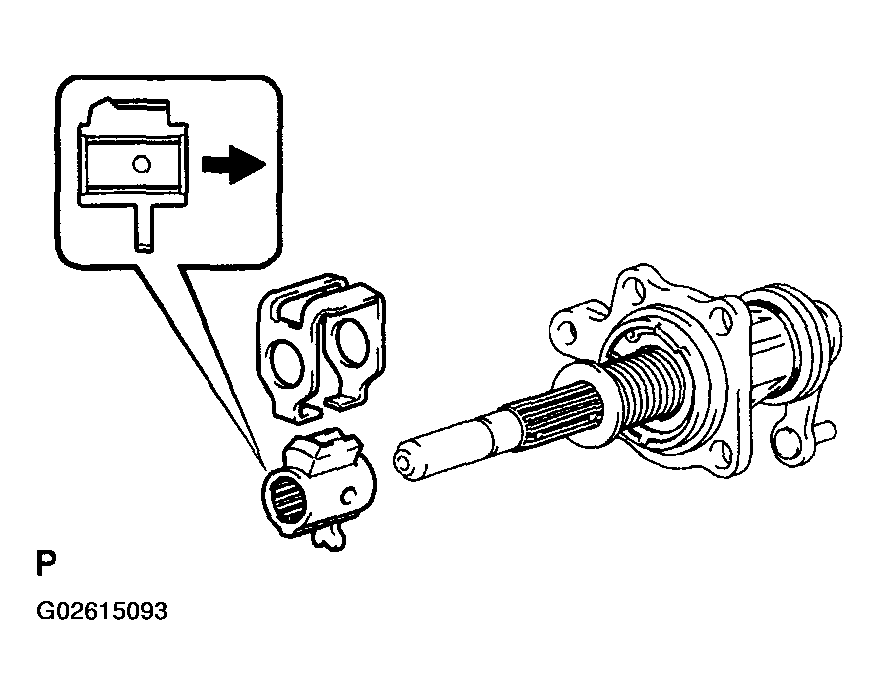

INSTALL SHIFT LEVER INNER NO.2
1. Coat the shift lever inner No.2 with MP grease.
2. Install the shift & select lever inner No.2 to the shift & select lever shaft assy.

  Fig 24: Installing Shift Lever Inner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

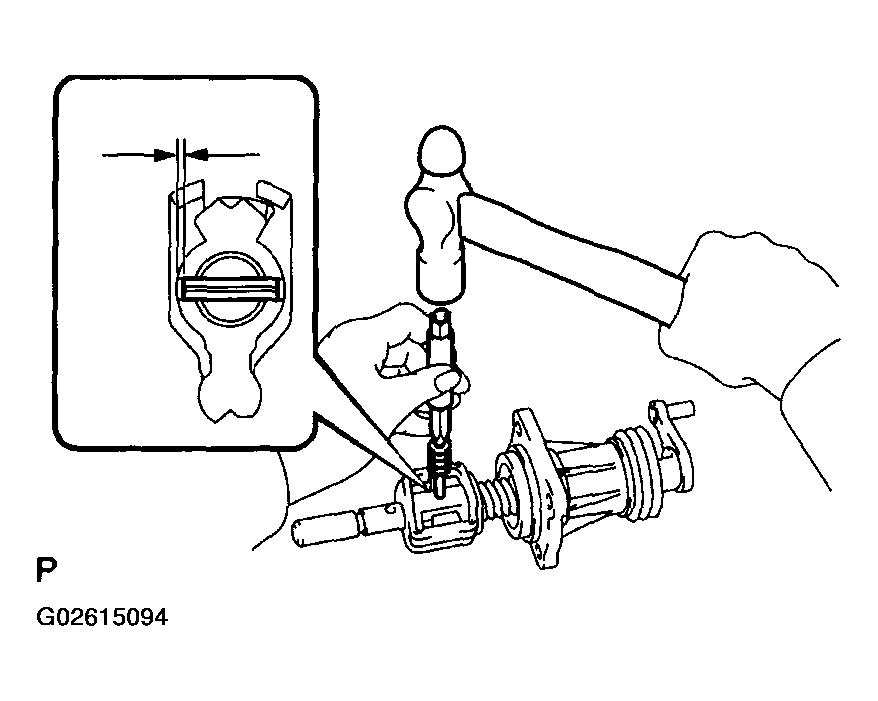

3. Using a pin punch (phi 5 mm) and a hammer, install the shift & select lever inner No.2 slotted pin to the shift & select lever shaft assy.
  Driven in depth: 3.0 to 4.0 mm (0.1181 to 0.1575 in.)
Fig 25: Installing Shift & Select Lever Inner Slotted Pin
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SELECT SPRING SEAT NO.2
1. Install the select spring seat No.2 with select return spring No.2 to the shift & select lever shaft assy.

  Fig 26: Installing Select Spring Seat
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a brass bar and a hammer, install the E-ring to the shift & select lever shaft assy.
NOTE: Do not damage the shift & select lever shaft assy.

Fig 27: Installing E-Ring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SELECTING BELLCRANK NO.2 BUSH
1. Coat the 2 selecting bellcrank No.2 bushes with MP grease, install them to the selecting bellcrank No.2.
Fig 28: Installing Selecting Bellcrank Bush
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SELECTING BELLCRANK DUST COVER NO.2
1. Coat the selecting bellcrank dust cover No.2 with MP grease, install it to the selecting bellcrank No.2.
Fig 29: Installing Selecting Bellcrank Dust Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SELECTING BELL CRANK NO.2
1. Install the selecting bellcrank No.2, selecting bellcrank No.2 plate washer, spring washer and nut.
  Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)
Fig 30: Installing Selecting Bell Crank
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SELECTING BELLCRANK DUST COVER NO.1
1. Install the selecting bellcrank dust cover No.1 to the selecting bellcrank assy.
Fig 31: Installing Selecting Bellcrank Dust Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL CONTROL SHIFT LEVER BUSH
1. Coat the control shift lever bush with MP grease.
2. Install control shift lever bush to the selecting bellcrank assy.
Fig 32: Installing Control Shift Lever Bush
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
