Shift & Select Lever Shaft ASSY (C59): Overhaul

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE CONTROL SHIFT LEVER BUSH
    1. Remove the control shift lever bush from the selecting bellcrank assy.
    Fig 1: Removing Control Shift Lever Bush
    G02615047Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE SELECTING BELLCRANK DUST COVER NO.1
    1. Remove the selecting bellcrank dust cover No.1 from the selecting bellcrank assy.
    Fig 2: Removing Selecting Bellcrank Dust Cover
    G02615048Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE SELECTING BELL CRANK NO.2
    1. Remove the nut, spring washer and selecting bellcrank No.2 plate washer.
    2. Remove the selecting bellcrank No.2 from the selecting bellcrank support.
    Fig 3: Removing Nut
    G02615049Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE SELECTING BELLCRANK DUST COVER NO.2
    1. Remove the selecting bellcrank dust cover No.2 from the selecting bellcrank No.2.
    Fig 4: Removing Selecting Bellcrank Dust Cover
    G02615050Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE SELECTING BELLCRANK NO.2 BUSH
    1. Remove the 2 selecting bellcrank No.2 bushes from the selecting bellcrank No.2.
    Fig 5: Removing Selecting Bellcrank No.2 Bush
    G02615051Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. REMOVE SELECT SPRING SEAT NO.2
    1. Using a screwdriver, remove the E-ring, select spring seat No.2 and select return spring No.2 from the shift & select lever shaft.
    Fig 6: Removing Select Spring Seat
    G02615052Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE SHIFT LEVER INNER NO.2
    1. Using a pin punch (phi 5 mm) and a hammer, remove the slotted spring pin and shift lever inner No.2 from the shift & select lever shaft.

    HINT:

    Make sure the orientation of the shift lever inner No.2.

    Fig 7: Removing Shift Lever Inner
    G02615053Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. REMOVE SHIFT LEVER INNER NO.1
    1. Using a pin punch (phi 5 mm) and a hammer, remove the slotted spring pin, shift lever inner No.1 and shift inter lock plate from the shift & select lever shaft.

    HINT:

    Make sure the orientation of the shift lever inner No.1.

    Fig 8: Removing Slotted Spring Pin
    G02615054Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. REMOVE SELECT INNER LEVER
    1. Using a pin punch (phi 5 mm) and a hammer, remove the slotted spring pin, select inner lever, select return spring No.1 and select return spring seat No.1.

    HINT:

    Make sure the orientation of the select inner lever.

    Fig 9: Removing Select Inner Lever
    G02615055Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. REMOVE CONTROL SHAFT COVER
    1. Using 2 screwdrivers and a hammer, tap out the snap ring.

      HINT:

      Use a shop rag to keep the snap ring from flying.

    2. Remove the control shaft cover and shift & select lever shaft dust boot.
    Fig 10: Removing Snap Ring
    G02615056Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. REMOVE CONTROL SHAFT COVER OIL SEAL
    1. Using a screwdriver, remove the control shaft cover oil seal from the control shaft cover.
    Fig 11: Removing Control Shaft Cover Oil Seal
    G02615057Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  12. INSTALL CONTROL SHAFT COVER OIL SEAL
    1. Using SST and a hammer, install a new control shaft cover oil seal to the control shaft cover.

      SST 09950-60010 (09951-00220), 09950-70010 (09951-07100)

      Drive in depth: 0.2 to 1.2 mm (0.0079 to 0.0473 in.)

    2. Coat the lip of control shaft cover oil seal with MP grease.

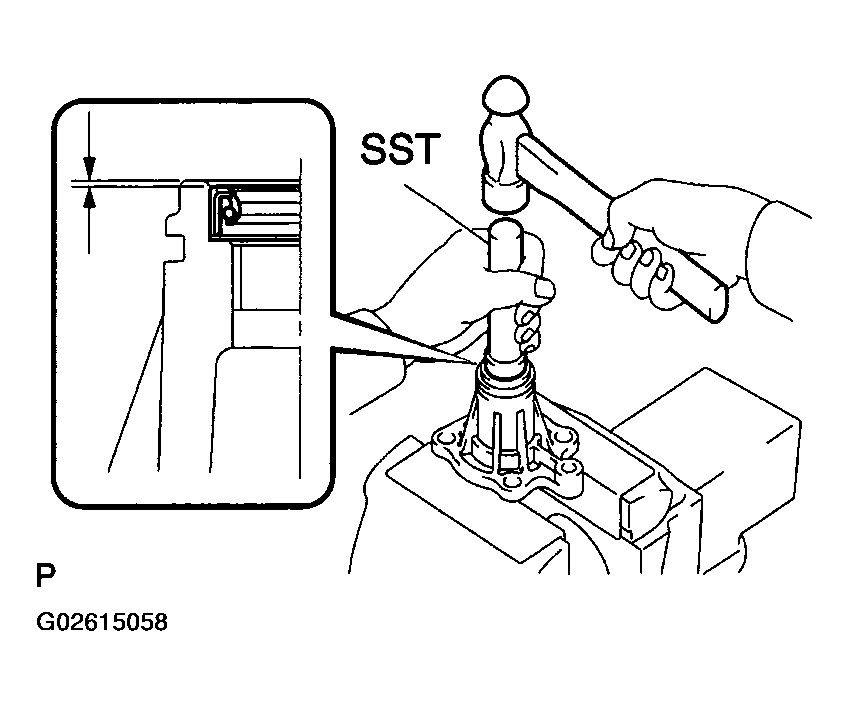

    Fig 12: Installing Control Shaft Cover Oil Seal
    G02615058Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  13. INSTALL CONTROL SHAFT COVER
    1. Coat the shift & select lever shaft dust boot with MP grease, install it to the control shaft cover.
    2. Install the control shaft cover to the shift & select lever shaft.
      Fig 13: Installing Control Shaft Cover
      G02615059Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      HINT:

      Install the dust boot with the projection up and the hole side down.

    3. Coat the shift & select lever shaft with MP grease.
    4. Using a brass bar and a hammer, tap in the snap ring to the shift & select lever shaft.
    Fig 14: Installing Snap Ring
    G02615060Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  14. INSTALL SELECT INNER LEVER
    1. Coat the select return spring seat No.1 with MP grease, install it to the shift & select lever shaft.
    2. Install the select return spring No.1 and select inner lever to the shift & select lever shaft.
    3. Using a pin punch (phi 5 mm) and a hammer, install the slotted spring pin to the select lever inner lever.

      Drive in depth: 3.0 to 4.0 mm (0.1181 to 0.1575 in.)

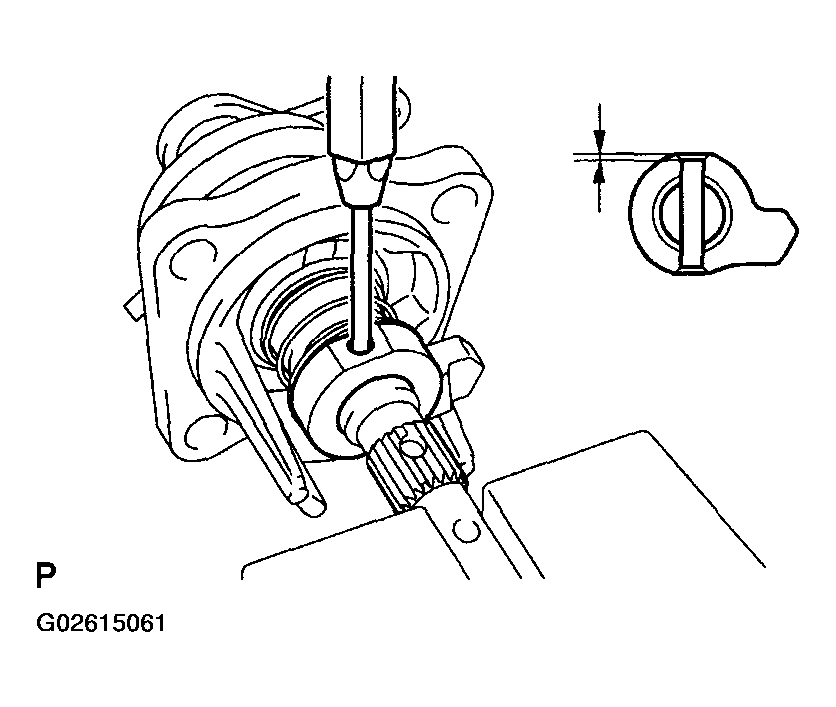

    Fig 15: Installing Select Inner Lever
    G02615061Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  15. INSTALL SHIFT LEVER INNER NO.1
    1. Coat the shift inter lock plate and shift lever inner No.1 with MP grease.
    2. Install the shift inter lock plate with shift lever inner No.1 to the shift & select lever shaft.
    3. Using a pin punch (phi 5 mm) and a hammer, install the slotted spring pin to the shift lever inner No.1.

      Drive in depth: -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

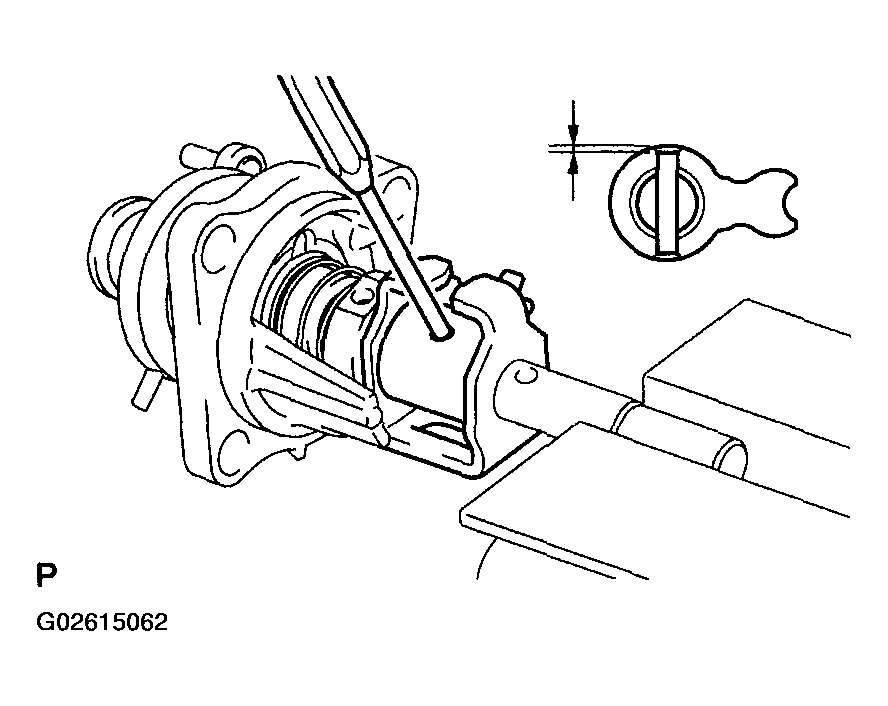

    Fig 16: Installing Shift Lever Inner
    G02615062Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  16. INSTALL SHIFT LEVER INNER NO.2
    1. Install the shift lever inner No.2 to the shift & select lever shaft.
    2. Using a pin punch (phi 5 mm) and a hammer, install the slotted spring pin to the shift lever inner No.2.

      Drive in depth: -0.5 to 0.5 mm (-0.0197 to 0.0197 in.)

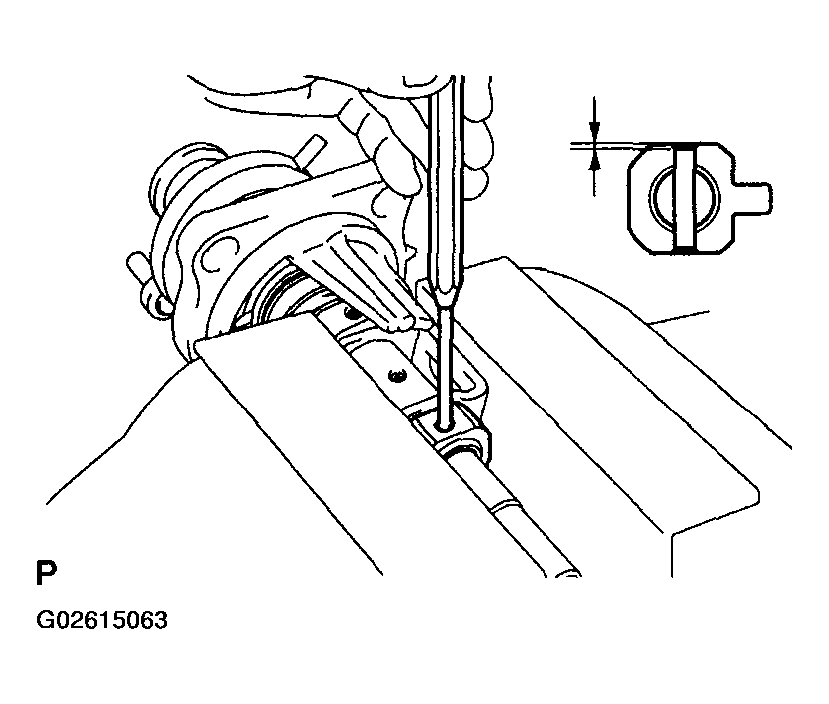

    Fig 17: Installing Shift Lever Inner
    G02615063Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  17. INSTALL SELECT SPRING SEAT NO.2
    1. Coat the select spring seat No.2 with MP grease, install it with select return spring No.2 to the shift & select lever shaft.
    2. Using a plier, install the E-ring to the shift & select lever shaft.
    Fig 18: Installing Select Spring Seat
    G02615064Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  18. INSTALL SELECTING BELLCRANK NO.2 BUSH
    1. Coat the 2 selecting bellcrank No.2 bushes with MP grease, install them to the selecting bellcrank No.2.
    Fig 19: Installing Selecting Bellcrank Bush
    G02615065Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  19. INSTALL SELECTING BELLCRANK DUST COVER NO.2
    1. Coat the selecting bellcrank dust cover No.2 with MP grease, install it to the selecting bellcrank No.2.
    Fig 20: Installing Selecting Bellcrank Dust Cover
    G02615066Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  20. INSTALL SELECTING BELL CRANK NO.2
    1. Install the selecting bellcrank No.2, selecting bellcrank No.2 plate washer and spring washer with nut.

      Torque: 12 N.m (120 kgf.cm, 9 ft.lbf)

    Fig 21: Installing Selecting Bell Crank
    G02615067Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  21. INSTALL SELECTING BELLCRANK DUST COVER NO.1
    1. Install the selecting bellcrank dust cover No.1 to the selecting bellcrank assy.
    Fig 22: Installing Selecting Bellcrank Dust Cover
    G02615068Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  22. INSTALL CONTROL SHIFT LEVER BUSH
    1. Coat the control shift lever bush with MP grease, install it to the selecting bellcrank assy.
    Fig 23: Installing Control Shift Lever Bush
    G02615069Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
