Shift & Select Lever Shaft ASSY (C59): Components

WARNING: This page is about a different variant/trim than selected.

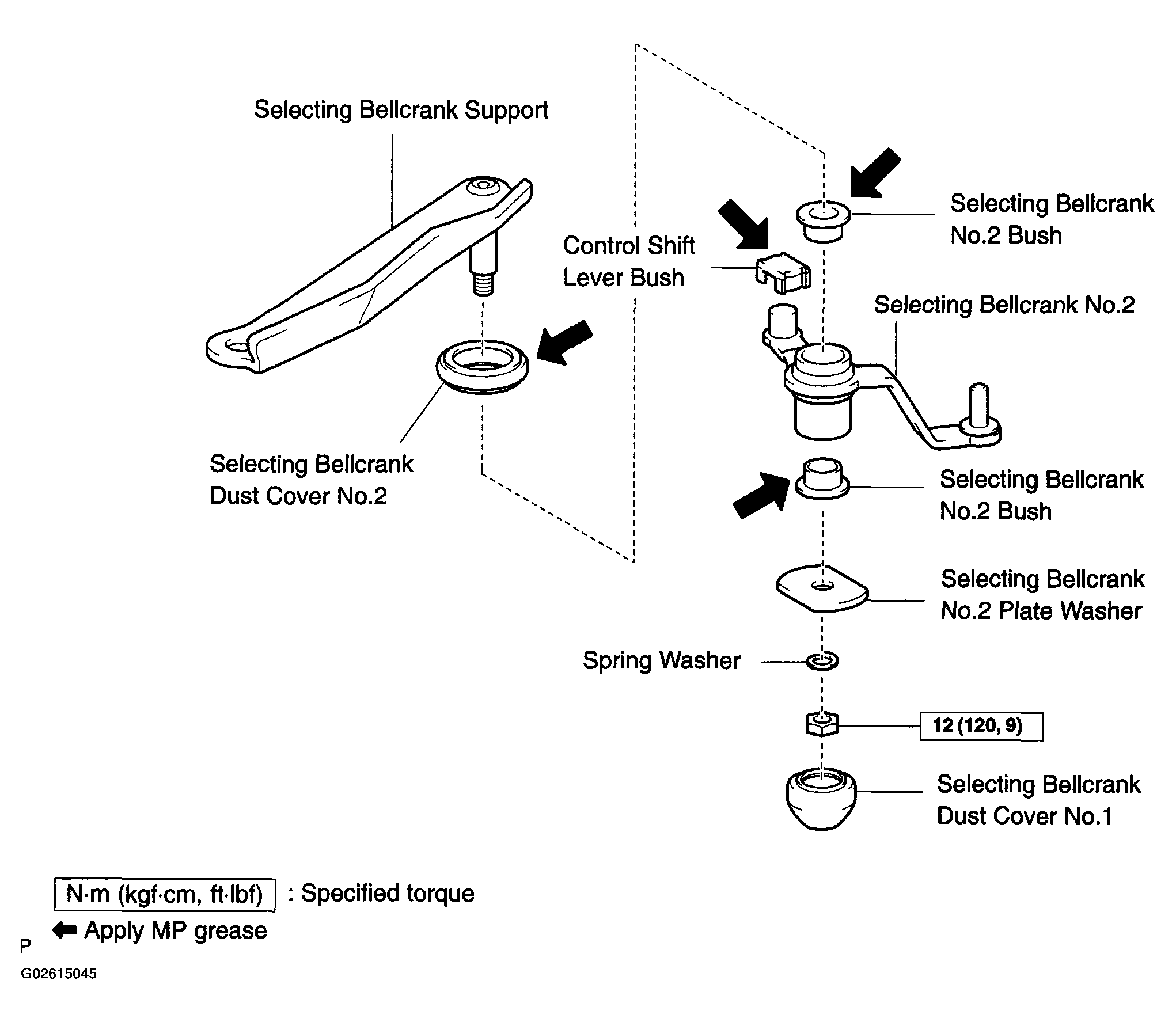

Fig 1: Identifying Components Shift & Select Lever Shaft Assy (1 Of 2)
G02615045Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

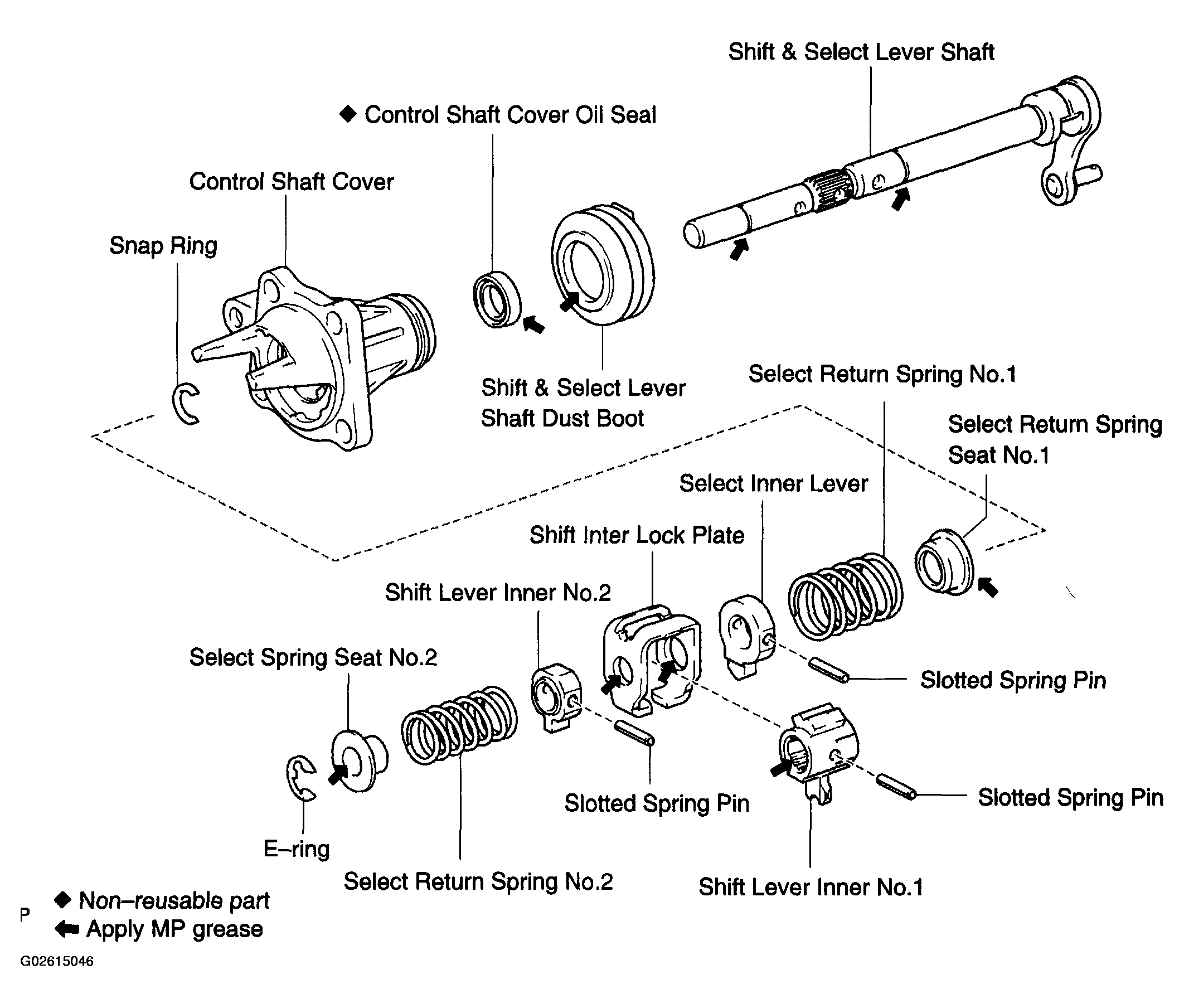

Fig 2: Identifying Components Shift & Select Lever Shaft Assy (2 Of 2)
G02615046Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
