Manual Transaxle ASSY (C60): Components

WARNING: This page is about a different variant/trim than selected.

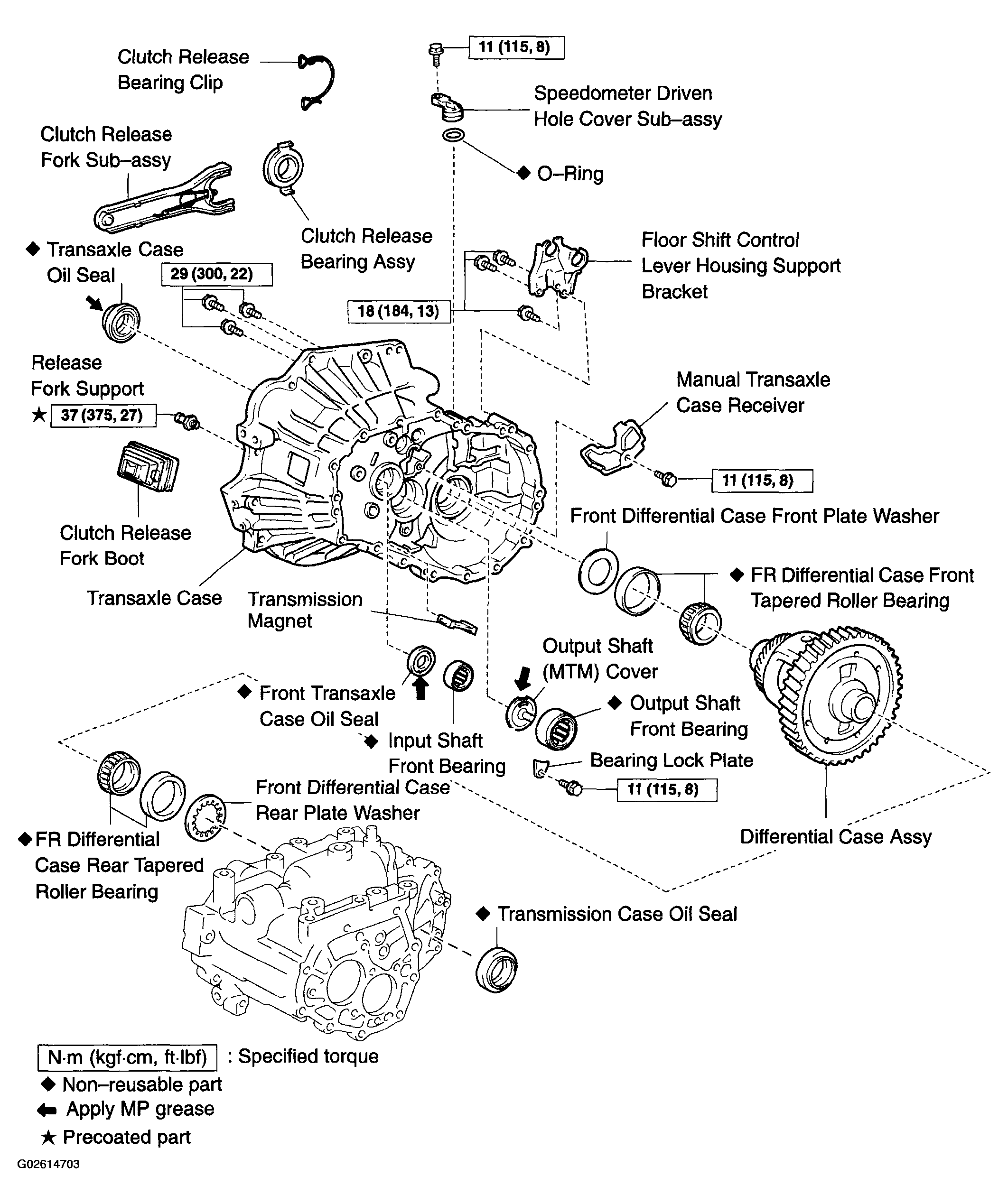

Fig 1: Identifying Components Manual Transaxle Assy C60 (1 Of 3)
G02614703Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

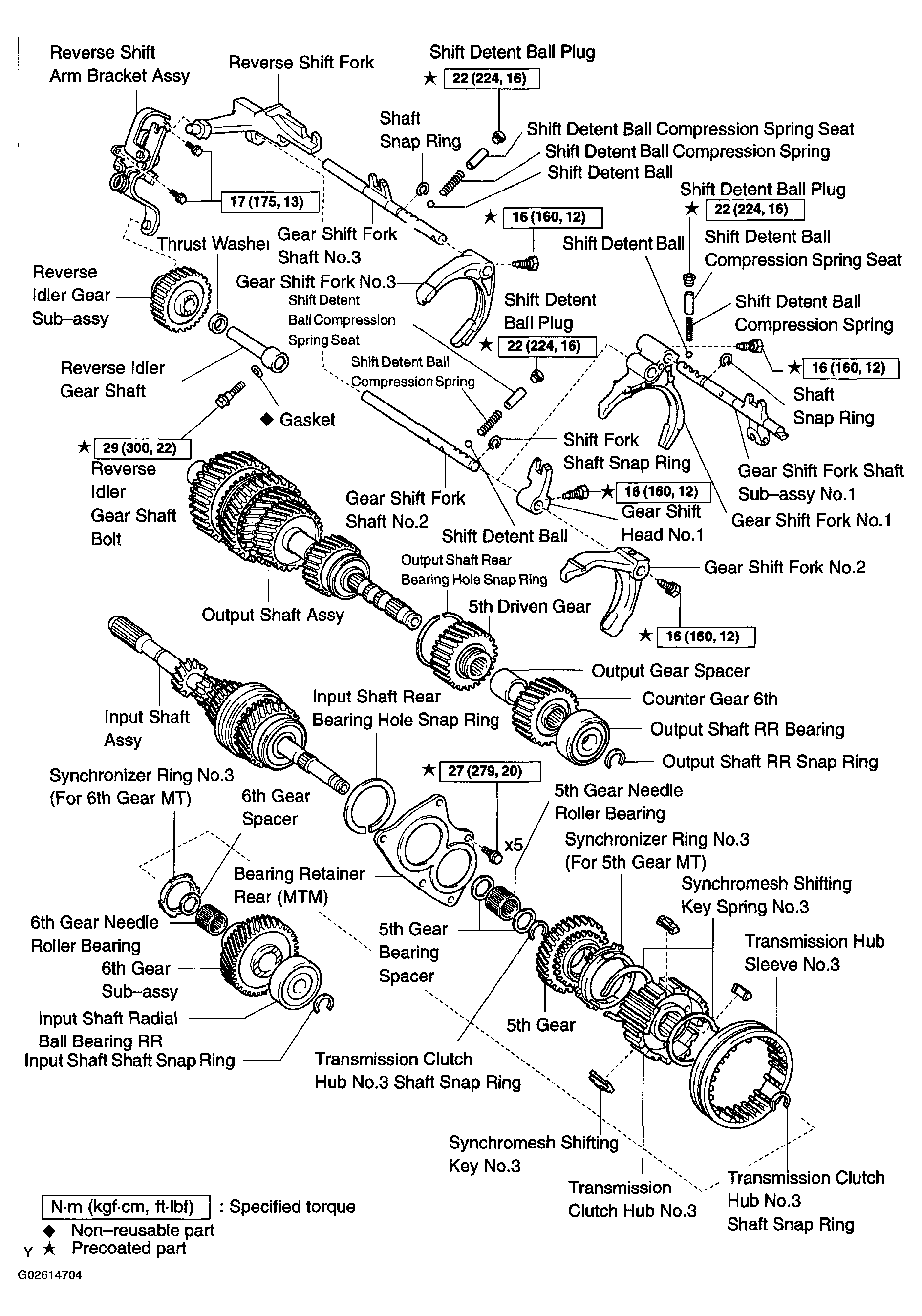

Fig 2: Identifying Components Manual Transaxle Assy C60 (2 Of 3)
G02614704Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

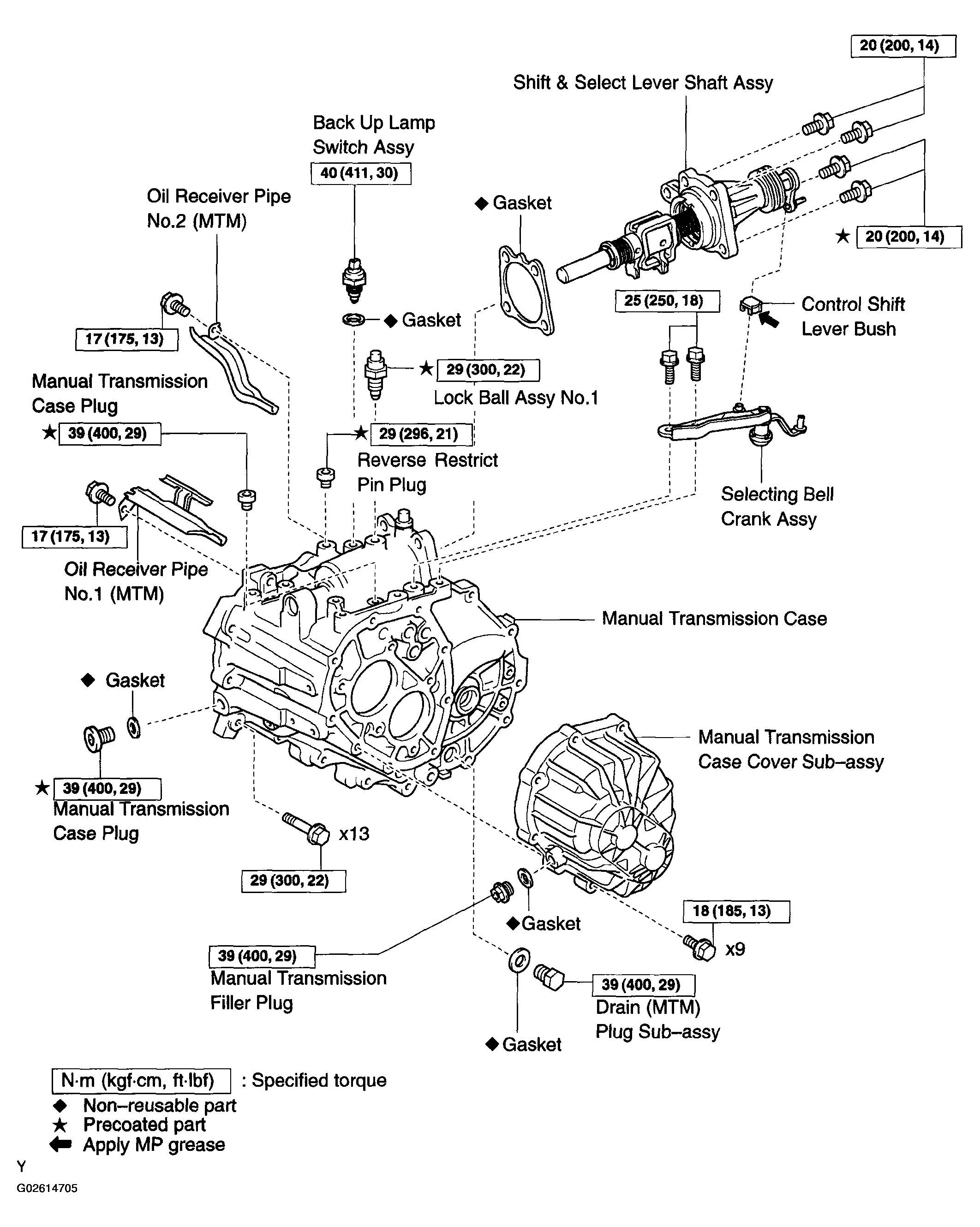

Fig 3: Identifying Components Manual Transaxle Assy C60 (3 Of 3)
G02614705Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
