Input Shaft ASSY (C60): Overhaul
- INSPECT 4th GEAR THRUST CLEARANCE
- Using a feeler gauge, measure the 4th gear thrust clearance.
Standard clearance: 0.10 to 0.55 mm (0.0039 to 0.0217 in.)
- Using a feeler gauge, measure the 4th gear thrust clearance.
- INSPECT 3rd GEAR THRUST CLEARANCE
- Using a dial indicator, measure the 3rd gear thrust clearance.
Standard clearance: 0.10 to 0.35 mm (0.0039 to 0.0138 in.)
- Using a dial indicator, measure the 3rd gear thrust clearance.
- INSPECT 4th GEAR RADIAL CLEARANCE
- Using a dial indicator, measure the 4th gear radial clearance.
STANDARD CLEARANCE REFERENCEBearing Clearance: mm (in.) KOYO made 0.015 to 0.058 (0.0006 to 0.0023) NSK made 0.015 to 0.056 (0.0006 to 0.0022) If the clearance is out of specification, replace the 4th gear needle roller bearing.
- INSPECT 3rd GEAR RADIAL CLEARANCE
- Using a dial indicator, measure the 3rd gear radial clearance.
STANDARD CLEARANCE REFERENCEBearing Clearance: mm (in.) KOYO made 0.015 to 0.058 (0.0006 to 0.0023) NSK made 0.015 to 0.056 (0.0006 to 0.0022) If the clearance is out of specification, replace the 3rd gear needle roller bearing.
- REMOVE 4th GEAR
- Using 2 screwdrivers and a hammer, remove the input shaft bearing shaft snap ring.
HINT:
Use a shop rag to keep the snap ring from flying.
- Using SST and a press, remove the input shaft bearing with 4th gear from the input shaft.
SST 09950-00020
NOTE:- Do not tighten SST excessively.
- Support the input shaft assy by hand so that it will not be dropped off.
- Using 2 screwdrivers and a hammer, remove the input shaft bearing shaft snap ring.
- REMOVE 4th GEAR NEEDLE ROLLER BEARING
- Remove the 4th gear needle roller bearing and 4th gear bearing spacer from the input shaft.
- REMOVE 4th GEAR SYNCHRONIZER RING
- Remove the 4th gear synchronizer ring from the transmission clutch hub No.2.
- REMOVE 3rd GEAR
- Using 2 screwdrivers and a hammer, remove the clutch hub No.2 shaft snap ring from the input shaft.
HINT:
Use a shop rag to keep the snap ring from flying.

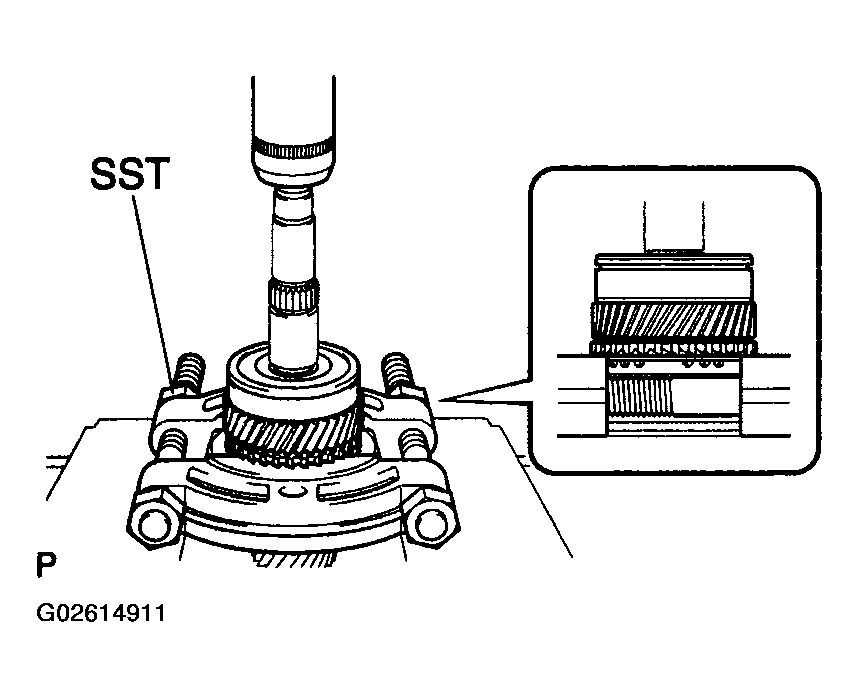

- Using SST and a press, remove the transmission clutch hub No.2 with 3rd gear from the input shaft.
SST 09950-00020
NOTE: Do not tighten SST excessively. - Using 2 screwdrivers and a hammer, remove the clutch hub No.2 shaft snap ring from the input shaft.
- REMOVE 3rd GEAR SYNCHRONIZER RING
- Remove the 3rd gear synchronizer ring from the 3rd gear.
- REMOVE 3rd GEAR NEEDLE ROLLER BEARING
- Remove the 3rd gear needle roller bearing from the input shaft.
- REMOVE TRANSMISSION HUB SLEEVE NO.2
- Remove the transmission hub sleeve No.2,3 synchronizer shifting keys and 3 synchronizer shifting key springs from the transmission clutch hub No.2.
HINT:
Use a shop rag to keep the synchromesh shifting key and spring from flying.
- INSPECT INPUT SHAFT
- Using a dial indicator and 2 V-blocks, measure the shaft runout.
Maximum runout: 0.015 mm (0.0006 in.)
If the runout is exceeds the maximum, replace the input shaft.

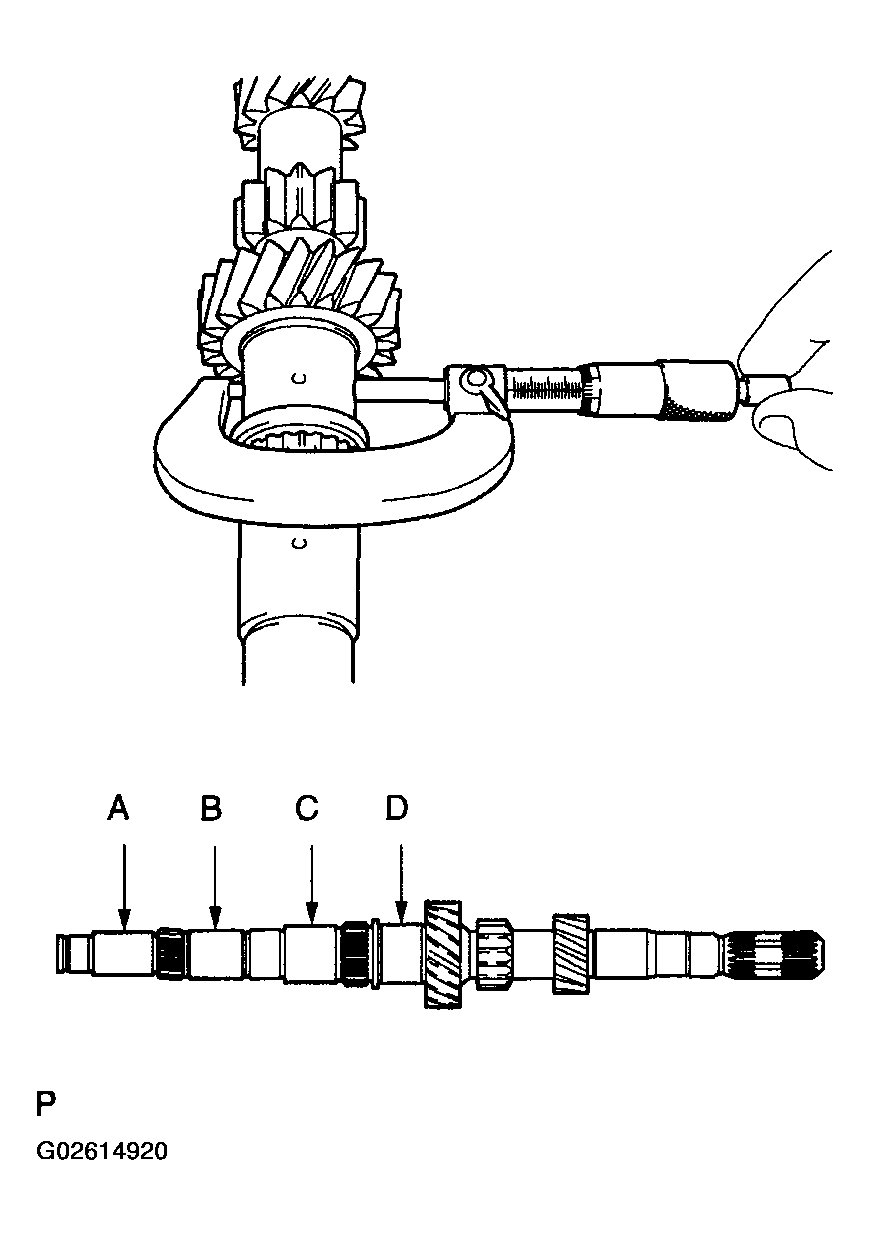

- Using a micrometer, measure the outer diameter of the input shaft journal surface.
OUTER DIAMETER REFERENCEPart New shaft: mm (in.) Minimum outer diameter: mm (in.) A 21.991 to 21.006 (0.8658 to 0.8270) 21.991 (0.8658) B 24.885 to 24.900 (0.9797 to 0.9803) 24.885 (0.9797) C 28.985 to 29.000 (1.1411 to 1.1417) 28.985 (1.1411) D 30985 to 31.000 (1.2199 to 1.2205) 30.985 (1.2199) If the outer diameter is less than the minimum, replace the input shaft.
- Using a dial indicator and 2 V-blocks, measure the shaft runout.
- INSPECT 4th GEAR
- Using a cylinder gauge, measure the inside diameter of the 4th gear.
INSIDE DIAMETER REFERENCENew gear: mm (in.) Maximum inside diameter: mm (in.) 34.015 to 34.031 (1.3390 to 1.33985) 34.031 (1.3398) If the inside diameter is exceeds the maximum, replace the 4th gear.
- INSPECT 3rd GEAR
- Using a cylinder gauge, measure the inside diameter of the 3rd gear.
INSIDE DIAMETER REFERENCENew gear: mm (in.) Maximum inside diameter: mm (in.) 36.015 to 36.031 (1.4179 to 1.4185) 36.031 (1.4185) If the inside diameter is exceeds the maximum, replace the 3rd gear.
- INSPECT 4th GEAR SYNCHRONIZER RING
- Coat the 4th gear cone with gear oil. Turn the synchronizer ring in one direction while pushing it against the 4th gear cone. Check that the ring locks.
If the synchronizer ring does not lock, replace the ring or 4th gear.
- Using a feeler gauge, measure the clearance between the 4th gear synchronizer ring back and 4th gear spline end.
Standard clearance: 0.75 to 1.65 mm (0.0295 to 0.0650 in.)
If the clearance is out of specification, replace the 4th gear synchronizer ring.
- Coat the 4th gear cone with gear oil. Turn the synchronizer ring in one direction while pushing it against the 4th gear cone. Check that the ring locks.
- INSPECT 3rd GEAR SYNCHRONIZER RING
- Coat the 3rd gear cone with gear oil. Turn the synchronizer ring in one direction while pushing it against the 3rd gear cone. Check that the ring locks.
If the synchronizer ring does not lock, replace the ring or 3rd gear.
- Using a feeler gauge, measure the clearance between the 3rd gear synchronizer ring back and 3rd gear spline end.
Standard clearance: 0.65 to 1.75 mm (0.0256 to 0.0689 in.)
If the clearance is out of specification, replace the 3rd gear synchronizer ring.
- Coat the 3rd gear cone with gear oil. Turn the synchronizer ring in one direction while pushing it against the 3rd gear cone. Check that the ring locks.
- INSPECT TRANSMISSION HUB SLEEVE NO.2
- Check the sliding condition between the transmission hub No.2 and transmission hub sleeve No.2.
- Check that the spline gear's edges of the transmission hub sleeve No.2 is not worn down.

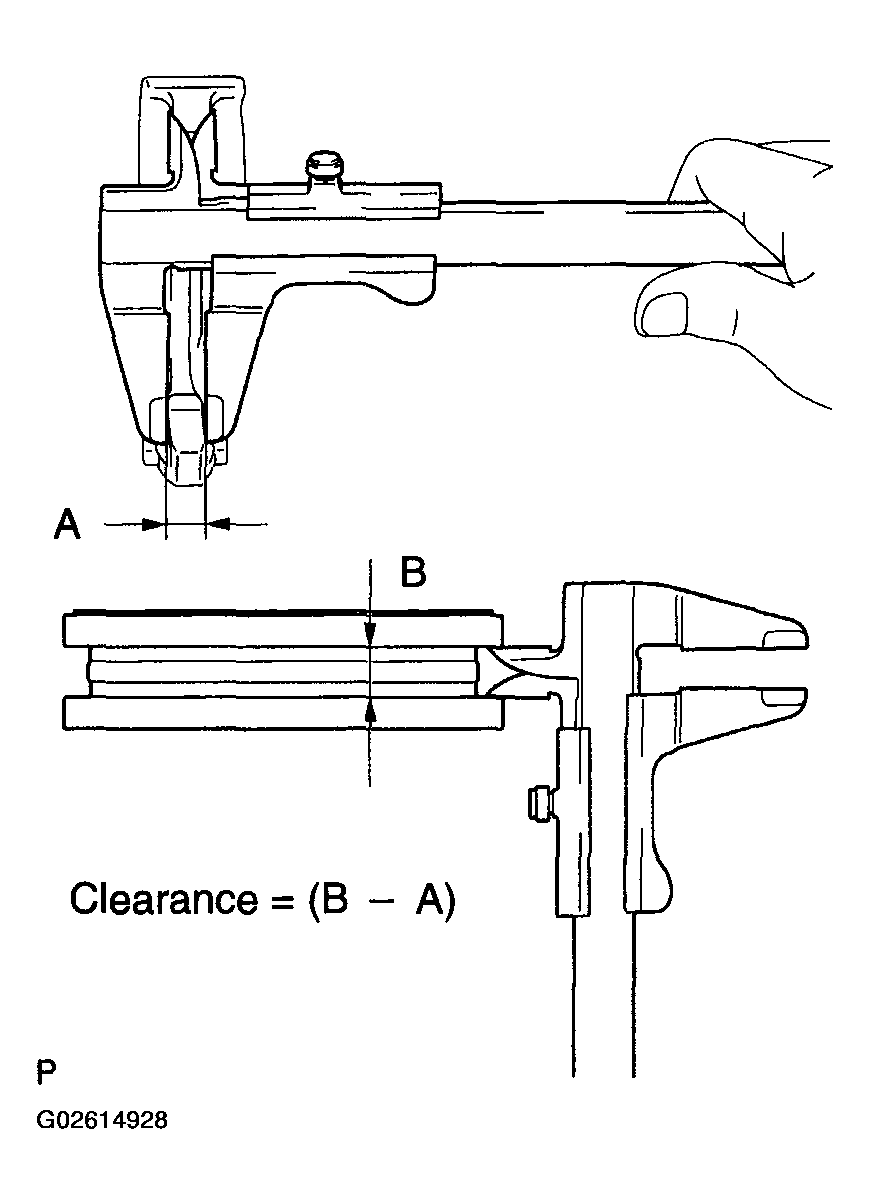

- Using vernier calipers, measure the width of the transmission hub sleeve No.3 groove (B) and the thickness of the claw part on the gear shift fork No.1 (A), and calculate the clearance.
Standard clearance (B - A): 0.15 to 0.35 mm (0.0059 to 0.0138 in.)
If the clearance is out of specification, replace the transmission hub sleeve No.2 and gear shift fork No.2.
- INSTALL TRANSMISSION HUB SLEEVE NO.2
- Coat the transmission hub sleeve No.2 with gear oil, install it to the transmission clutch hub No.2.NOTE: Do not set the transmission hub sleeve No.2 and the transmission clutch hub No.2 in incorrect orientation.

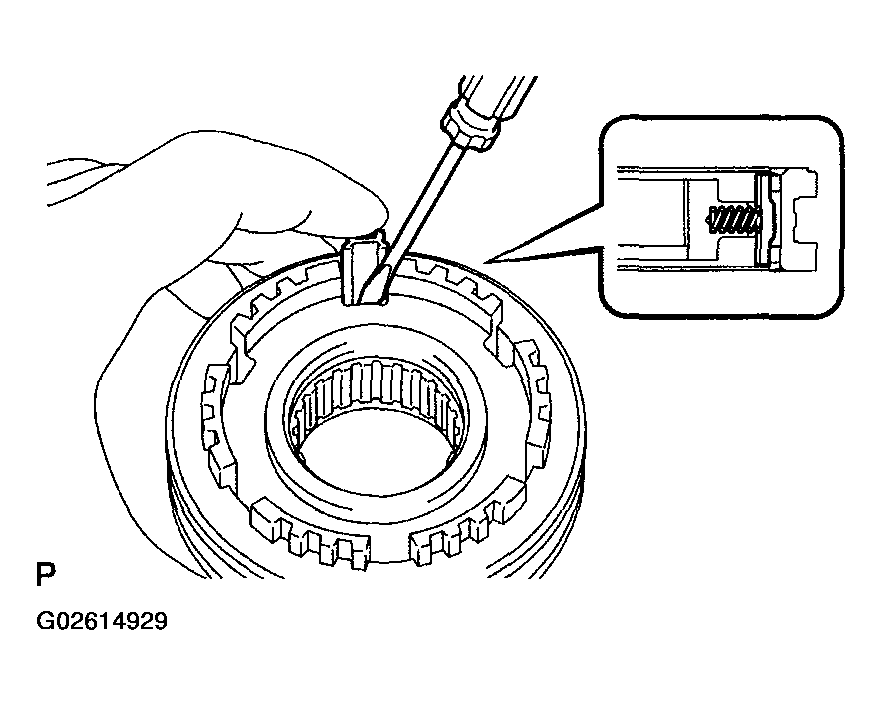

- Using a screwdriver, install the 3 synchronizer shifting key springs with 3 synchronizer shifting keys.
- Coat the transmission hub sleeve No.2 with gear oil, install it to the transmission clutch hub No.2.
- INSTALL 3rd GEAR NEEDLE ROLLER BEARING
- Coat the 3rd gear needle roller bearing with gear oil, install it to the input shaft.
- INSTALL 3rd GEAR
- Coat the 3rd gear with gear oil, install it to the input shaft.

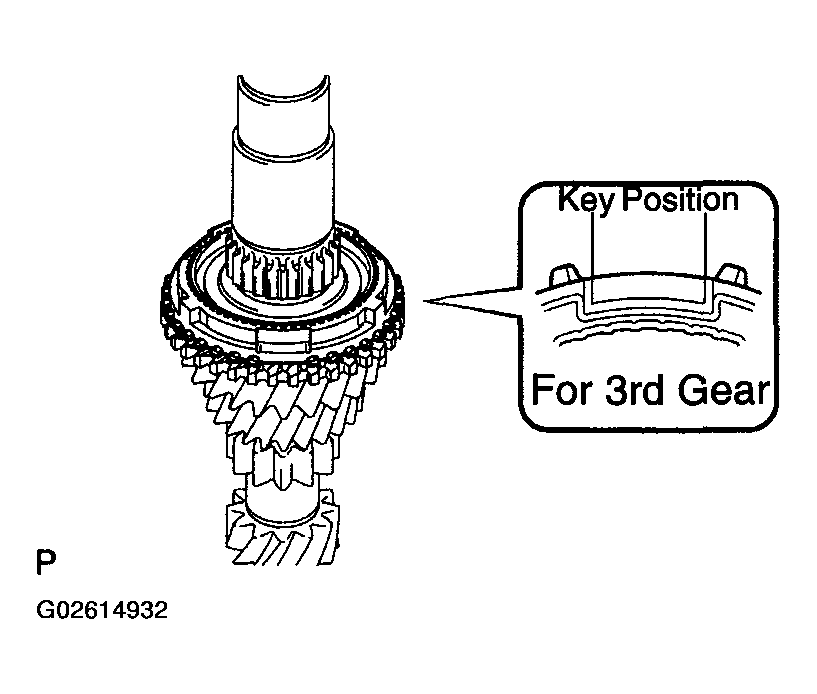

- INSTALL 3rd GEAR SYNCHRONIZER RING
- Coat the 3rd gear synchronizer ring with gear oil, install it to the 3rd gear.
- INSTALL TRANSMISSION CLUTCH HUB NO.2
- Using SST and a press, install the transmission clutch hub No.2 to the input shaft.
SST 09309-36100 (09309-03610), 09950-60010 (09951-00450)
- Select a snap ring that will allow minimum axial play.
Standard clearance: 0.1 mm (0.004 in.) or less
SNAP RING THICKNESS SPECIFICATIONPart No. Thickness: mm (in.) Mark 90520-27046 2.30 (0.0906) 0 90520-27047 2.36 (0.0929) 1 90520-27048 2.42 (0.0953) 2 90520-27049 2.48 (0.0976) 3 90520-27050 2.54 (0.1000) 4 90520-27051 2.60 (0.1024) 5 - Using a brass bar and a hammer, install the snap ring to the input shaft.
- Using SST and a press, install the transmission clutch hub No.2 to the input shaft.
- INSTALL 4th GEAR SYNCHRONIZER RING
- Coat the 4th gear synchronizer ring with gear oil, install it to the transmission clutch hub No.2.
- INSTALL 4th GEAR NEEDLE ROLLER BEARING
- Coat the 4th gear bearing spacer and 4th gear needle roller bearing with gear oil, install them to the input shaft.
- INSTALL 4th GEAR
- Coat the 4th gear with gear oil, install it to the input shaft.
- INSTALL INPUT SHAFT BEARING
- Using SST and a press, install the input shaft bearing to the input shaft.
SST 09608-04031
- Select a snap ring that will allow minimum axial play.
Standard clearance: 0.1 mm (0.004 in.) or less
SNAP RING THICKNESS SPECIFICATIONPart No. Thickness: mm (in.) Mark 90520-22006 2.29 (0.0902) A 90520-22007 2.35 (0.0925) B 90520-22008 2.41 (0.0949) C 90520-22009 2.47 (0.0972) D 90520-22010 2.53 (0.0996) E 90520-22011 2.59 (0.1020) F - Using a brass bar and a hammer, install the snap ring to the input shaft.
- Using SST and a press, install the input shaft bearing to the input shaft.
- INSPECT 3rd GEAR RADIAL CLEARANCE
- Using a dial indicator, measure the 3rd gear radial clearance.
STANDARD CLEARANCE REFERENCEBearing Clearance: mm (in.) KOYO made 0.015 to 0.058 (0.0006 to 0.0023) NSK made 0.015 to 0.056 (0.0006 to 0.0022) If the clearance is out of specification, replace the 3rd gear needle roller bearing.
- INSPECT 4th GEAR RADIAL CLEARANCE
- Using a dial indicator, measure the 4th gear radial clearance.
STANDARD CLEARANCE REFERENCEBearing Clearance: mm (in.) KOYO made 0.015 to 0.058 (0.0006 to 0.0023) NSK made 0.015 to 0.056 (0.0006 to 0.0022) If the clearance is out of specification, replace the 4th gear needle roller bearing.
- INSPECT 3rd GEAR THRUST CLEARANCE
- Using a dial indicator, measure the 3rd gear thrust clearance.
Standard clearance: 0.10 to 0.35 mm (0.0039 to 0.0138 in.)
- Using a dial indicator, measure the 3rd gear thrust clearance.
- INSPECT 4th GEAR THRUST CLEARANCE
- Using a feeler gauge, measure the 4th gear thrust clearance.
Standard clearance: 0.10 to 0.55 mm (0.0039 to 0.0217 in.)
- Using a feeler gauge, measure the 4th gear thrust clearance.
