Section 2 (Manual Transmission)
>>
Input Shaft ASSY (C60)
>>
Components
Input Shaft ASSY (C60): Components
WARNING:
This page is about a different variant/trim than selected.

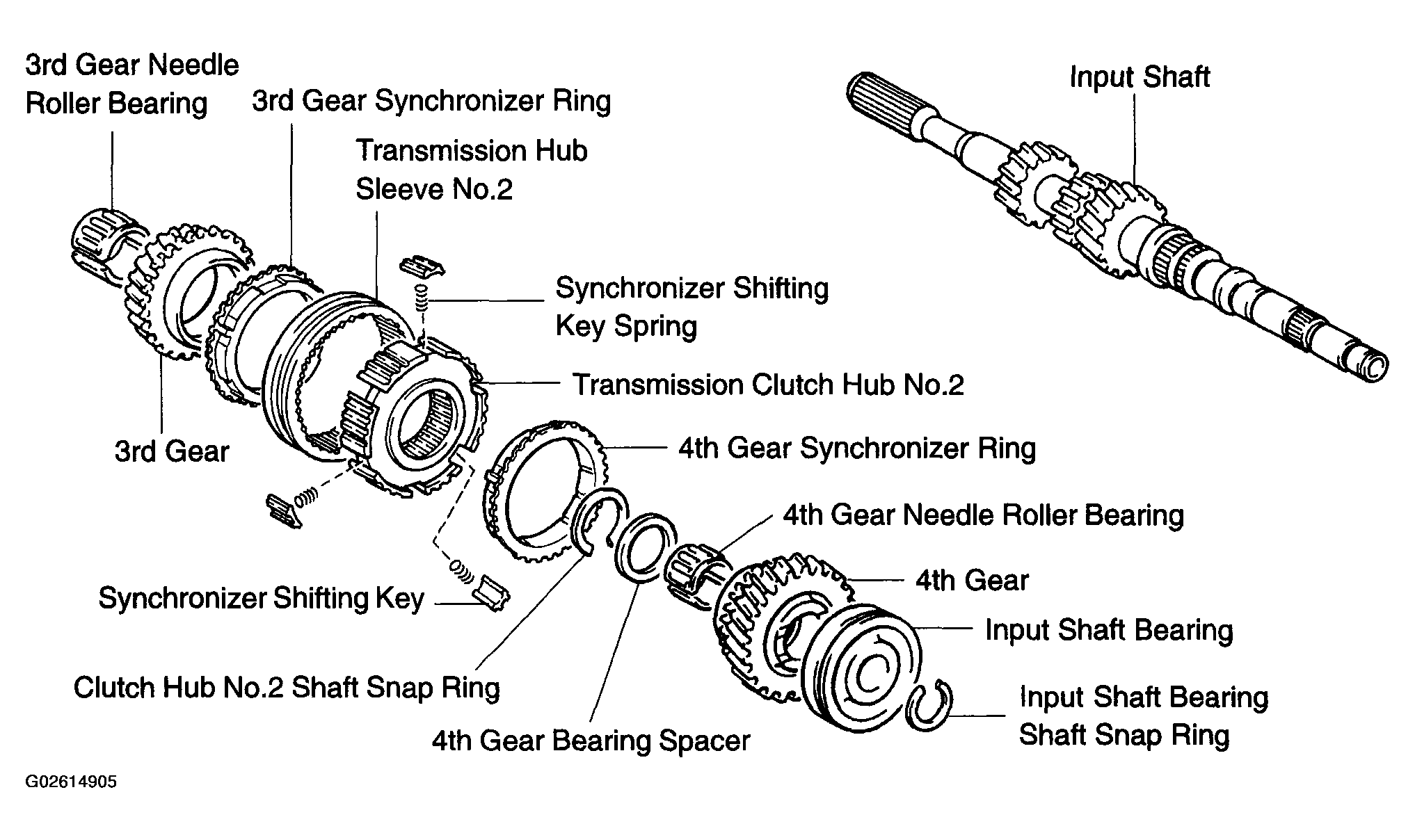

Fig 1: Identifying Components Input Shaft Assy
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
