Floor Shift Lever ASSY: Replacement

WARNING: This page is about a different variant/trim than selected.
  1. REMOVE SHIFT LEVER KNOB SUB-ASSY
  2. REMOVE CONSOLE PANEL UPPER (SEE  REPLACEMENT  )
  3. REMOVE PARKING BRAKE HOLE COVER SUB-ASSY (see  REPLACEMENT  )
  4. REMOVE CONSOLE BOX SUB-ASSY REAR (see  REPLACEMENT  )
  5. SEPARATE FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Remove the clip and separate the end of the shift cable from the shift lever assy.
      Fig 1: Removing Clip
      G02614496Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, release the cable outer spring.
    3. Turn the lock, separate the shift cable from the shift lever retainer.

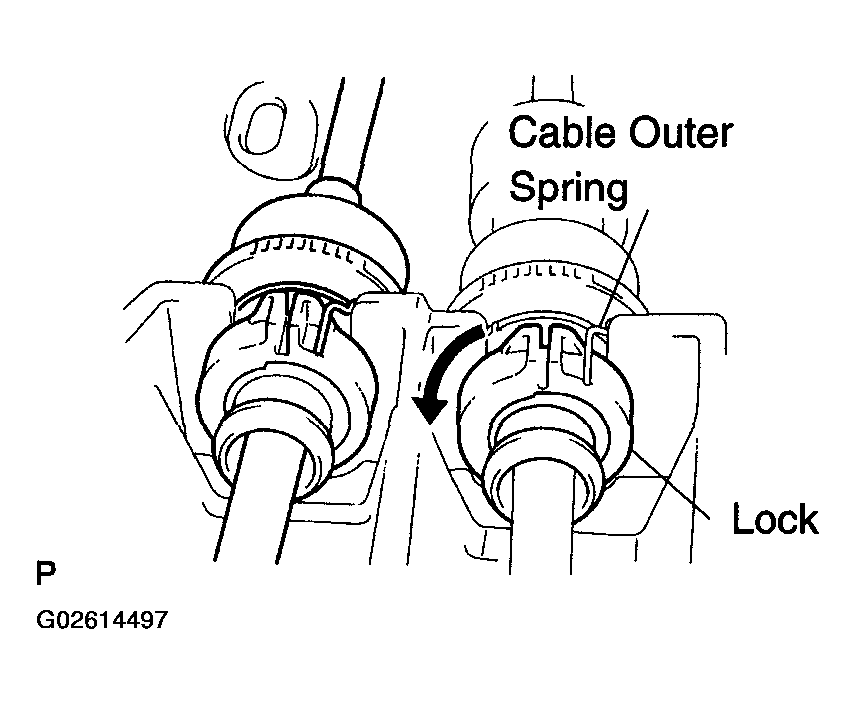

    Fig 2: Releasing Cable Outer Spring
    G02614497Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. SEPARATE FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
    1. Remove the clip and separate the end of the select cable from the shift lever assy.
      Fig 3: Removing Clip
      G02614498Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using a screwdriver, release the cable outer spring.
    3. Turn the lock, separate the select cable from the shift lever retainer.
    Fig 4: Releasing Cable Outer Spring
    G02614499Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE FLOOR SHIFT LEVER ASSY
    1. Remove the 4 bolts and shift lever assy.

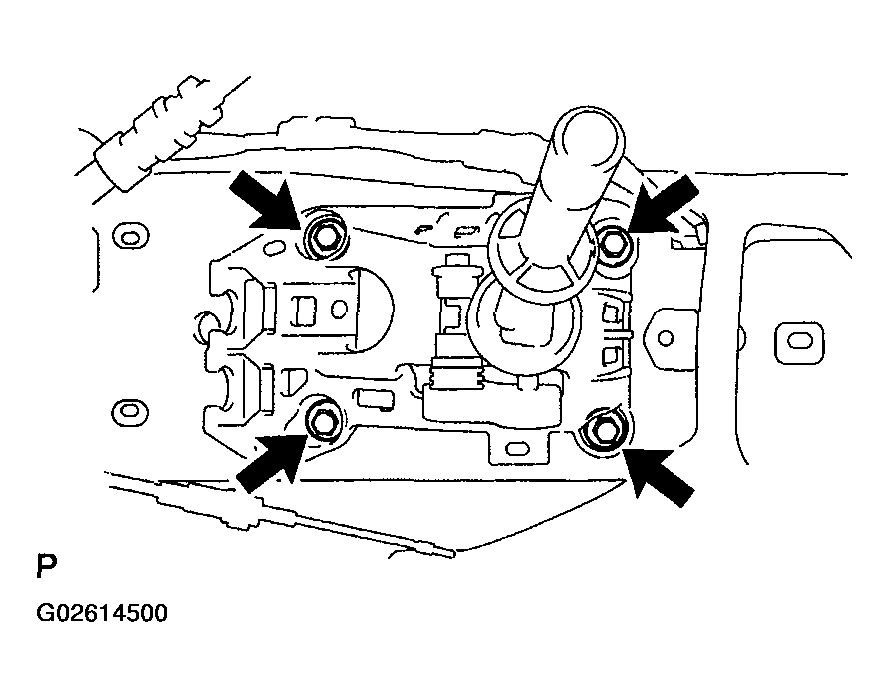

    Fig 5: Removing Bolts And Shift Lever Assy
    G02614500Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  8. INSTALL FLOOR SHIFT LEVER ASSY
    1. Install the shift lever assy with the 4 bolts.

      Torque: 12 N.m (122 kgf.cm, 9ft.lbf)

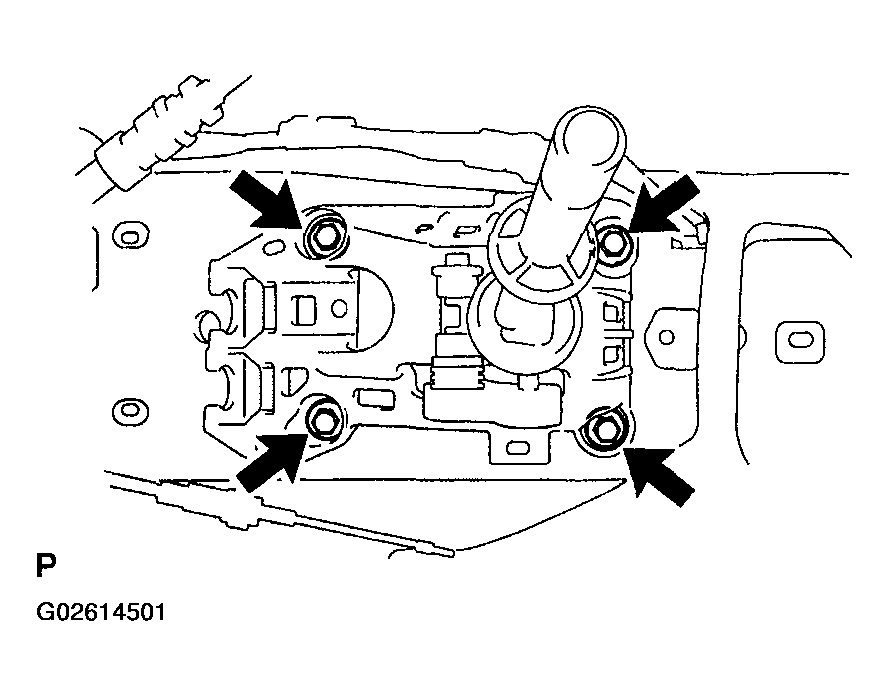

    Fig 6: Installing Shift Lever Assy Bolts
    G02614501Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  9. CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SELECT
    1. Connect the select cable to the retainer of shift lever assy, turn the lock.
      NOTE: The projecting part of the lock should face upward when the select cable is installed.
    2. Install the cable outer spring to the lock.
      NOTE: Make sure that after installation the cable outer spring is moved to the place shown in the illustration.

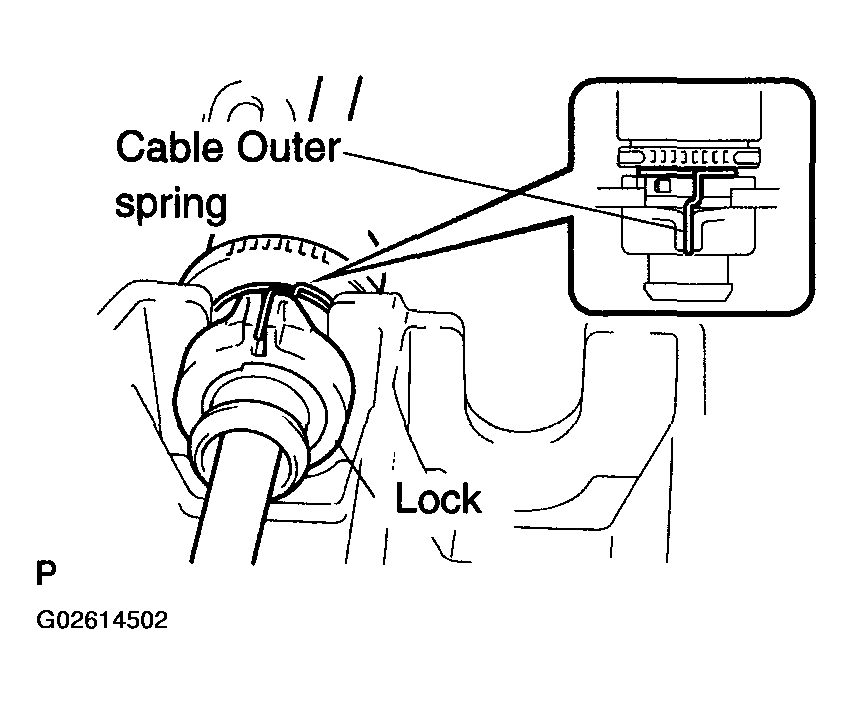

      Fig 7: Installing Cable Outer Spring To Lock
      G02614502Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Connect the end of the select cable and install the clip to the shift lever assy.
    Fig 8: Installing Clip To Shift Lever Assy
    G02614503Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  10. CONNECT FLOOR SHIFT CABLE TRANSMISSION CONTROL SHIFT
    1. Connect the shift cable to the retainer of shift lever assy, turn the lock.
      NOTE: The projecting part of the lock should face upward when the shift cable is installed.
    2. Install the cable outer spring to the lock.

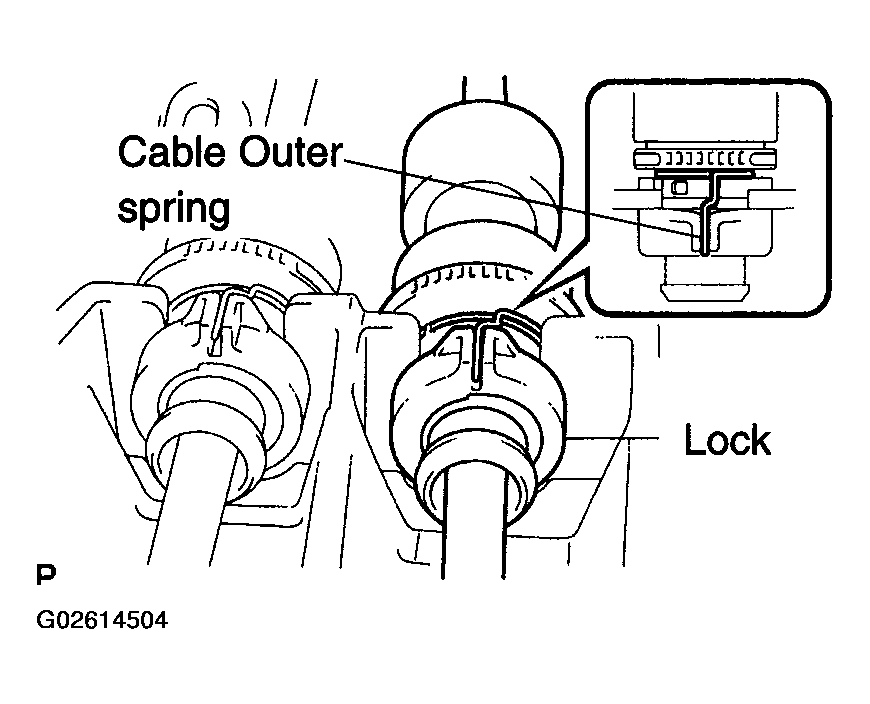

      Fig 9: Installing Cable Outer Spring To Lock
      G02614504Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      NOTE: Make sure that after installation the cable outer spring is moved to the place shown in the illustration.
    3. Connect the end of the shift cable and install the clip to the shift lever assy.
    Fig 10: Installing Clip To Shift Lever Assy
    G02614505Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  11. INSTALL CONSOLE BOX SUB-ASSY REAR
  12. INSTALL PARKING BRAKE HOLE COVER SUB-ASSY
  13. INSTALL CONSOLE PANEL UPPER
