Floor Shift Lever ASSY: Components

WARNING: This page is about a different variant/trim than selected.

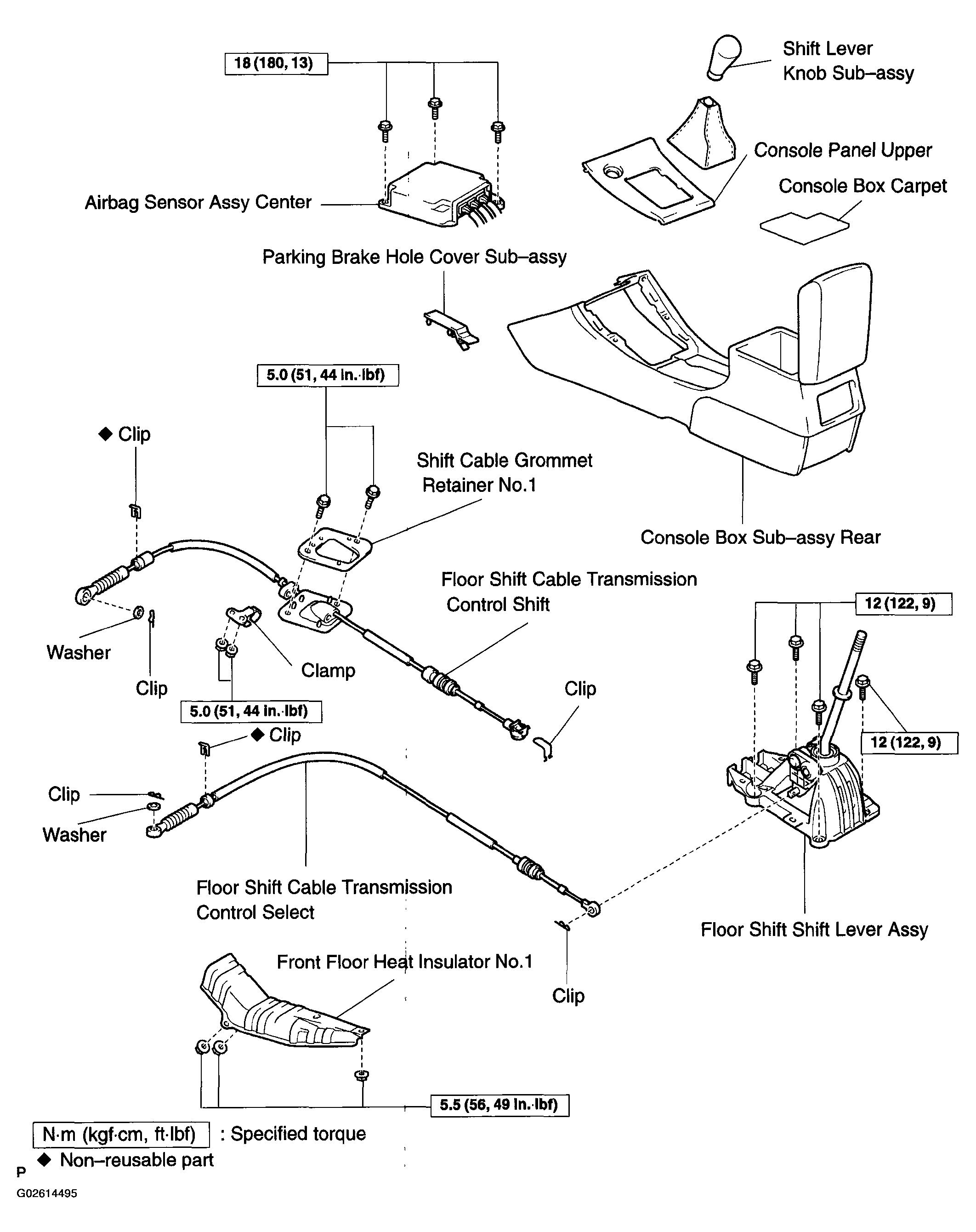

Fig 1: Identifying Components Floor Shift Lever Assy
G02614495Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
