Differential Case ASSY (MTM): Components

WARNING: This page is about a different variant/trim than selected.

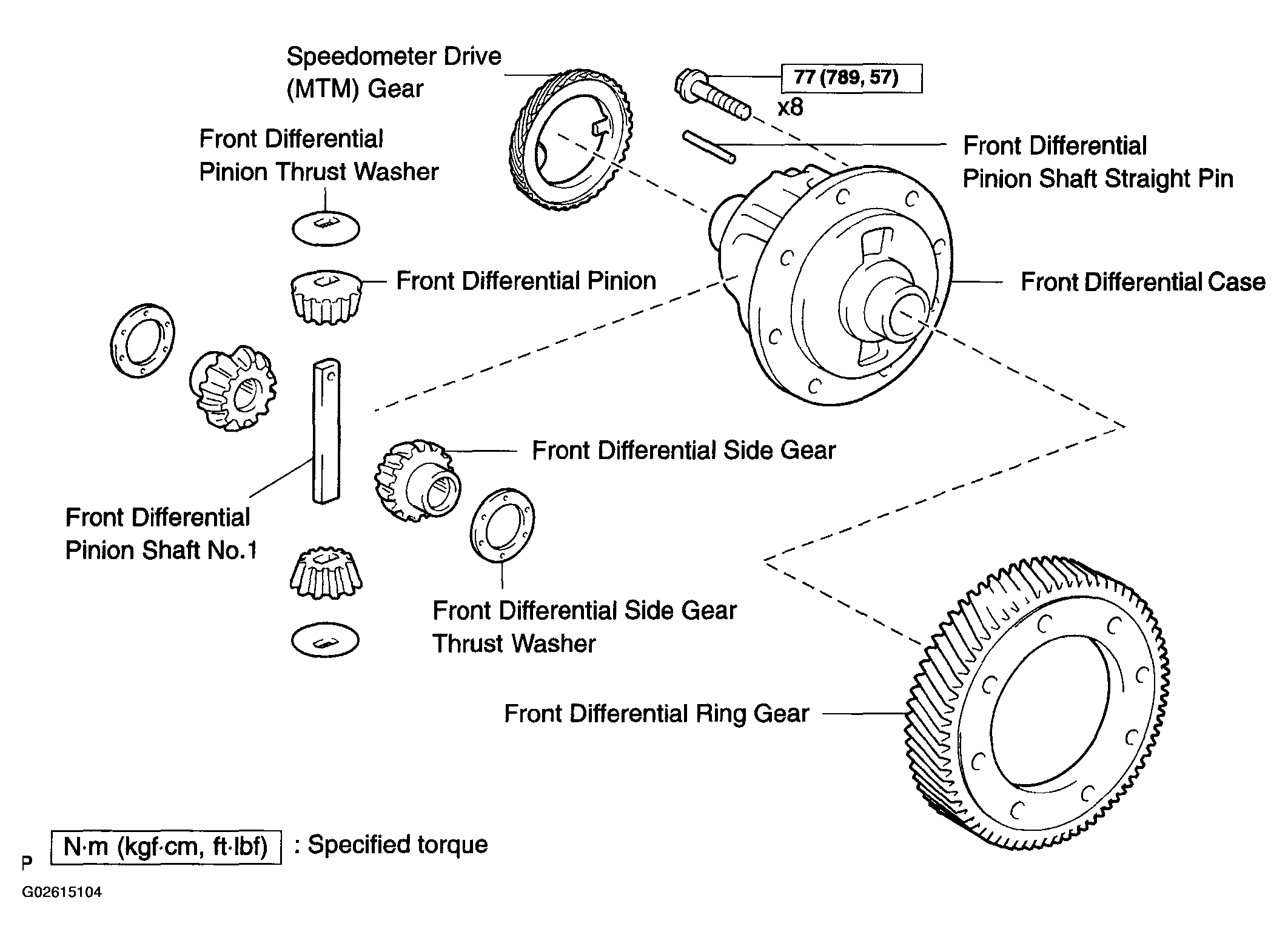

Fig 1: Identifying Components Differential Case Assy
G02615104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
