Diagnostic Trouble Codes Relating To EVAP System

WARNING: This page is about a different variant/trim than selected.

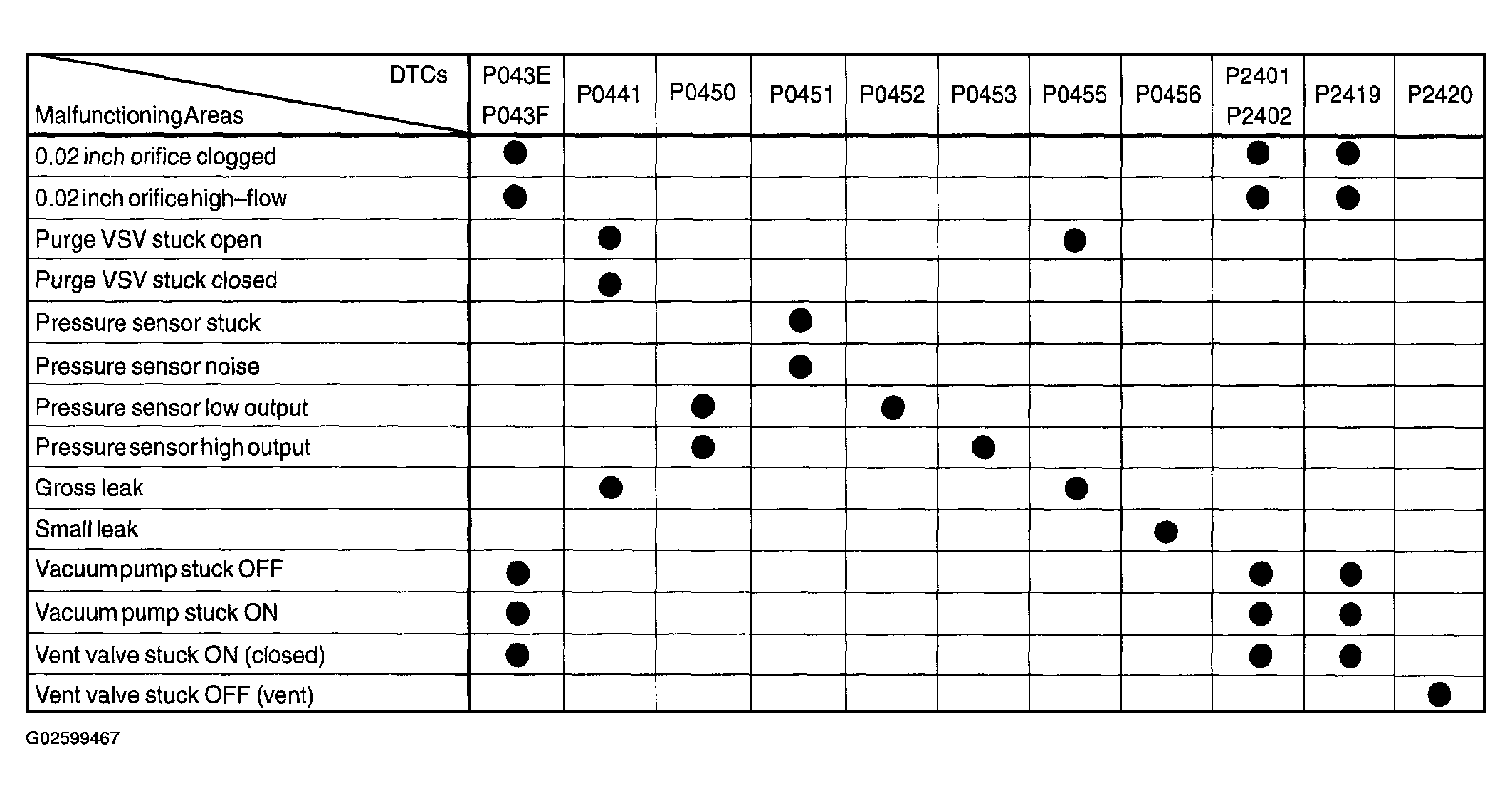

Fig 1: DTC Inspection Procedure Chart
G02599467Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

If any EVAP system DTCs are set, the malfunctioning area can be determined using the table below.

Fig 2: Malfunction Area Chart
G02599468Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
