Section 1 (Engine Control System (SFI) (2ZZ-GE) - Diagnostics)
>>
ECM Power Source Circuit
>>
Wiring Diagram
ECM Power Source Circuit: Wiring Diagram
WARNING:
This page is about a different variant/trim than selected.

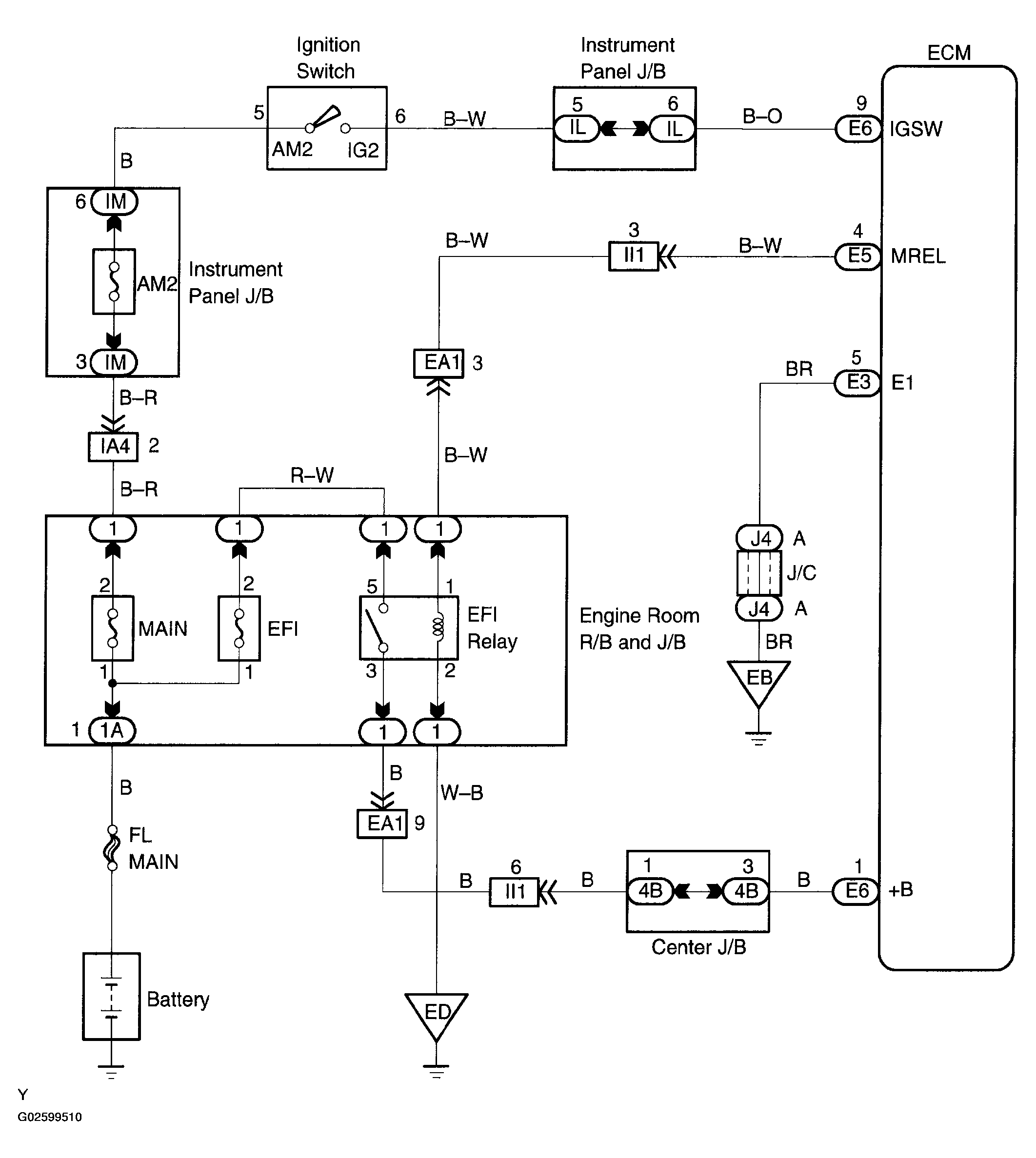

Fig 1: ECM Power Source Circuit
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
