- INSPECT CAMSHAFT TIMING OIL CONTROL VALVE ASSY (FOR VVTL)
- Start the engine.
- Check the engine speed twice in each of conditions (1) and (2), as described below:
- Disconnect the C2 camshaft timing OCV (Oil Control Valve) connector.
- Apply the positive battery voltage between the terminals of the camshaft timing OCV.
Result:
CAMSHAFT TIMING OIL CONTROL VALVE ASSY (FOR VVTL) INSPECTION RESULTCondition (1) Condition (2) Proceed To Normal engine speed Engine idles roughly or stalls A Any results other than above Any results other than above B - Reconnect the camshaft timing OCV connector.
- B: REPLACE CAMSHAFT TIMING OIL CONTROL VALVE ASSY
- A: GO TO NEXT STEP
- INSPECT ECM (VVL+ - VVL- VOLTAGE)
- Start the engine and warm it up.

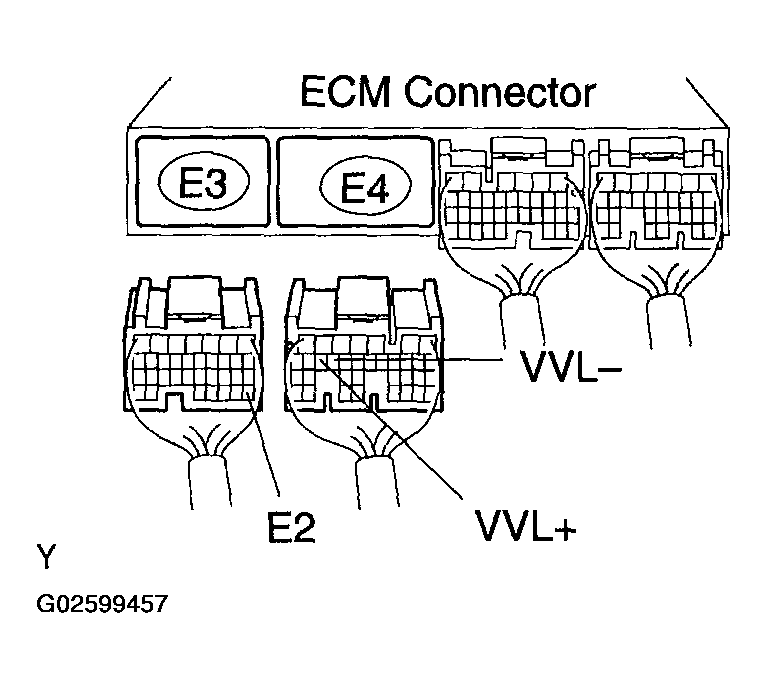

- Measure the voltage between terminals VVL+ and VVL- of the ECM connector.
Standard: Between 9 V and 14 V
(Engine speed at 6,500 rpm or more)
- NG: REPLACE ECM (See ECM (1ZZ-FE/2ZZ-GE) REPLACEMENT )
- OK: GO TO NEXT STEP
- CHECK HARNESS AND CONNECTOR (OCV FOR VVTL - ECM)
- Disconnect the C15 control valve connector.
- Disconnect the E3 and E4 ECM connectors.
- Check the resistance.
Standard (Check for open):
OCV FOR VVTL - ECM RESISTANCE (CHECK FOR OPEN)Tester Connections Specified Conditions OCV (C15-1) - VVL+ (E4-17) Below 1 Ω OCV (C15-2) - VVL- (E4-16) Below 1 Ω Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Standard (Check for short):
OCV FOR VVTL - ECM RESISTANCE (CHECK FOR SHORT)Tester Connections Specified Conditions OCV (C15-1) or VVL+ (E4-17) - Body ground 10 kΩ or higher OCV (C15-2) or VVL- (E4-16) - Body ground 10 kΩ or higher - Reconnect the OCV connector.
- Reconnect the ECM connector.
- NG: REPAIR OR REPLACE HARNESS AND CONNECTOR
- OK: GO TO NEXT STEP
REPLACE ECM (See ECM (1ZZ-FE/2ZZ-GE) REPLACEMENT )
