DTC P2430, P2431, P2432, P2433: Secondary Air Injection System Air Flow/Pressure Sensor Circuit/Range/Performance/Low/High Bank 1: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

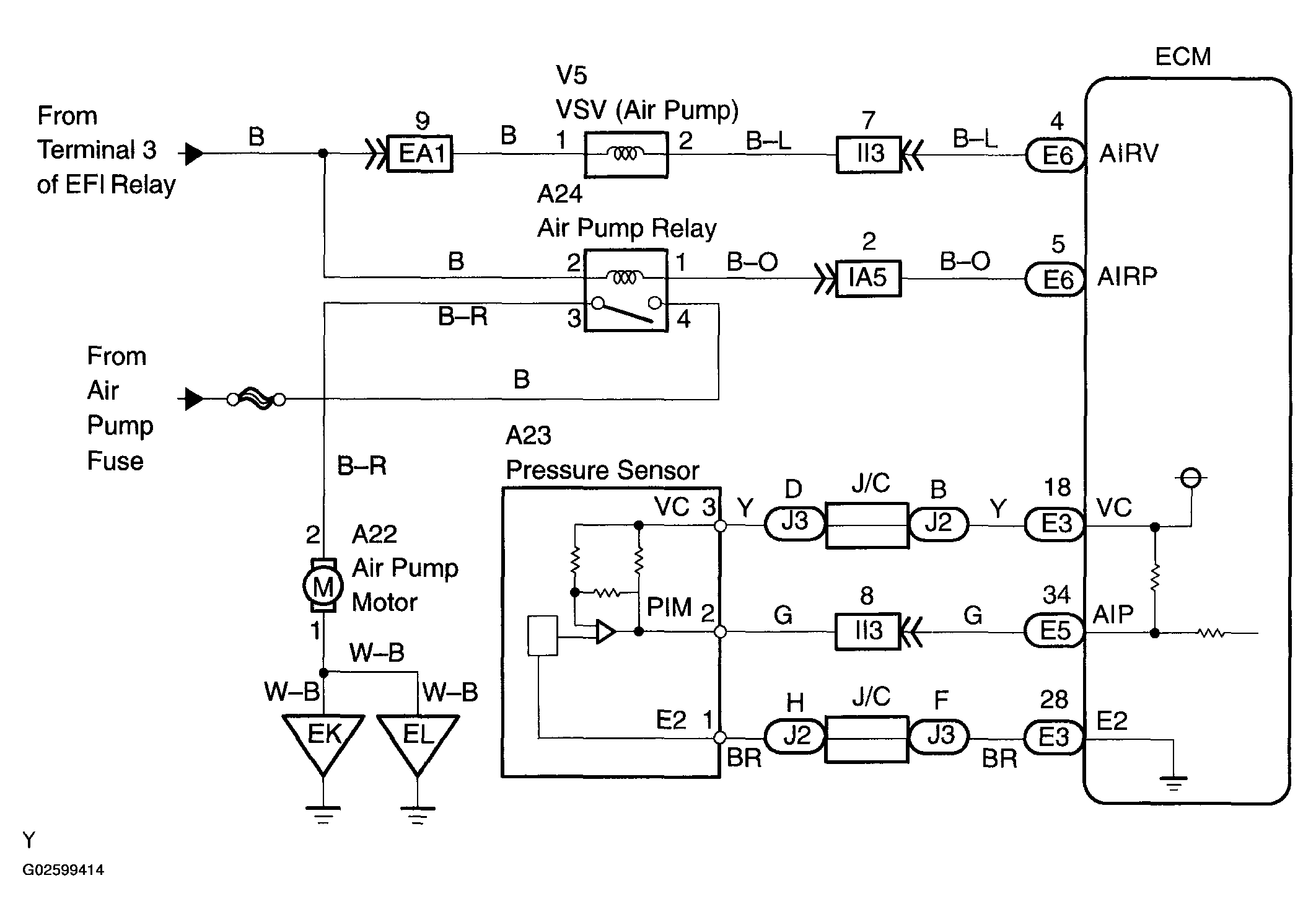

Fig 1: Wiring Diagram - Secondary Air Injection System Air Flow/Pressure Sensor
G02599414Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
