DTC P0617: Starter Relay Circuit High: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

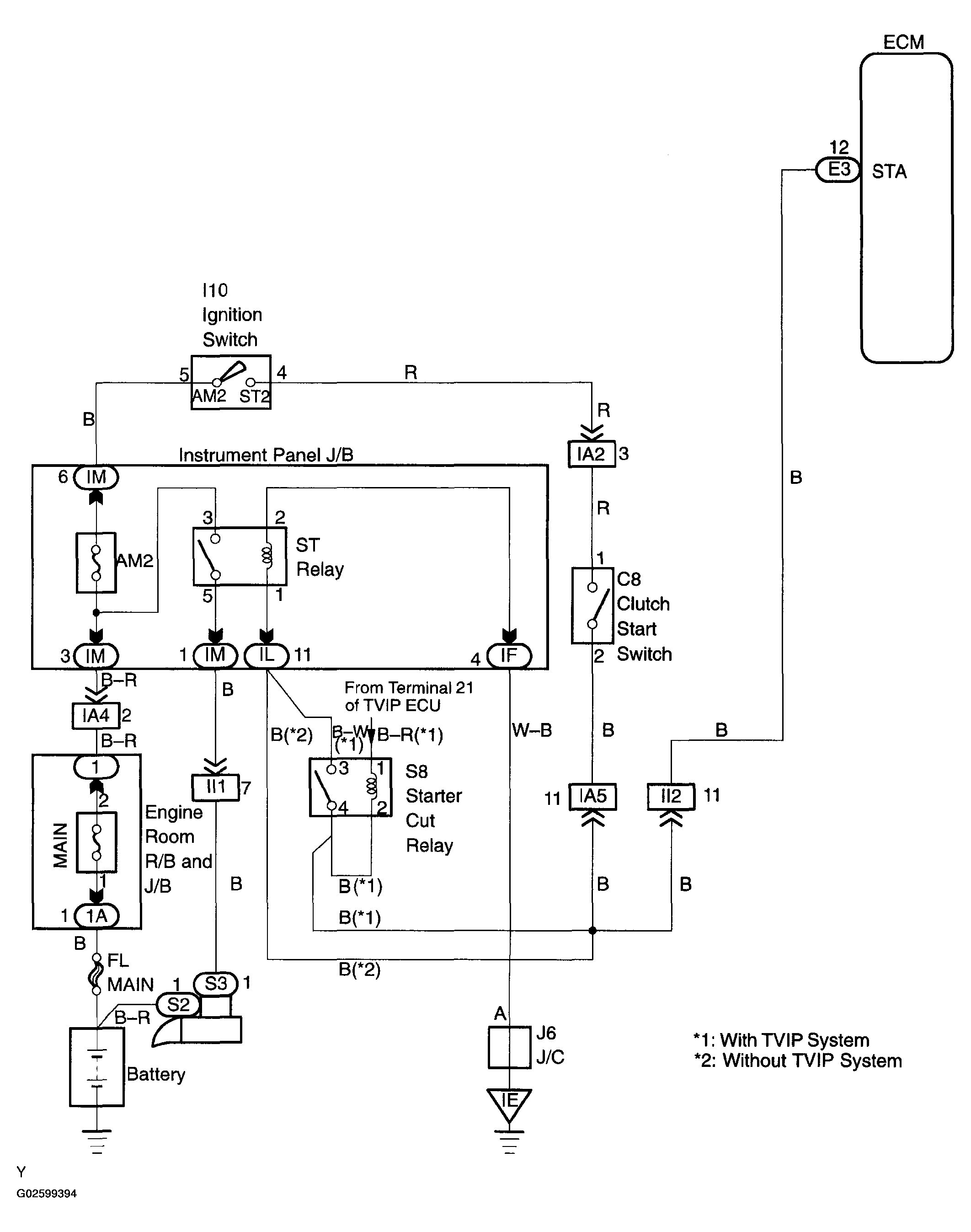

Fig 1: WIRING DIAGRAM - Starter Relay
G02599394Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
