Monitor Description

WARNING: This page is about a different variant/trim than selected.

While the engine being cranked, the positive battery voltage is applied to terminal STA of the ECM. If the ECM detects the Starter Control (STA) signal while the vehicle is being driven, it determines that there is a malfunction in the STA circuit. The ECM then illuminates the MIL and sets the DTC. This monitor runs when the vehicle is driven at 12.4 mph (20 km/h) for over 20 seconds.

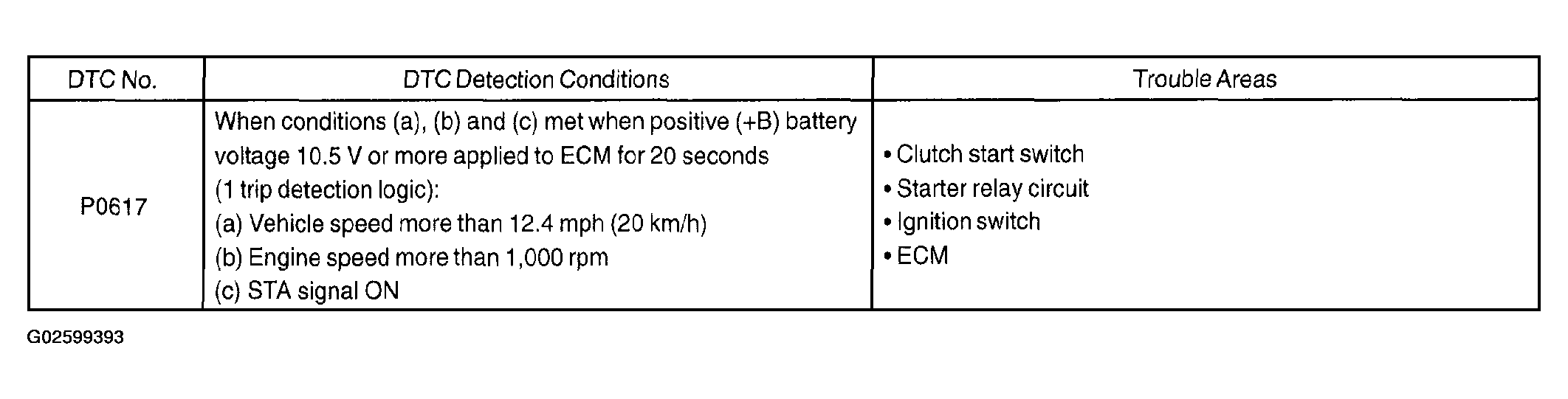

Fig 1: DTC Detection Conditions And Trouble Area
G02599393Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
