OBD II scan tool (excluding hand-held tester):

WARNING: This page is about a different variant/trim than selected.
  1. INSPECT ECM (STA VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the E3 ECM connector.

      Standard:

      ECM (STA VOLTAGE)

      Tester Connections Specified Conditions
      STA (E3-12) - E1 (E3-5) 0 V
    3. Measure the voltage between the terminals of the E3 ECM connector while the engine is cranking.

      Standard:

      ECM (STA VOLTAGE)

      Tester Connections Specified Conditions
      STA (E3-12) - E1 (E3-5) 5.5 V or more

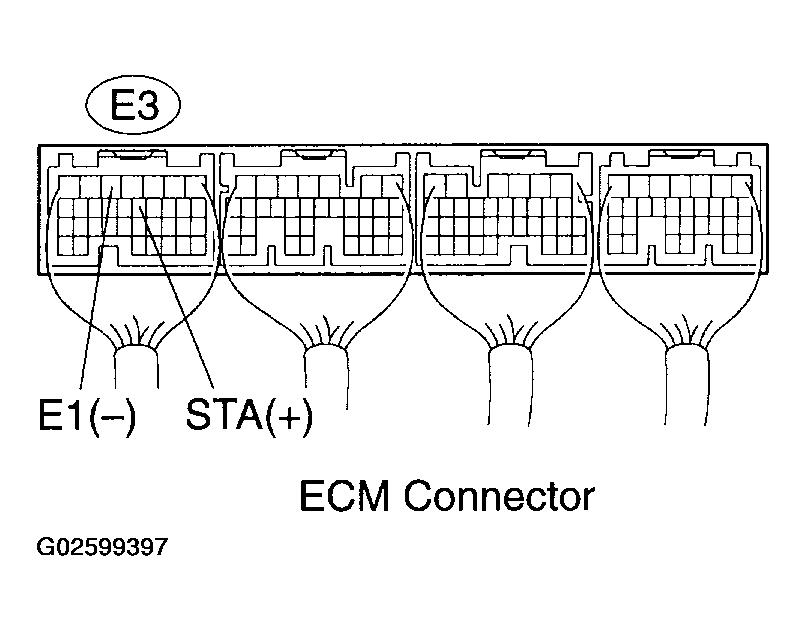

      Fig 1: Inspecting ECM (STA Voltage)
      G02599397Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: REPLACE ECM (See  ECM (1ZZ-FE/2ZZ-GE) REPLACEMENT  )
    2. NG: GO TO NEXT STEP
  2. INSPECT PARK/NEUTRAL POSITION SWITCH OR CLUTCH START SWITCH
    1. Inspect the clutch start switch.
      1. Disconnect the C8 clutch start switch connector.
      2. Check the resistance between the terminals when the switch is ON and OFF.

        Standard:

        PARK/NEUTRAL POSITION SWITCH OR CLUTCH START SWITCH RESISTANCE

        Switch Positions Tester Connections Specified Conditions
        ON (pushed) 1 - 2 Below 1 Ω
        OFF (free) 1 - 2 10 kΩ or higher
      3. Reconnect the clutch start switch connector.
        Fig 2: Inspecting Park/Neutral Position Switch Or Clutch Start Switch
        G02599398Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE PARK/NEUTRAL POSITION SWITCH OR CLUTCH START SWITCH (GO TO NEXT STEP 3 AFTER REPLACEMENT)
    2. OK: GO TO NEXT STEP
  3. INSPECT ECM (STA VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the E3 ECM connector.

      Standard:

      ECM (STA VOLTAGE)

      Tester Connections Specified Conditions
      STA (E3-12) - E1 (E3-5) 0 V
    3. Measure the voltage between the terminals of the E3 ECM connector when the engine is cranked.

      Standard:

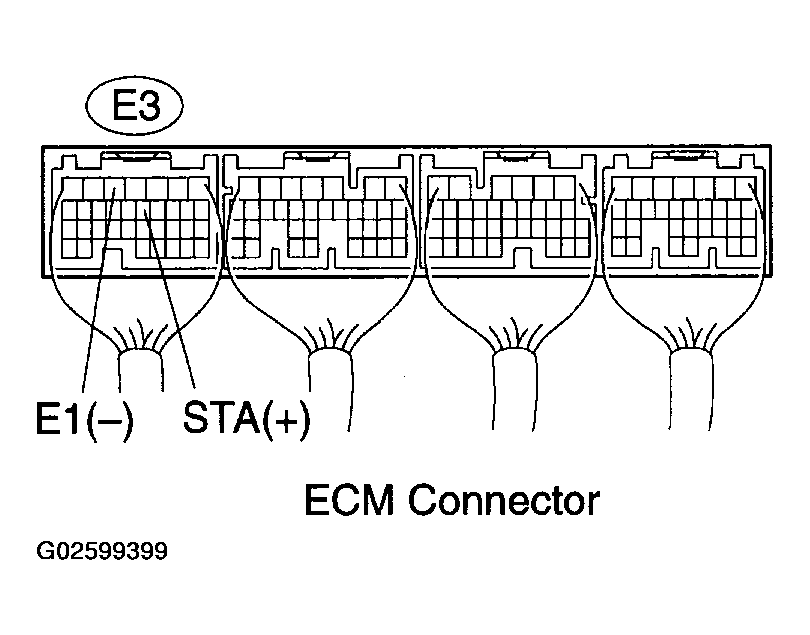

      Fig 3: Inspecting ECM (STA Voltage)
      G02599399Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      ECM (STA VOLTAGE)

      Tester Connections Specified Conditions
      STA (E3-12) - E1 (E3-5) 5.5 V or more
    1. OK: SYSTEM OK
    2. NG: GO TO NEXT STEP
  4. INSPECT IGNITION OR STARTER SWITCH ASSY
    1. Disconnect the I10 ignition switch connector.
    2. Check the resistance.
      IGNITION OR STARTER SWITCH ASSY RESISTANCE

      Switch Positions Tester Connections Specified Conditions
      LOCK All Terminals 10 kΩ or higher
      ACC 1-3 Below 1 Ω
      ON 1-2, 1-3, 2-3, 5-6 Below 1 Ω
      START 1-2, 4-5, 4-6, 5-6 Below 1 Ω
    3. Reconnect the ignition switch connector.
      Fig 4: Identifying Terminals Of I10 Ignition Switch Connector
      G02599400Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG: REPLACE IGNITION OR STARTER SWITCH ASSY (GO TO NEXT STEP 5 AFTER REPLACEMENT)
    2. OK: GO TO NEXT STEP
  5. INSPECT ECM (STA VOLTAGE)
    1. Turn the ignition switch to ON.
    2. Measure the voltage between the terminals of the E3 ECM connector.

      Standard:

      ECM (STA VOLTAGE)

      Tester Connections Specified Conditions
      STA (E3-12) - E1 (E3-5) 0 V
    3. Measure the voltage between the terminals of the E3 ECM connector when the engine is cranked.

      Standard:

      ECM (STA VOLTAGE)

      Tester Connections Specified Conditions
      STA (E3-12) - E1 (E3-5) 5.5 V or more

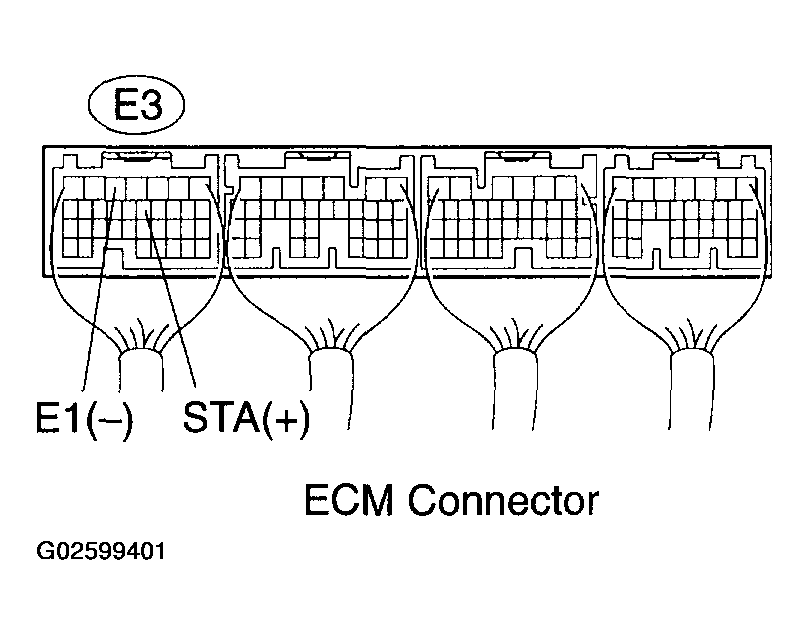

      Fig 5: Inspecting ECM (STA Voltage)
      G02599401Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK: SYSTEM OK
    2. NG: GO TO NEXT STEP

      REPAIR OR REPLACE HARNESS OR CONNECTOR
