DTC P0505: Idle Air Control System, DTC P0511 Idle Air Control Circuit: Wiring Diagram

WARNING: This page is about a different variant/trim than selected.

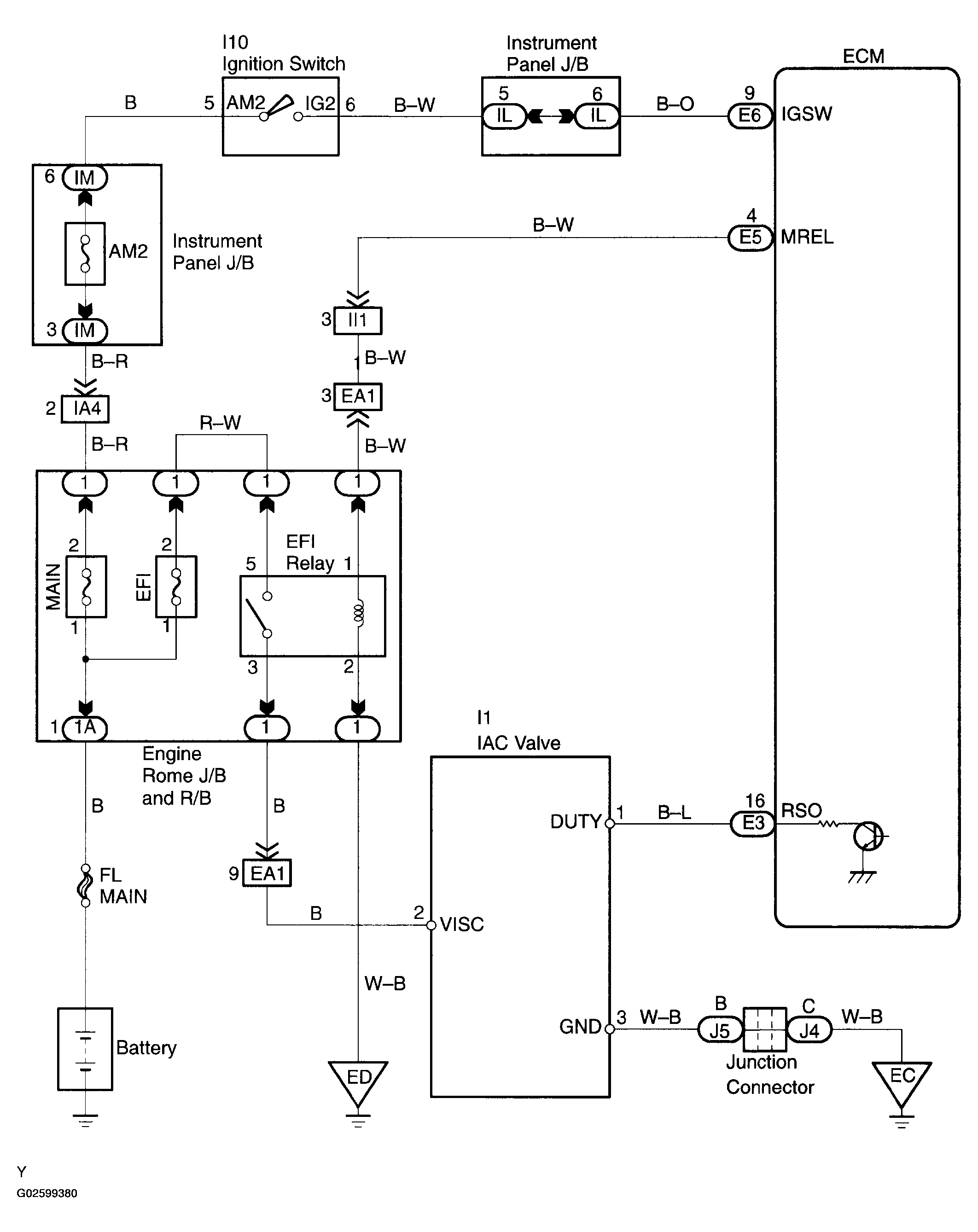

Fig 1: Wiring Diagram - Idle Air Control System
G02599380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
