Diagnostic Trouble Codes Summary

WARNING: This page is about a different variant/trim than selected.

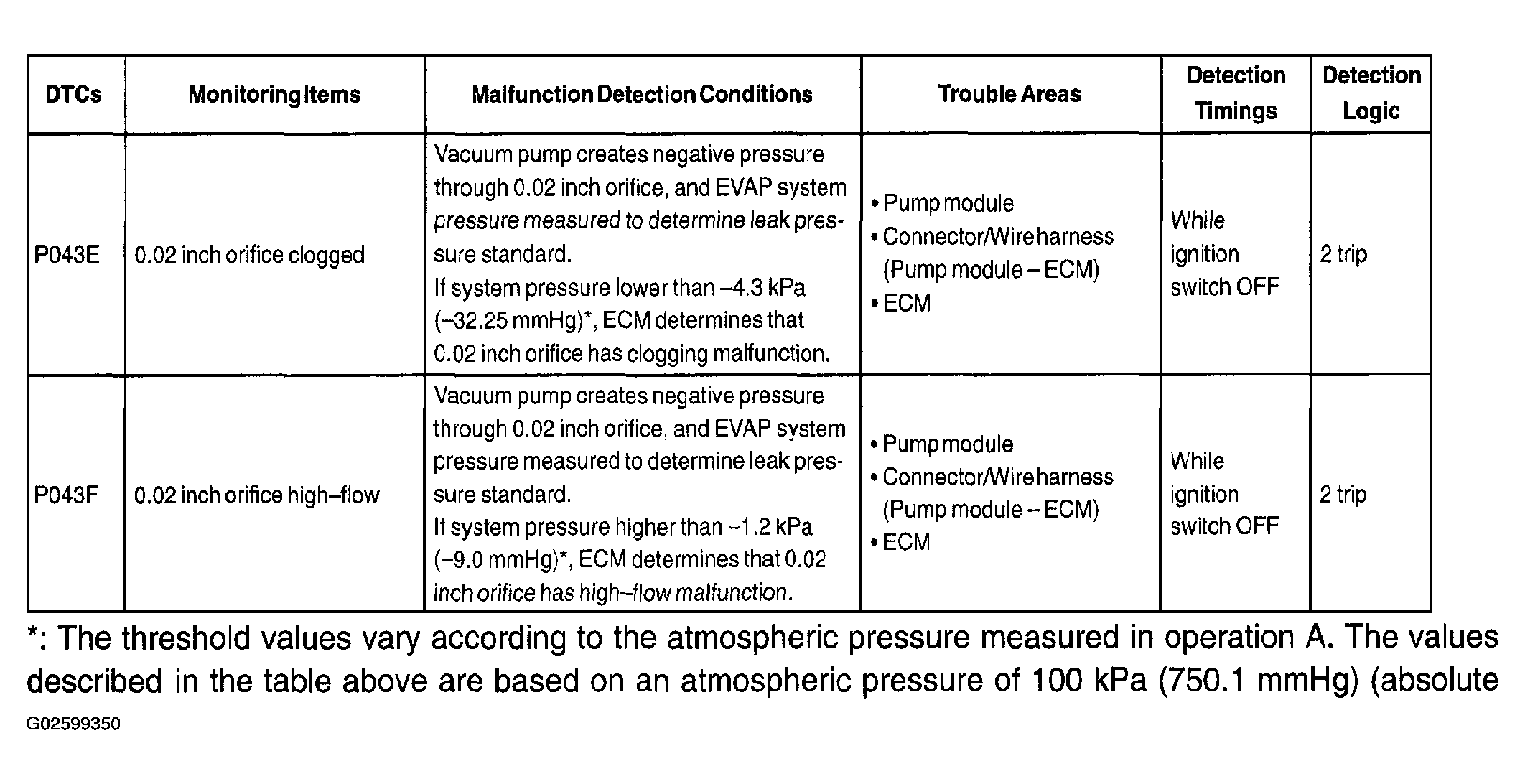

Fig 1: DTC Summary Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

*: The threshold values vary according to the atmospheric pressure measured in operation A. The values described in the table above are based on an atmospheric pressure of 100 kPa (750.1 mmHg) (absolute pressure)

HINT:

The 0.02 inch orifice is located inside the pump module.
